1P 16AX 1-way switch carbon matt - 09001.CM

Pdf

09001.CM
Wiring devices / Traditional wiring devices / NEVE UP / Devices

1P 16AX 1-way switch carbon matt
1P 1-way switch 16 AX 250 V~, Carbon Matt. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

您可能也感兴趣

图纸

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
7016
Label space/information surface
Yes
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No

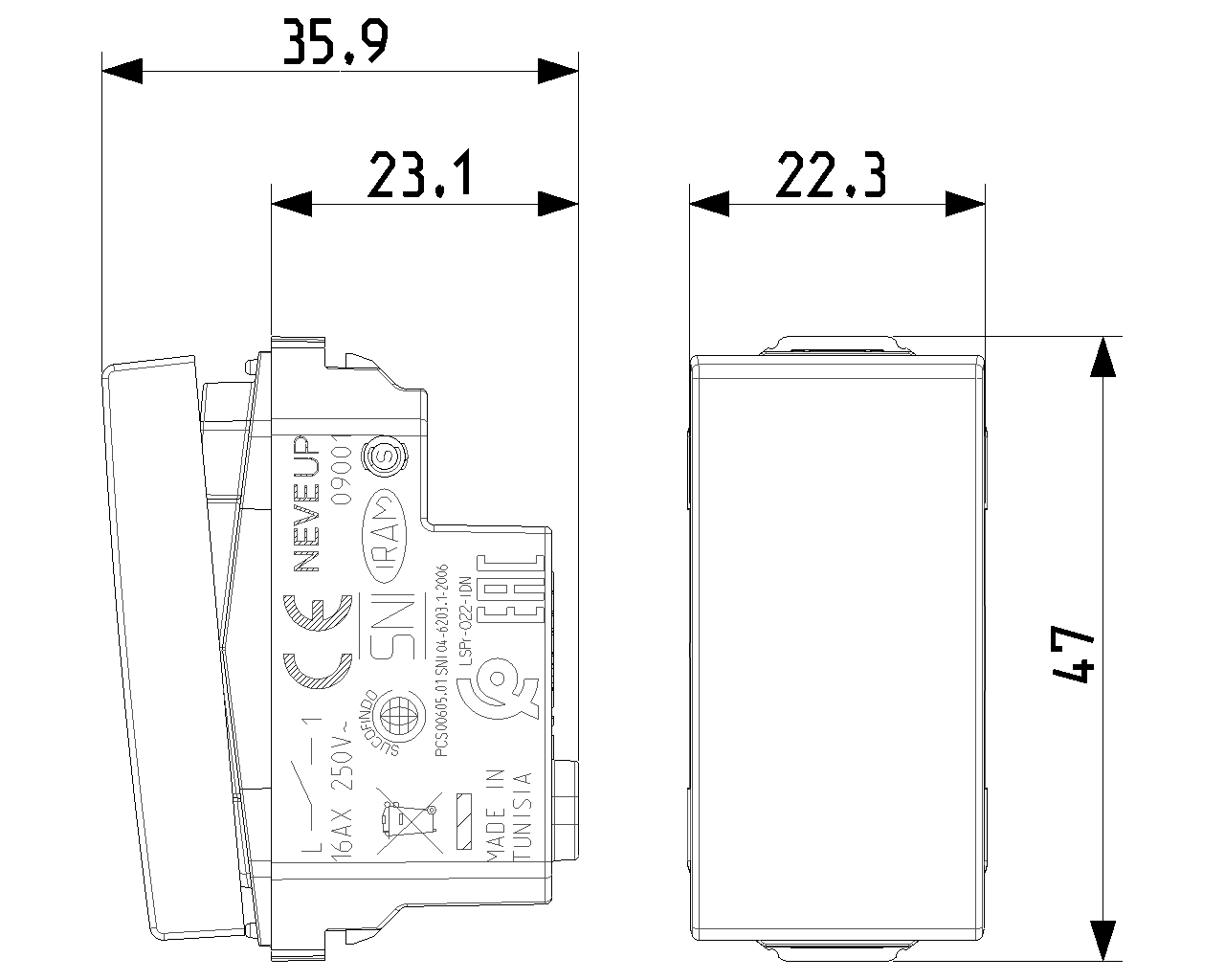

Device width
22,30 mm
Device height
47,00 mm
Device depth
35,90 mm
Built-in depth
23,10 mm

00. CE Marking - EU

13. SNI - Indonesia

29. QCERT - Colombia

37. Marking - Morocco

37. Marking - Morocco

43. UKCA mark - Great Britain

最小订单数量: 50 NR

条形码

Barcode Qty 1 NR
8007352657649
1 NR
4.1x2.8x5.3 [cm]
23.2 [g]
Barcode Qty 50 NR
8007352657656
50 NR
21.4x11.6x14.2 [cm]
1,244.8 [g]
Barcode Qty 500 NR
8007352657663
500 NR
57.5x22.5x30 [cm]
12,702 [g]
