Vimar - 09005.2.CM - 1P 16AX 2-way switch 2M carbon matt

09005.2.CM
Wiring devices / Traditional wiring devices / NEVE UP / Devices

1P 16AX 2-way switch 2M carbon matt
1P 16 AX 250 V~ 2-way switch, Carbon Matt - 2 modules. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

您可能也感兴趣

09005.CM - 1P 16AX 2-way switch carbon matt

09001.2.CM - 1P 16AX 1-way switch 2M carbon matt

09013.2.CM - 1P 16AX reversing switch 2M carbon matt

09008.2.CM - 1P NO 10A 2M push button carbon matt

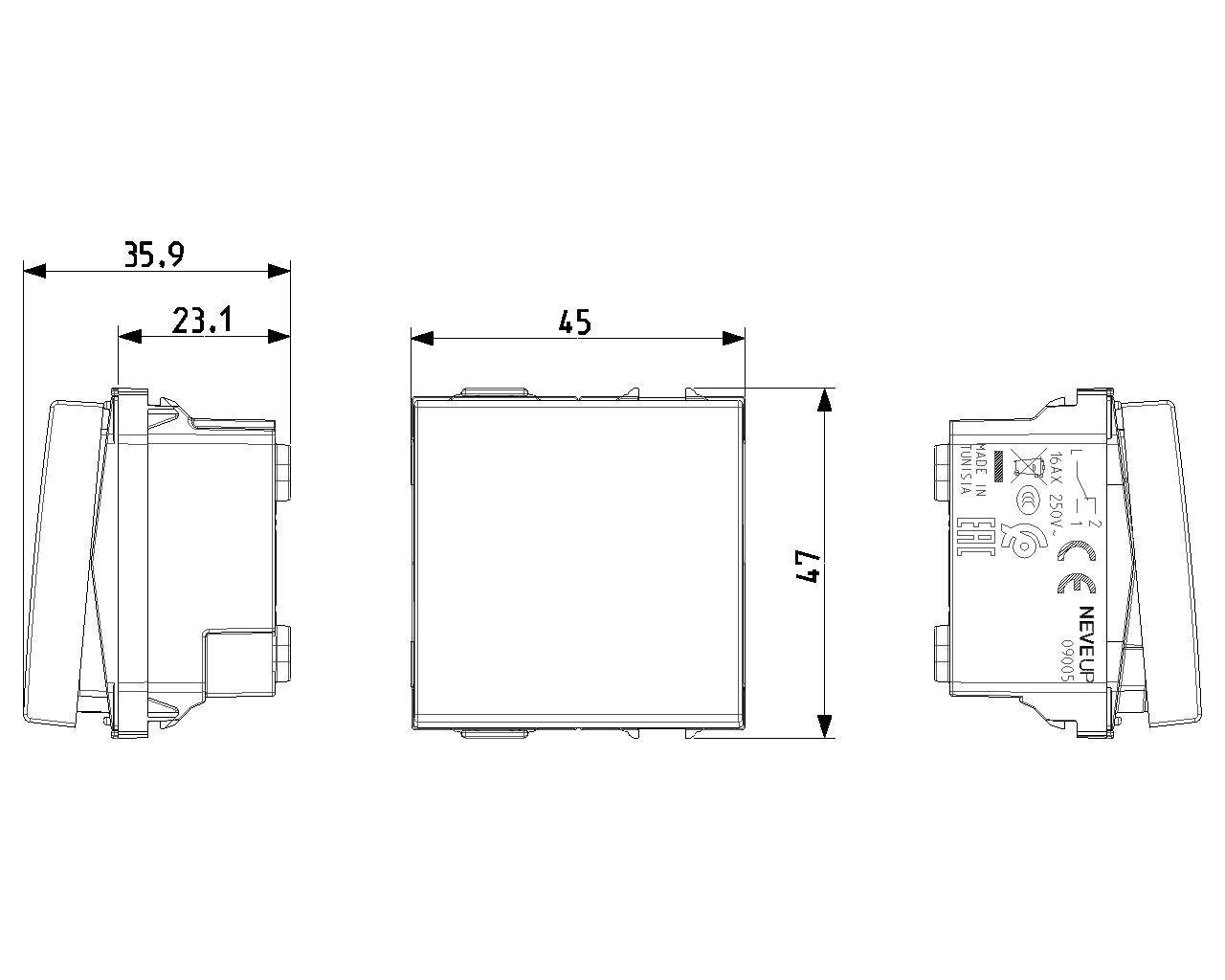

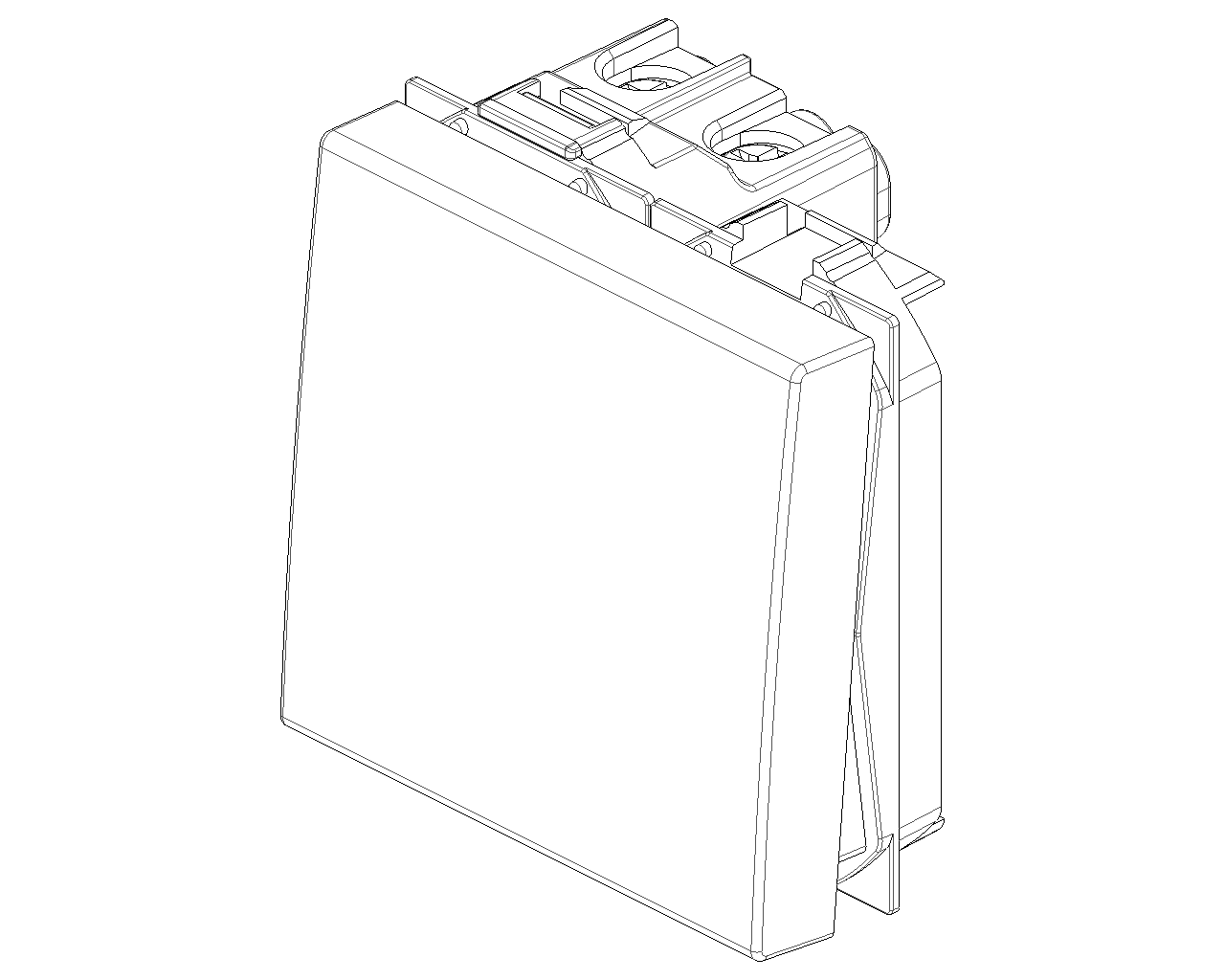

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Two-way switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
2

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Lacquered

Surface finishing
Matt

Colour
Anthracite

RAL-number (similar)
7016

Label space/information surface
Yes

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Nominal voltage
250 V

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Device width
45,00 mm

Device height
47,00 mm

Device depth
35,90 mm

Built-in depth
23,10 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

13. SNI - Indonesia

15. CCC - China

29. QCERT - Colombia

29. QCERT - Colombia

37. Marking - Morocco

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

最小订单数量: 20 NR

条形码

8007352657885

1 NR

5.1x4.3x5.3 [cm]

32.4 [g]

8007352657892

20 NR

26.9x11.6x9 [cm]

745.8 [g]

8007352657908

240 NR

38x28.5x35.5 [cm]

9,468 [g]
