Vimar - 09008.0.250 - 1P NO 10A push button mechan.+pilot 250V

09008.0.250

Neve Up / Devices / Basic devices

1P NO 10A push button mechan.+pilot 250V

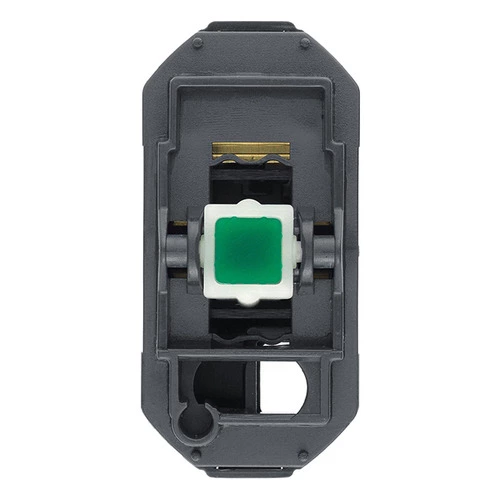

1P NO 10 A 250 V~ push button mechanism, with white indicator light, to be completed with 1-2 module button

产品状态
3 - Active

您可能也感兴趣

09008.0.250 - 1P NO 10A push button mechan.+pilot 250V

09021.N.CM - Button 1M neutral carbon matt

09022.N - Button 2M neutral white

09022.N.CM - Button 2M neutral carbon matt

09021.L - Button 1M light symbol white

09021.L.CM - Button 1M light symbol carbon matt

09021.C - Button 1M bell symbol white

09021.C.CM - Button 1M bell symbol carbon matt

09021.S - Button 1M switch ON symbol white

09021.S.CM - Button 1M switch ON symbol carbon matt

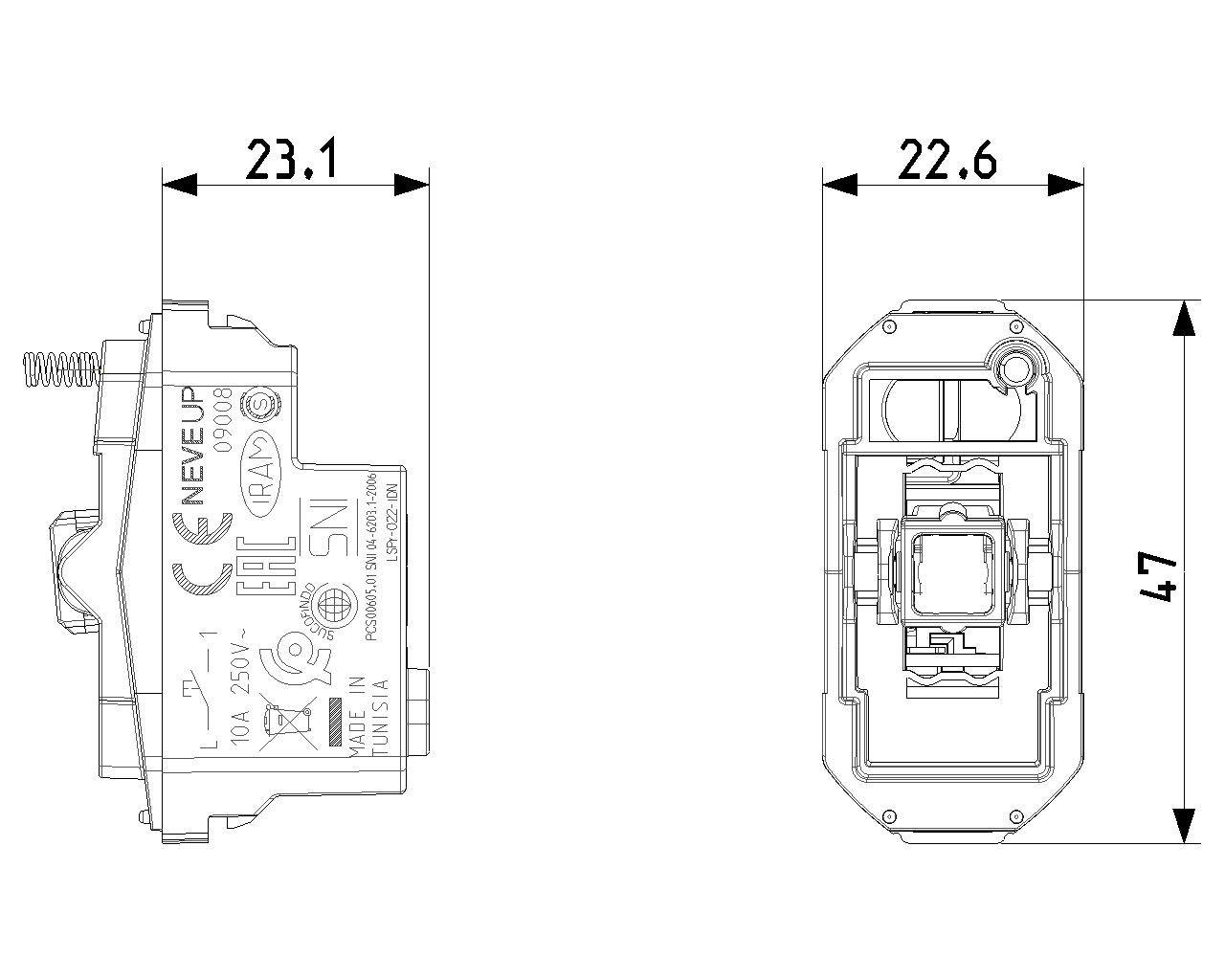

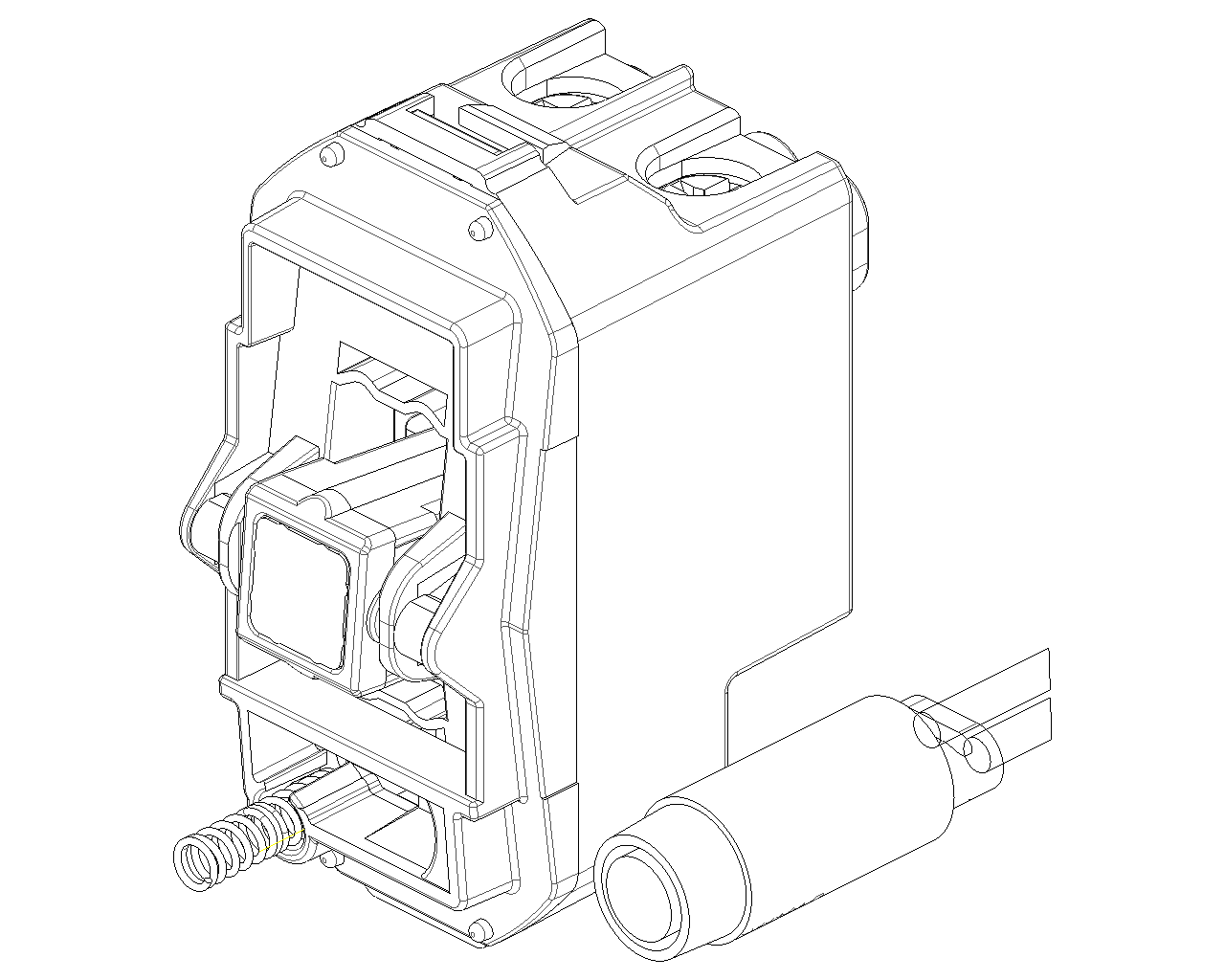

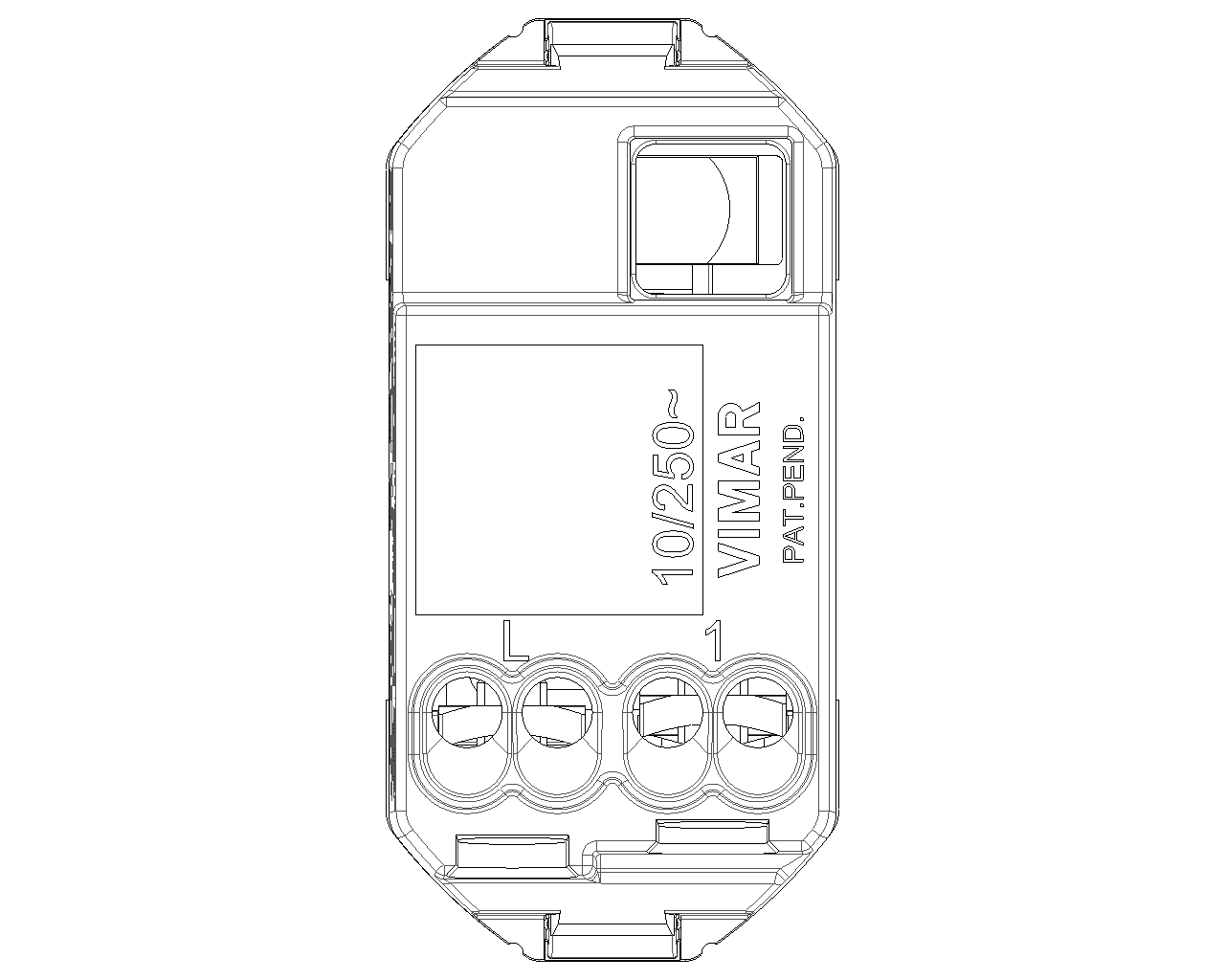

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Push-switch button

Assembly arrangement
Modular device for domestic switching devices

Model
Single push button

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
1

Number of poles
1

Nominal voltage
250 v

Rated current
10,00 A

Feedback-signal contact
No

Mounting method
Flush mounted (plaster)

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Anti-bacterial treatment
No

Surface protection
Untreated

Surface finishing
Glossy

Colour
White

RAL-number (similar)
9003

Transparent
No

Label space/information surface
Yes

Width of device
22,60 mm

Height of device
47,00 mm

Depth of device
35,10 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

15. CCC - China

29. QCERT - Colombia

29. QCERT - Colombia

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

最小订单数量: 50 NR

条形码

8007352658011

1 NR

4.1x2.8x5.3 [cm]

23.6 [g]

8007352658028

50 NR

21.4x11.6x14.2 [cm]

1,270 [g]

8007352658035

500 NR

57.5x22.5x30 [cm]

13,000 [g]
