TV-RD-SAT through-line out.10dB 2outs w - 09310.10

Pdf
Vimar - 09310.10 - TV-RD-SAT through-line out.10dB 2outs w
Vimar - 09310.10 - TV-RD-SAT through-line out.10dB 2outs w

09310.10
Wiring devices / Traditional wiring devices / NEVE UP / Devices

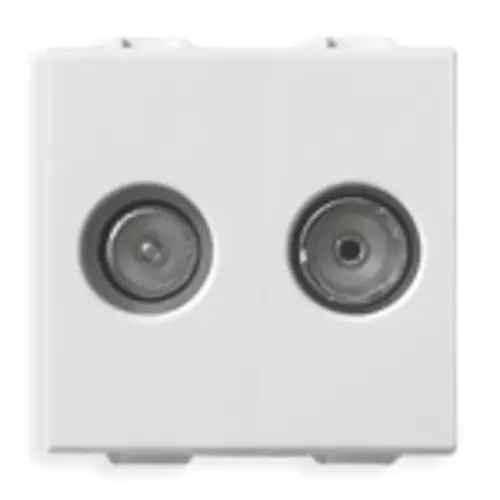

TV-RD-SAT through-line out.10dB 2outs w
Coaxial TV-RD-SAT 5-2400 MHz socket outlet, through-line, 2 outputs with IEC 60169-2 male and female connectors, connection attenuation 10 dB, white - 2 modules

产品状态
2 - Will be discontinued

Class group
Antenna and satellite technique
Class
Antenna socket box
Model
TWIN end socket
Cover
None
Tap loss at 860 MHz
11,20 dB
Tap loss at 2150 MHz
12,00 dB
Number of outlets
2
Through loss at 860 MHz
2,00 dB
Through loss at 2150 MHz
2,80 dB
Suitable for remote power supply
No
Type of fastening
Snap mounting (engagement)
Colour
White
RAL-number (similar)
9003
Material
Plastic

37. Marking - Morocco

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352305120
1 NR
5.1x4.3x5.3 [cm]
96 [g]
Barcode Qty 10 NR
8007352305137
10 NR
26.9x11.6x4.9 [cm]
1,028.73 [g]
Barcode Qty 200 NR
8007352305144
200 NR
47.5x27x29 [cm]
21,082.67 [g]
