Vimar - 09607 - Vertical frame 2centralM+screws
Vimar - 09607 - Vertical frame 2centralM+screws

09607
Wiring devices / Traditional wiring devices / NEVE UP / Mounting frames

Vertical frame 2centralM+screws
2-central-module frame for vertical mounting, with screws, for 3-module mounting boxes or boxes with 60 mm fixing centres

产品状态
3 - Active

您可能也感兴趣

07935.1
07935.1 - Screw for frame fixing - 24mm
07937
07937 - Screw for frame fixing - 35mm
07939
07939 - Screw for frame fixing - 50 mm
09613
09613 - Frame 3M +screws

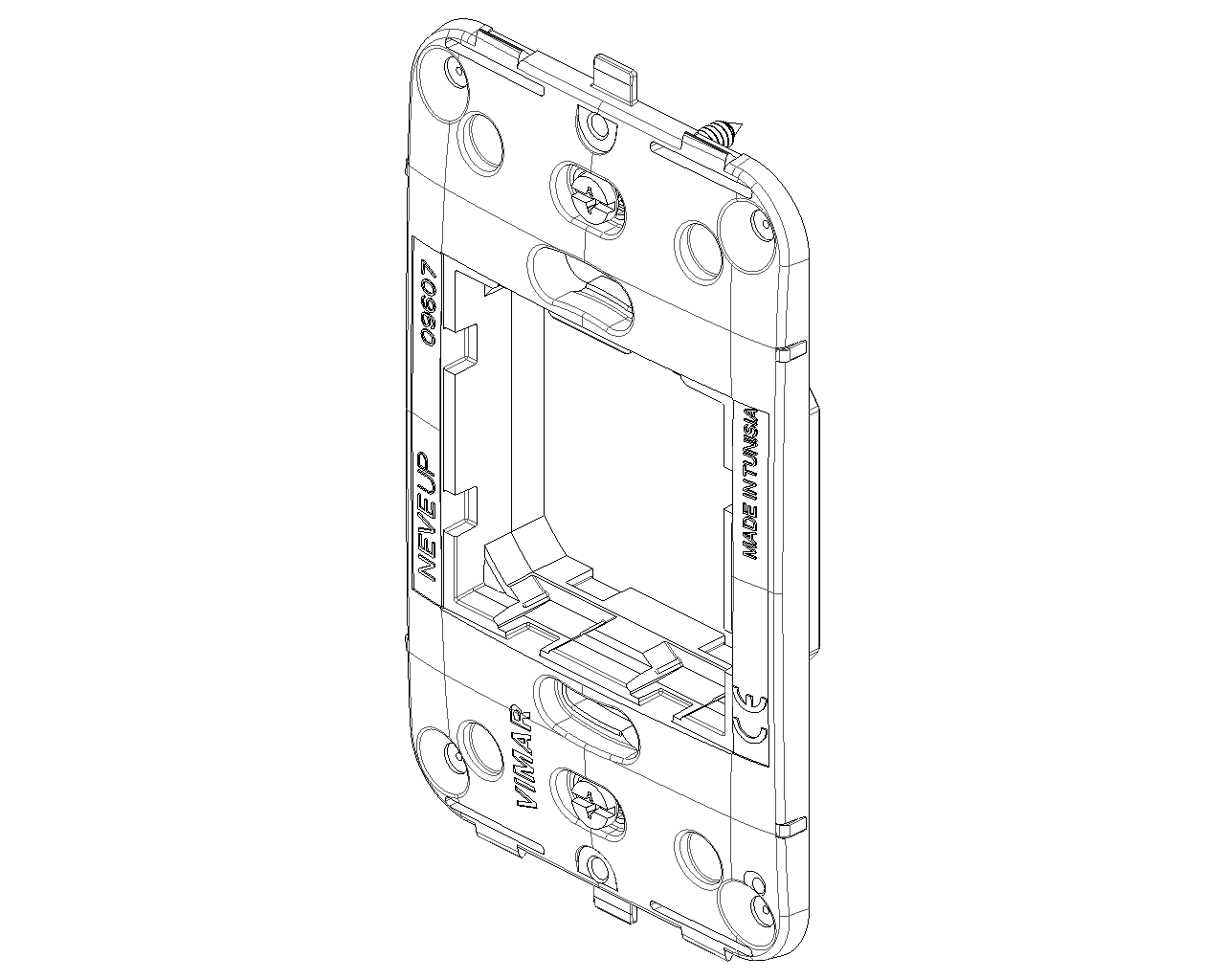

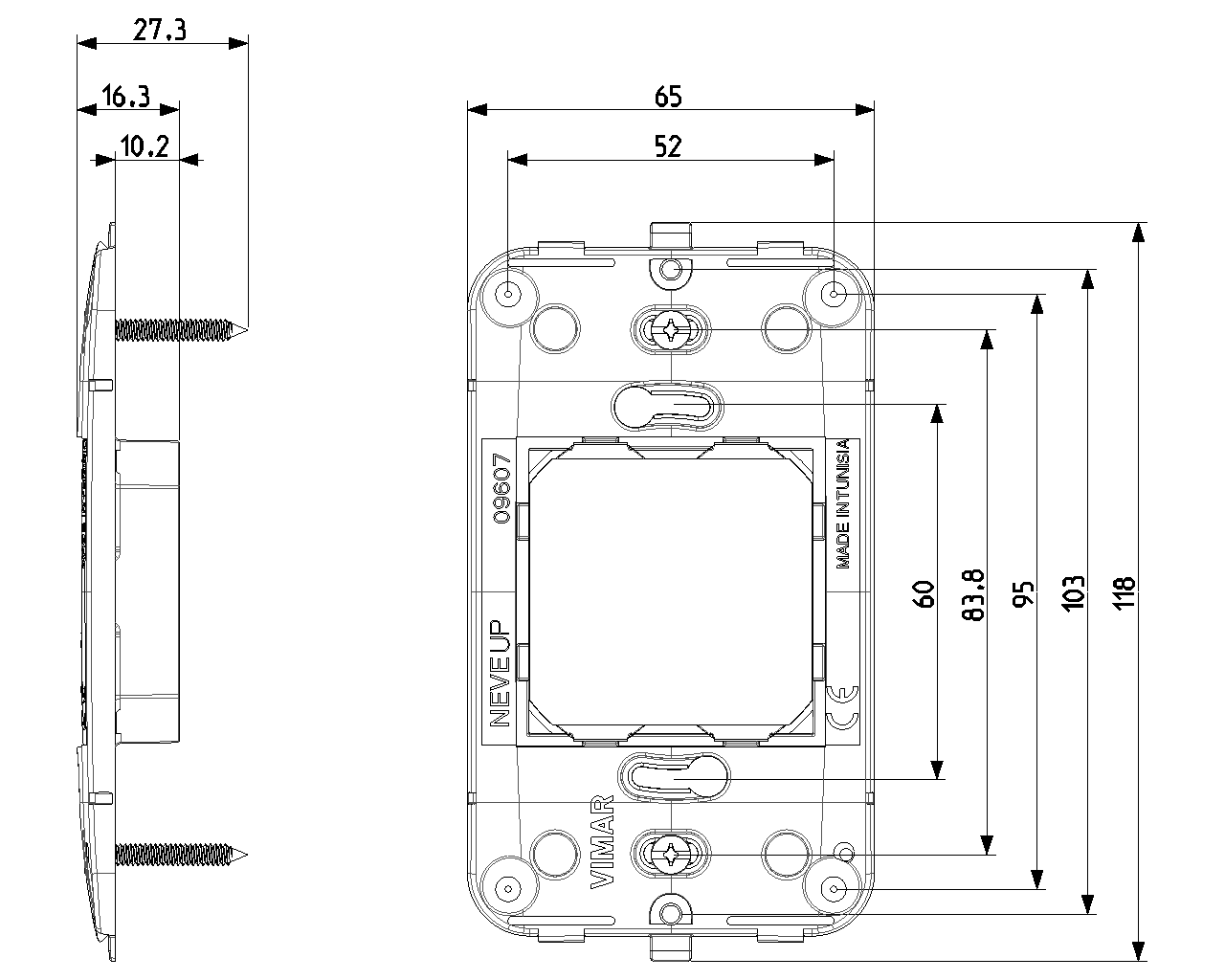

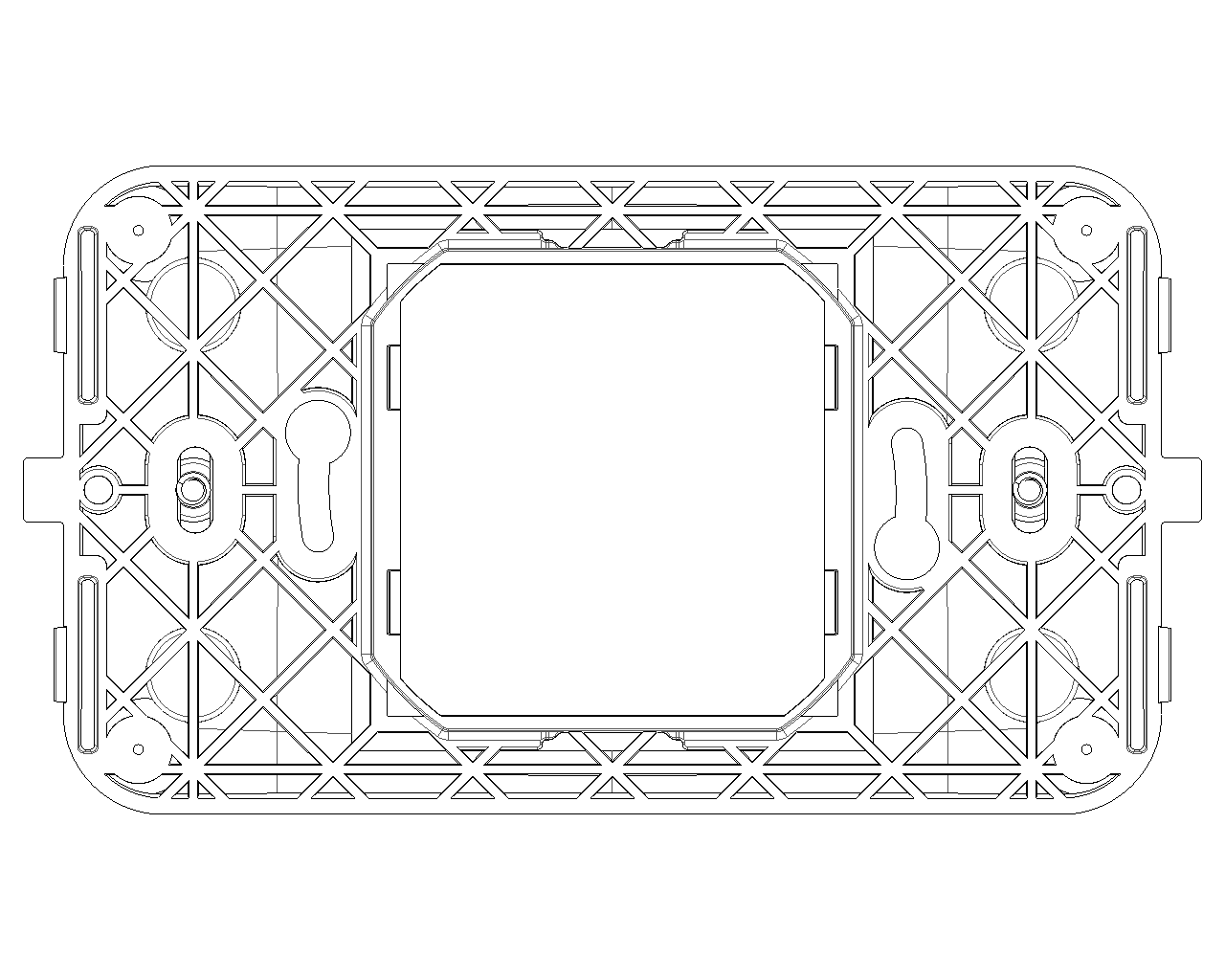

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with screw
Mounting method of the module inserts
Front side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
Yes
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

29. QCERT - Colombia

43. UKCA mark - Great Britain

96. Electrotechnical expert

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352391574
1 NR
11.8x6.5x1.7 [cm]
23.31 [g]
Barcode Qty 10 NR
8007352391581
10 NR
11.8x6.5x17 [cm]
233.1 [g]
Barcode Qty 200 NR
8007352391598
200 NR
35x33.5x24.5 [cm]
4,662 [g]
