1P 10AX 1-way switch Silver - 14000.SL

14000.SL

Plana Silver / Devices / Basic devices

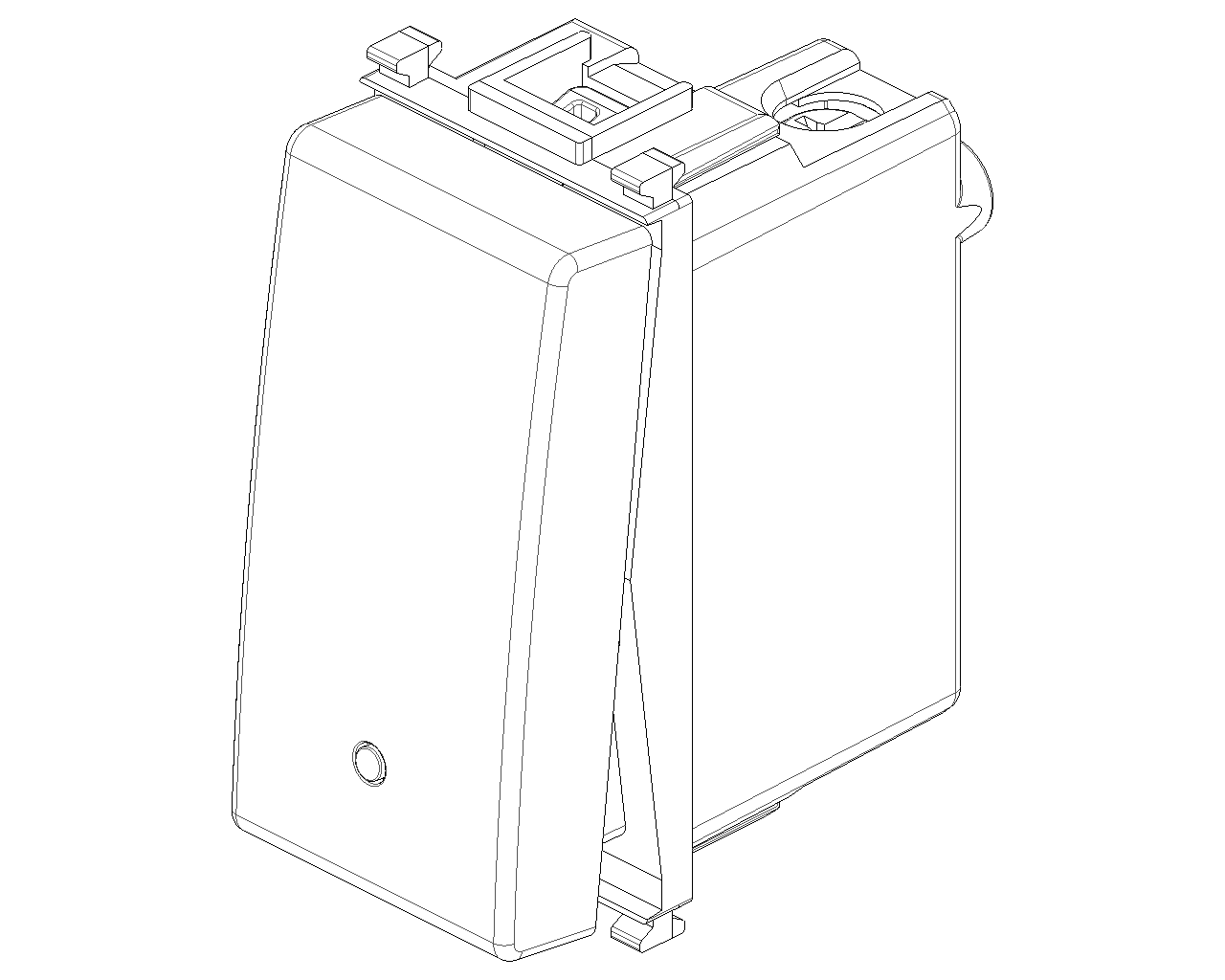

1P 10AX 1-way switch Silver
1P 10 AX 250 V~ 1-way switch, lightable, replaceable button, Silver. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

Class group
Domestic switching devices
Class
Switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module syst
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (akin)
9006
Label space/information surfac
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
Not included
Suitable for degree of protect
IP40
Nominal voltage
250 v
Rated current
10 A
Feedback-signal contact
No

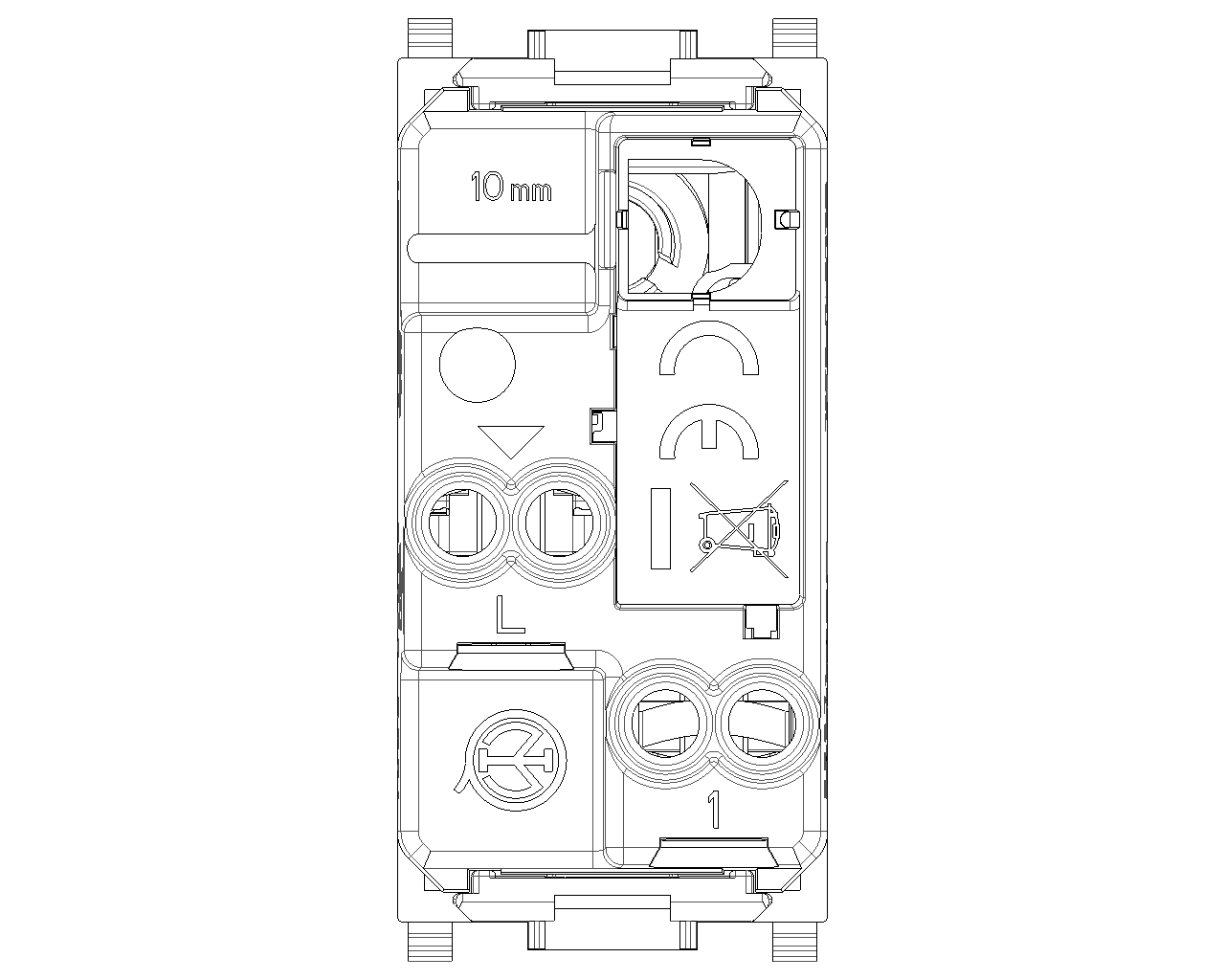

Connection type
Screwed terminal
Washing machine switch
No

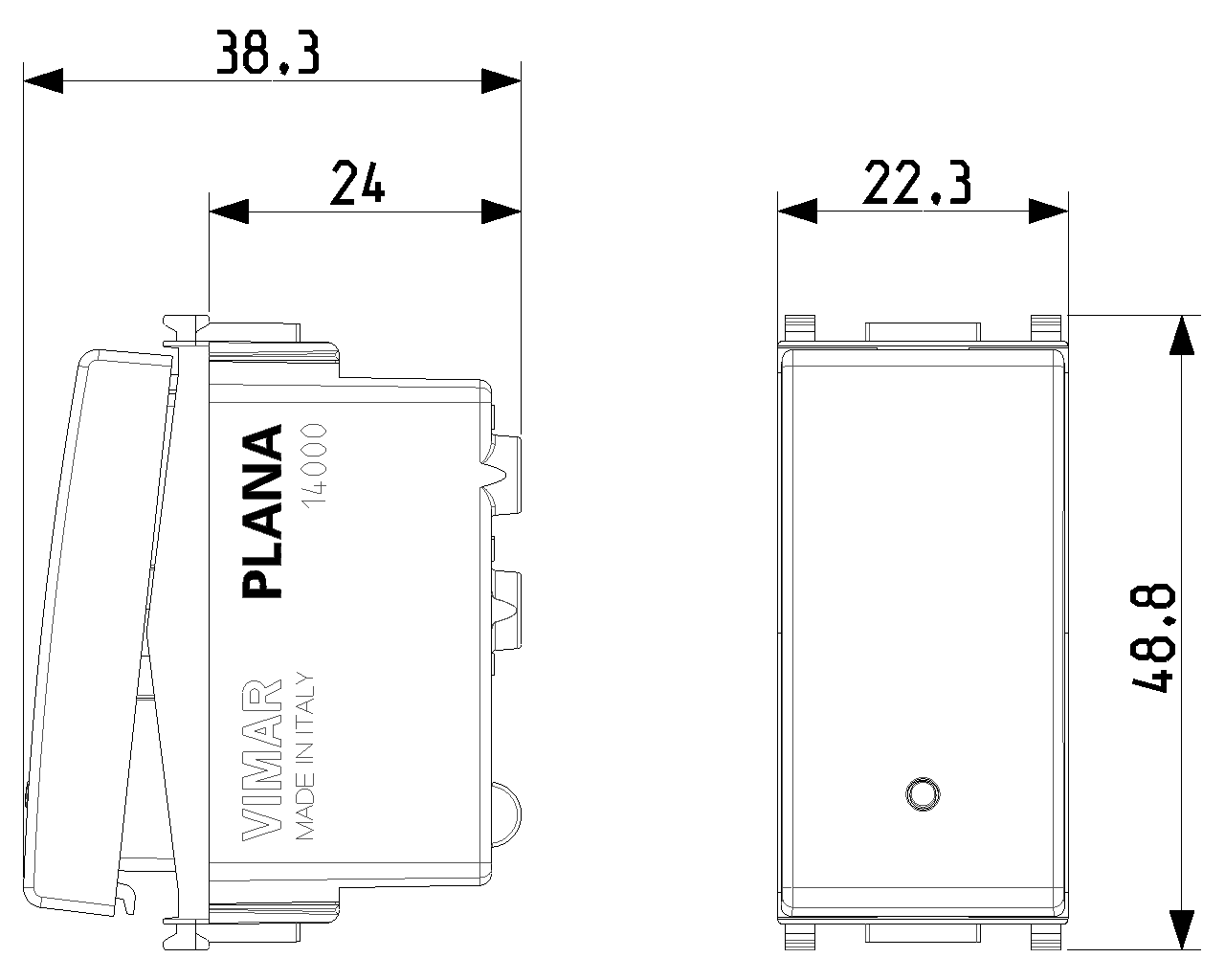

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
38,40 mm
Built-in depth
24,00 mm
最小订单数量: 50 NR

条形码

8007352319035
1 NR
4.1x2.8x5.3 [cm]
24.8 [g]
8007352319042
50 NR
21.6x11.6x14.3 [cm]
1,336 [g]
8007352351981
500 NR
57.5x22.5x30 [cm]
13,856 [g]
