Three 1P 20AX 1-way switches Silver - 14003.SL

Pdf

14003.SL
Wiring devices / Traditional wiring devices / PLANA / Devices

Three 1P 20AX 1-way switches Silver
Three 1P 20 AX 250 V~ 1-way switches, lightable, Silver - 2 modules. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

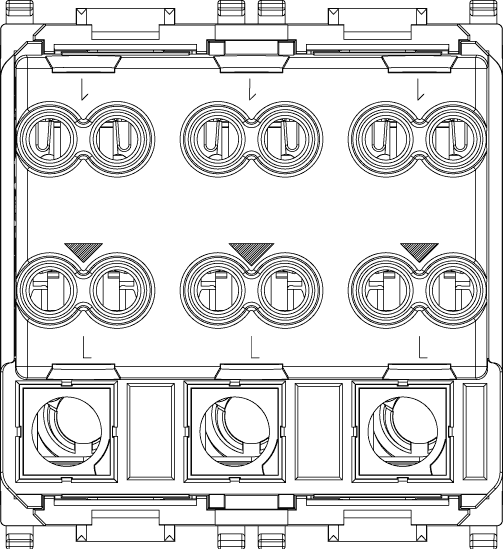

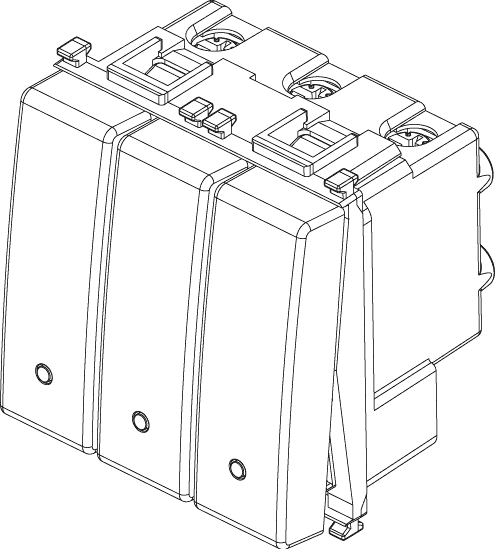

图纸

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
3
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
20,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No

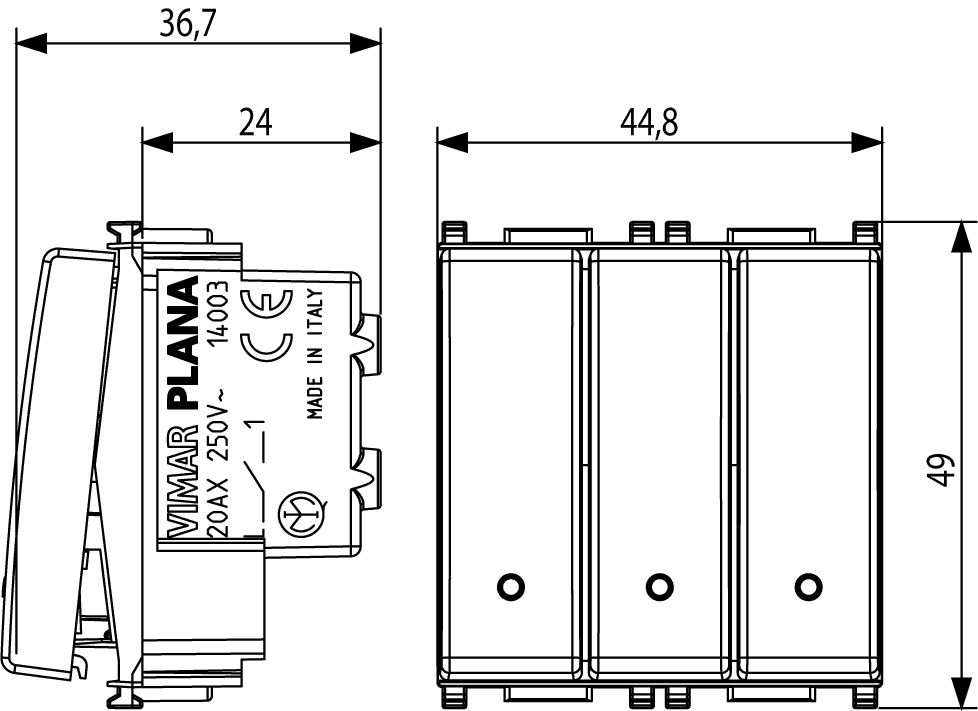

Device width
44,80 mm
Device height
49,00 mm
Device depth
38,40 mm
Built-in depth
24,00 mm

00. CE Marking - EU

13. SNI - Indonesia

19. NOM - Mexico

31. TISI - Thailand

37. Marking - Morocco

43. UKCA mark - Great Britain

最小订单数量: 20 NR

条形码

Barcode Qty 1 NR
8007352403963
1 NR
5.1x4.3x5.3 [cm]
58.2 [g]
Barcode Qty 20 NR
8007352403970
20 NR
26.9x11.6x9 [cm]
1,244 [g]
