14013.2.SL
Wiring devices / Traditional wiring devices / PLANA / Devices
1P 16AX reversing switch 2M Silver
1P 16 AX 250 V~ reversing switch, lightable, replaceable button, Silver - 2 modules. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)
产品状态
3 - Active

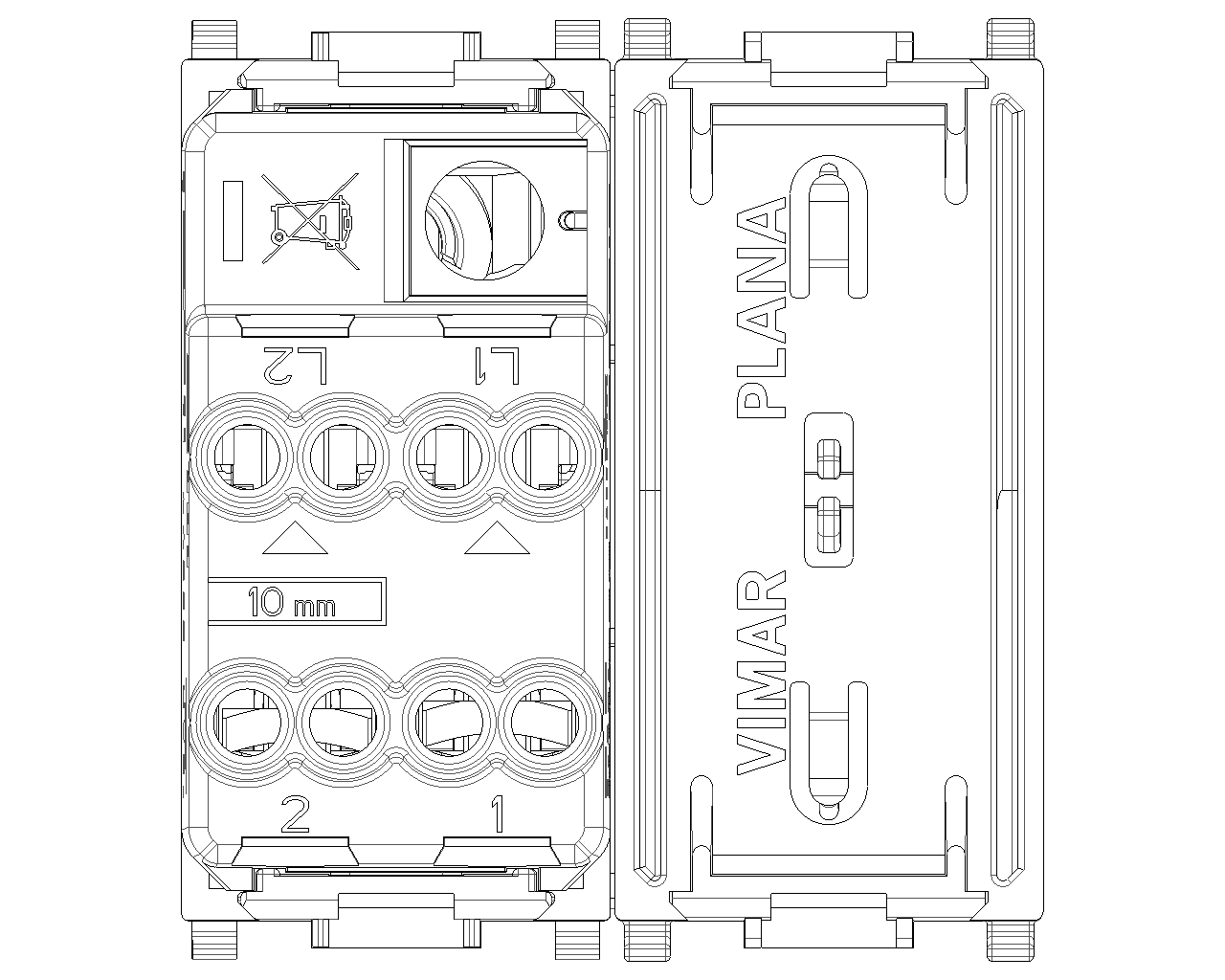

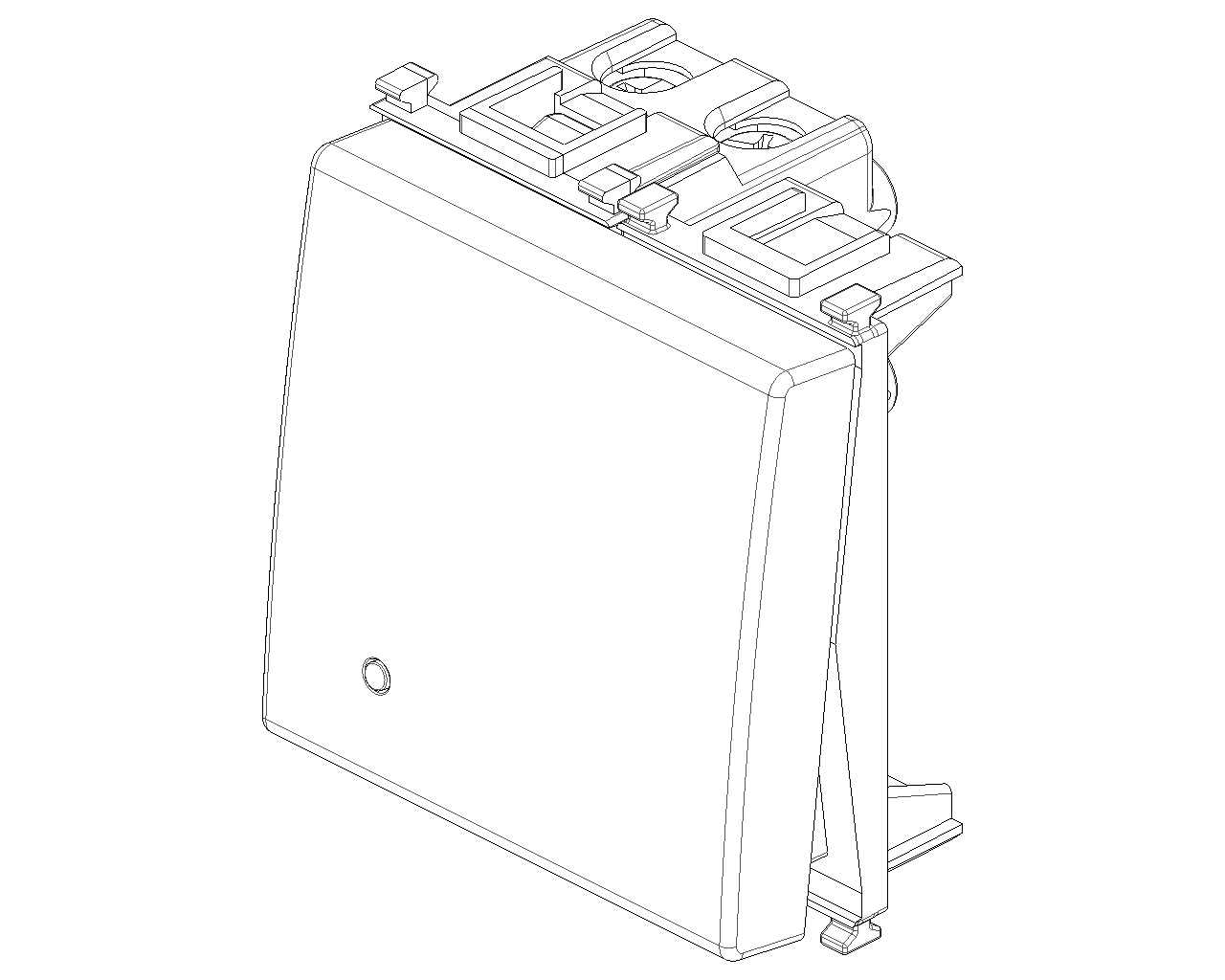

图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
Intermediate switch
Intermediate switch
Method of operation
Rocker/button
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
2
2
Push button switch
Yes
Yes
Number of rockers
1
1
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
With mounting plate
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Surface protection
Lacquered
Lacquered
Surface finishing
Glossy
Glossy
Colour
Silver
Silver
RAL-number (similar)
9006
9006
Label space/information surface
Yes
Yes
Lighting
Optional
Optional
Function lighting
Control and orientation
Control and orientation
Type of lighting
LED exchangeable
LED exchangeable
Suitable for degree of protection (IP)
IP40
IP40
Nominal voltage
250 V
250 V
Rated current
16,00 A
16,00 A
Monitoring contact
No
No
Connection type
Screwed terminal
Screwed terminal
Washing machine switch
No
No

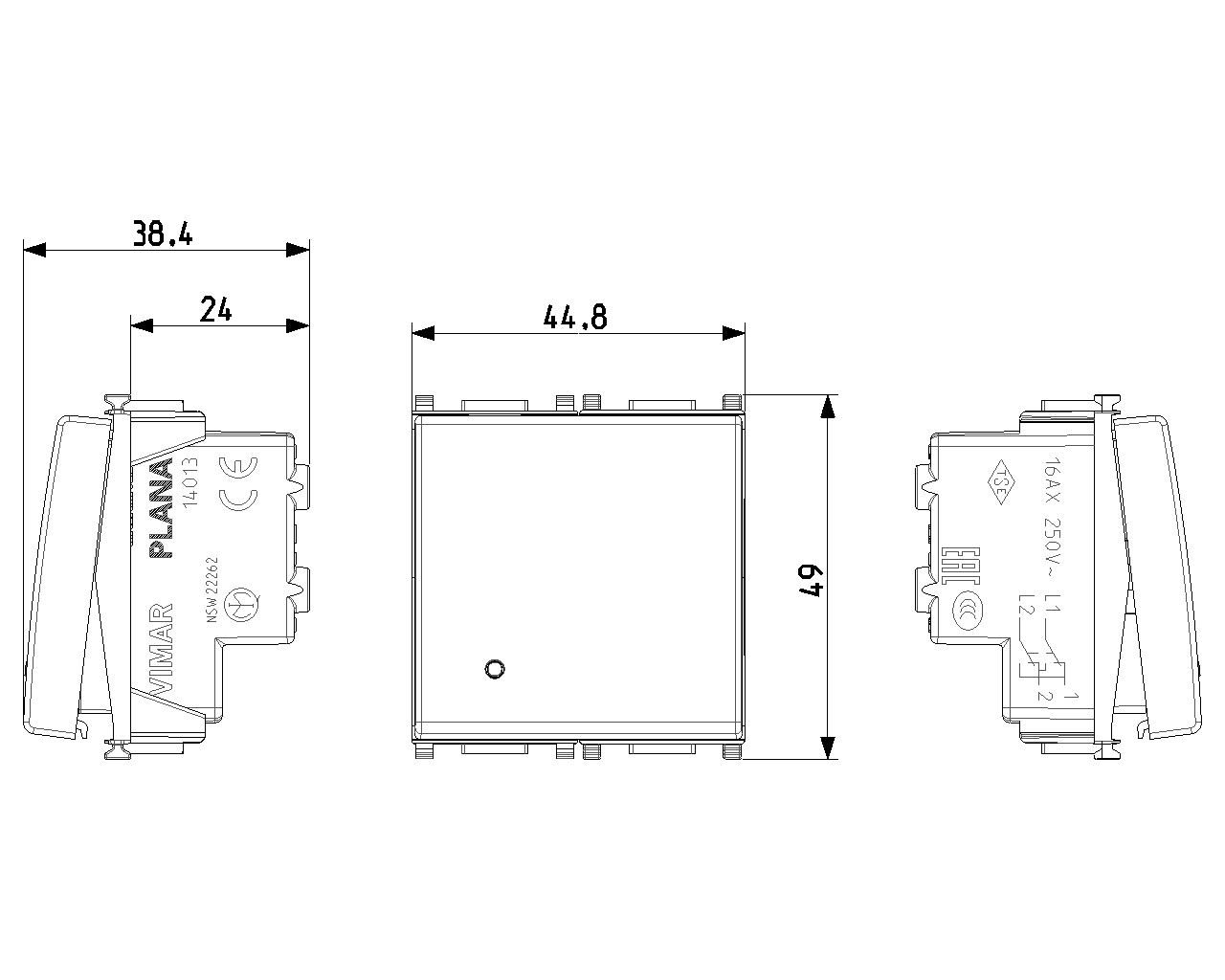

Device width
44,80 mm
44,80 mm
Device height
49,00 mm
49,00 mm
Device depth
38,70 mm
38,70 mm
Built-in depth
24,00 mm
24,00 mm
00. CE Marking - EU
01. IMQ - Italy
13. SNI-MGI - Indonesia
14. TSE - Turkey
15. CCC - China
19. NOM - Mexico
29. QCERT - Colombia
31. TISI - Thailand
37. Marking - Morocco
最小订单数量: 20 NR
条形码
8007352320192
1 NR
5.1x4.3x5.3 [cm]
44.2 [g]
8007352320208
20 NR
26.9x11.6x9 [cm]
961.33 [g]
8007352717879
240 NR
38x28.5x35.5 [cm]
11,536.8 [g]
