TV-RD-SAT through-line outlet 2outs Silv代码 14302.10.SL

14302.10.SL

Wiring devices / Traditional wiring devices / PLANA / Devices

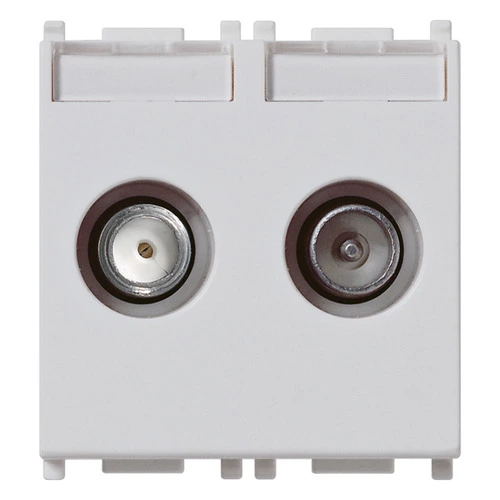

TV-RD-SAT through-line outlet 2outs Silv

Coaxial TV-RD-SAT 5-2400 MHz socket outlet, through-line, demix, 2 outputs with male (TV-RD) and female F-type (SAT) connectors, connection attenuation 10 dB, Silver - 2 modules

产品状态

2 - Will be discontinued

• 文件与下载
• ETIM技术数据
• 证书
• 供应数据

单, 说明书, 文档

• Multilanguage instructions sheet (905 kb)

---

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Antenna and satellite technique

Class
Antenna socket box

Model
TWIN end socket

Tap loss at 860 MHz
11,20 dB

Tap loss at 2150 MHz
12,00 dB

Number of outlets
2

Through loss at 860 MHz
2,00 dB

Through loss at 2150 MHz
2,80 dB

Suitable for remote power supply
No

Type of fastening
Snap mounting (engagement)

Colour
Silver

RAL-number (similar)
9006

Surface protection
Lacquered

Material
Plastic

Device width
44,80 mm

Device height
49,00 mm

Device depth
39,20 mm

00. CE Marking - EU

37. Marking - Morocco

37. Marking - Morocco

99. WEEE Directive

最小订单数量: 10 NR

---

条形码

8007352400832

1 NR

5.1x4.3x5.3 [cm]

80.8 [g]

8007352400993

10 NR

26.9x11.6x4.9 [cm]

872.6 [g]
