Polarized 2P 6A 24A SELV outlet white

Pdf

14332
Wiring devices / Traditional wiring devices / PLANA / Devices

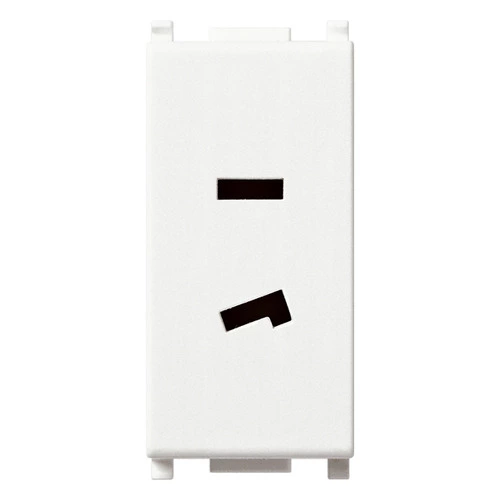

Polarized 2P 6A 24A SELV outlet white
Polarized 2P 6 A 24 V (SELV) socket outlet for plug 01099, white

产品状态
2 - Will be discontinued

PNG DXF

Class group
Domestic switching devices

Class
Socket outlet

With hinged lid
No

Colour
White

RAL-number (similar)
9003

Metallic colour
No

Transparent
No

Lockable
No

Nominal current
6 A

Nominal voltage
24 V

Device depth
33,50 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

43. UKCA mark - Great Britain

最小订单数量: 20 NR

8007352108844

1 NR

4.1x2.8x5.3 [cm]

23.7 [g]

8007352108851

20 NR

21.4x11.6x6 [cm]

526.33 [g]

8007352640047

200 NR

30.5x25.5x22.5 [cm]

5,600 [g]

问题：	Which pin is the positive and which one is the negative?
回答：	The single flat pin is the ˝+˝ and the L-shaped one is the ˝-˝.
