Frame RF device Idea Classica plate grey

Pdf

Vimar - 16527.CL - Frame RF device Idea Classica plate grey

16527.CL
Smart systems&products / Smart switch&sound / IDEA / Mounting frames

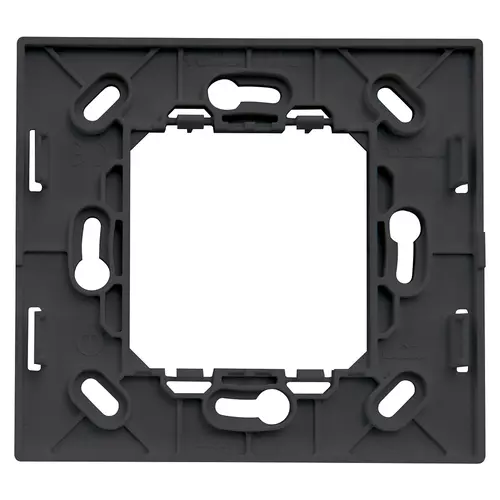

Frame RF device Idea Classica plate grey
Mounting frame for surface mounting of Ocean, Bluetooth, ZigBee radio controls, to be completed with Idea Classic 2-module cover plates, grey

产品状态
3 - Active

图纸

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Back side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
2

Number of modules vertical (module system)
2

With built-in installation box
No

With screws
No

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

00. CE Marking - EU

43. UKCA mark - Great Britain

最小订单数量: 10 NR

条形码

8007352648562

1 NR

8.6x8.6x0.8 [cm]

20.8 [g]

8007352649842

10 NR

19x14.3x9.5 [cm]

280 [g]

合法

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。有关产品卡信息的使用条件，请参阅使用条件。
