16527.CL.B
Smart systems&products / Smart switch&sound / IDEA / Mounting frames

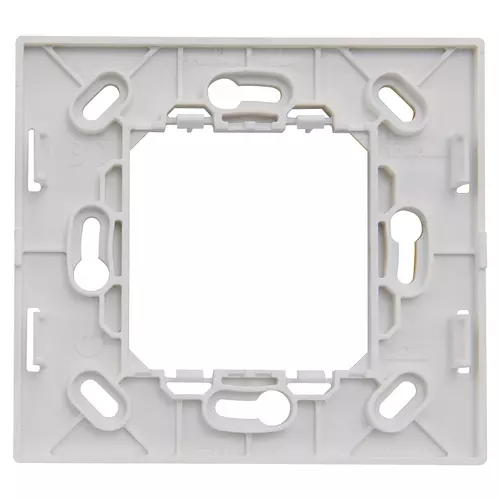

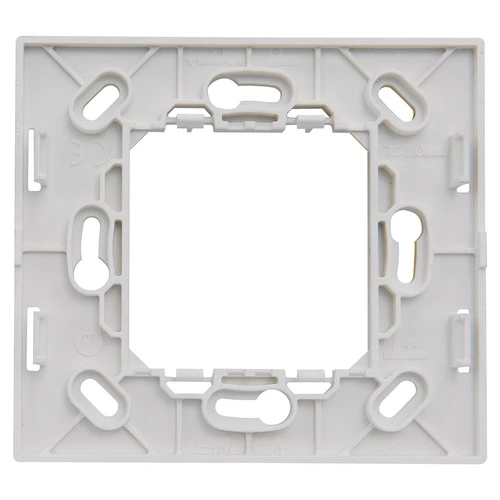

Frame RF device Idea Classica plate whit
Mounting frame for surface mounting of Ocean, Bluetooth, ZigBee radio controls to be completed with Idea Classic 2-module cover plates, white
产品状态
3 - Active

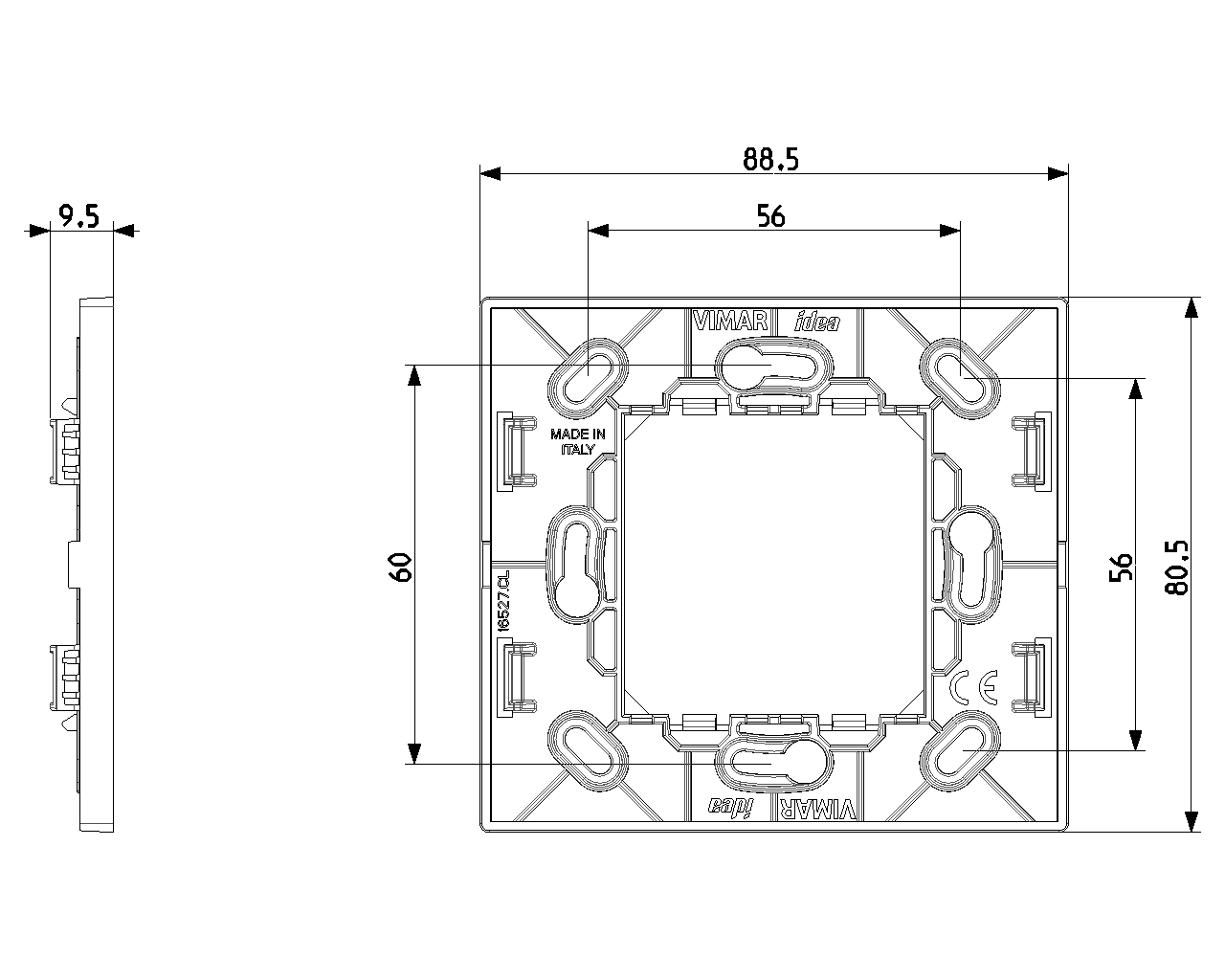

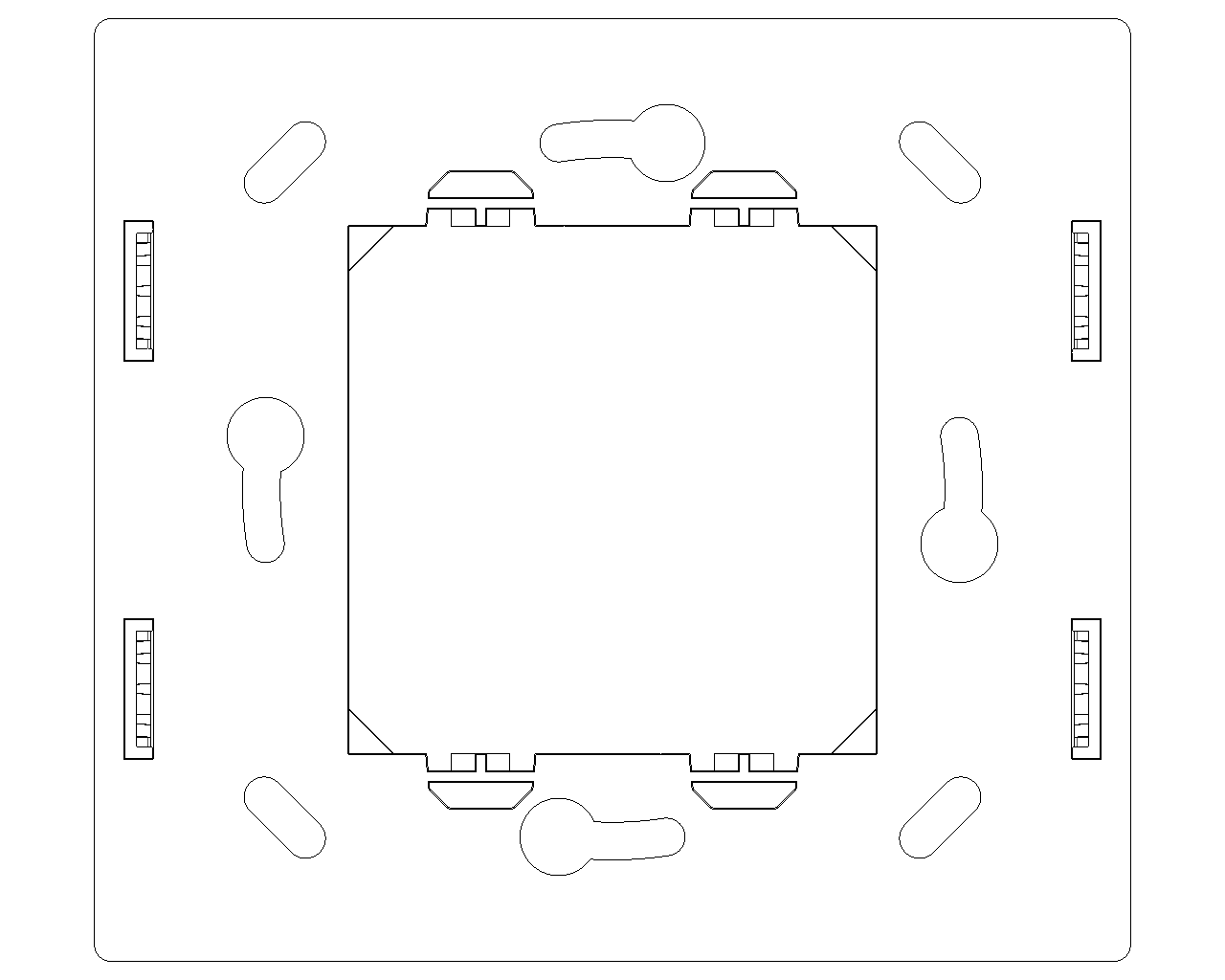

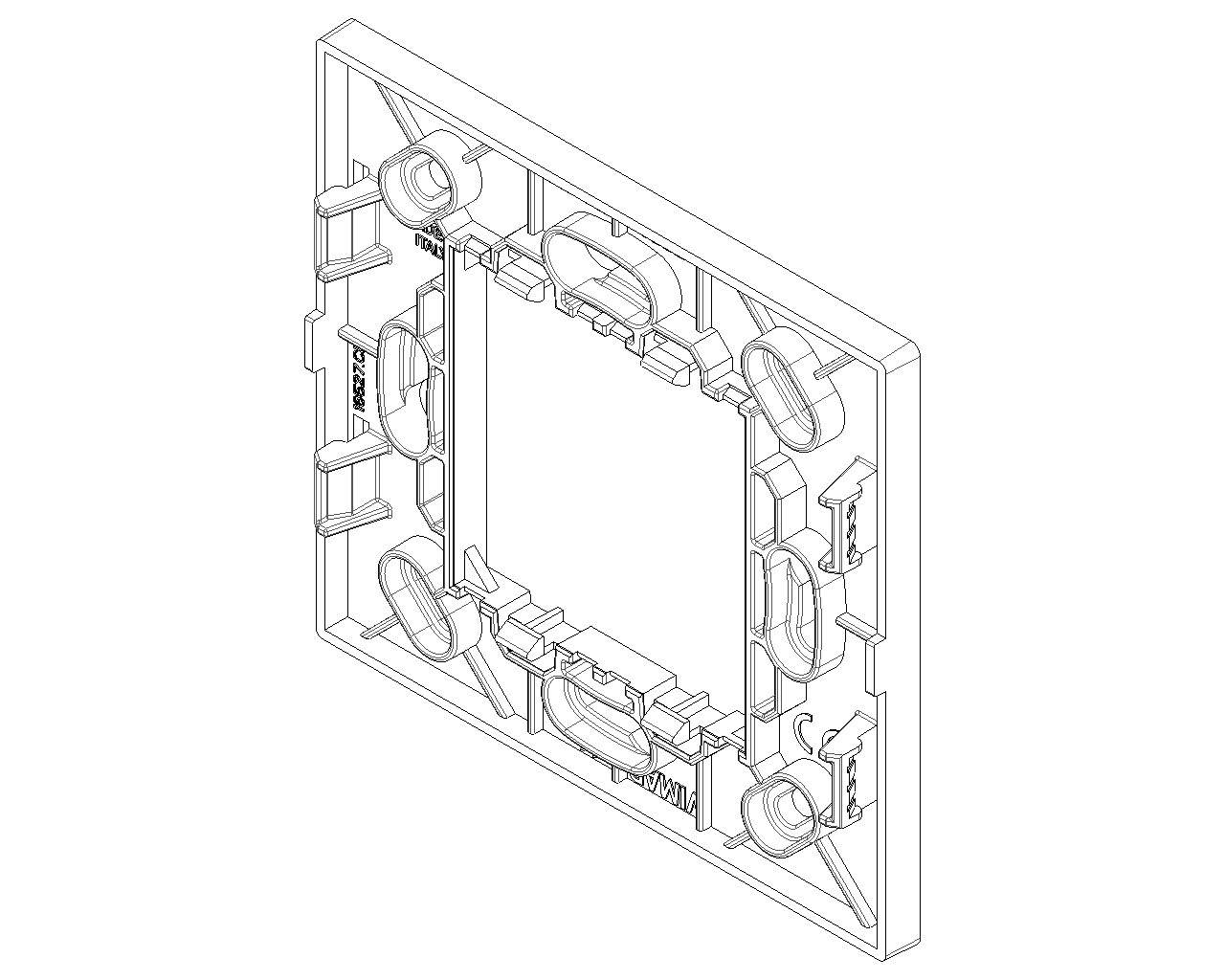

图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Holder for modular domestic switching devices
Holder for modular domestic switching devices
Model
Flush-mounted
Flush-mounted
Type of fastening
Other
Other
Mounting method of the module inserts
Back side
Back side
Mounting direction
Horizontal and vertical
Horizontal and vertical
Number of modules horizontal (module system)
2
2
Number of modules vertical (module system)
2
2
With built-in installation box
No
No
With screws
No
No
Suitable for mounting in round junction box 60 mm
No
No
Flush-mounted installation
Yes
Yes
Suitable for subfloor installation duct box
No
No
Suitable for wall duct
No
No
Suitable for mounting on DIN-rail 35 mm
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Surface protection
Untreated
Untreated
最小订单数量: 10 NR
条形码
8007352648555
1 NR
8.6x8.6x0.8 [cm]
21.2 [g]
8007352649859
10 NR
19x14.3x9.5 [cm]
282.6 [g]
