IP55 frame 3M white - 16813.Q.B

Pdf
Vimar - 16813.Q.B - IP55 frame 3M white
Vimar - 16813.Q.B - IP55 frame 3M white

16813.Q.B
System infrastructure / Enclosures and control units / Protected&watertight series / IDEA/8000-watertight&protected

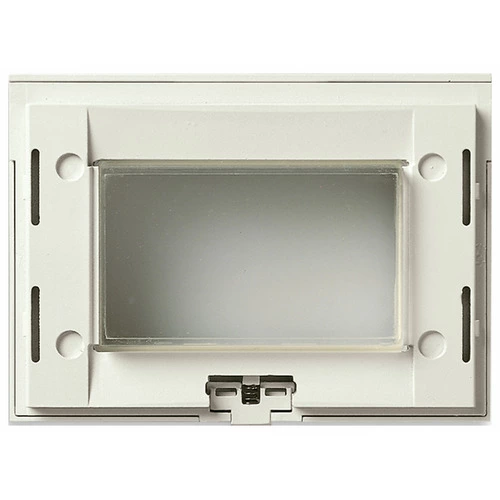

IP55 frame 3M white
3-module mounting frame, with screws, cover with IP55 transparent elastic membrane for 3-module flush mounting boxes, white. Suitable only for Classica cover plate except wood

产品状态
3 - Active

您可能也感兴趣

07937
07937 - Screw for frame fixing - 35mm
07939
07939 - Screw for frame fixing - 50 mm

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Mounting with screw
Mounting method of the module inserts
Back side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
Yes
Suitable for mounting in round junction box 60 mm
Yes
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
No
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

43. UKCA mark - Great Britain

96. Electrotechnical expert

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352082977
1 NR
12.1x9x3 [cm]
94.4 [g]
Barcode Qty 10 NR
8007352084117
10 NR
28.4x18.4x9.5 [cm]
1,061.33 [g]
Barcode Qty 120 NR
8007352637801
120 NR
59x38.5x30 [cm]
13,482 [g]
