Two 2P+E 16A USA+EU outlets Metal - 19249.M

19249.M

Arké Metal / Devices / Other standards socket outlets

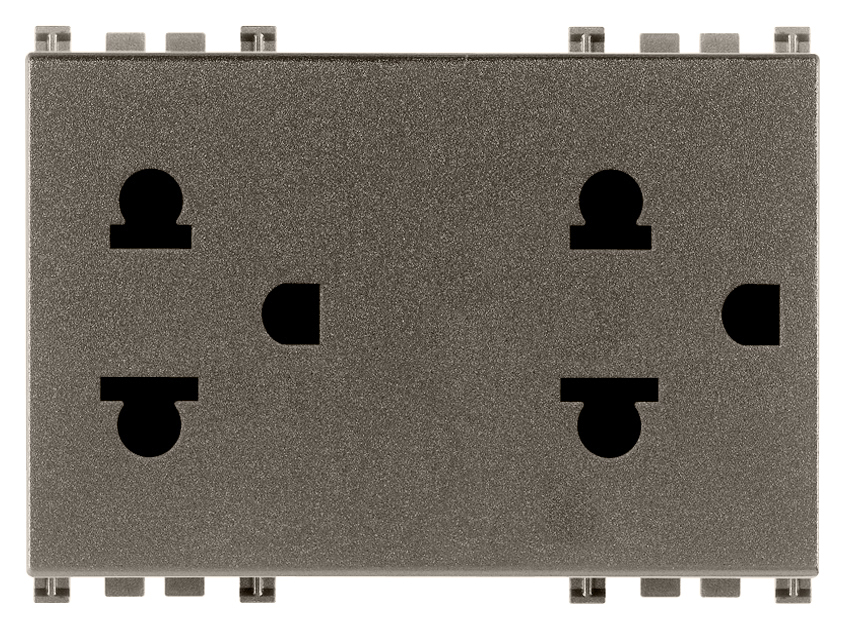

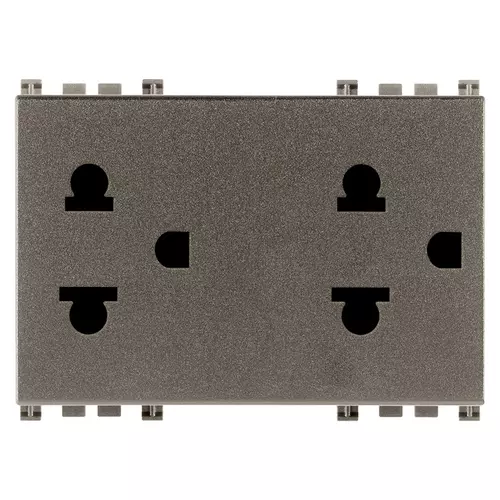

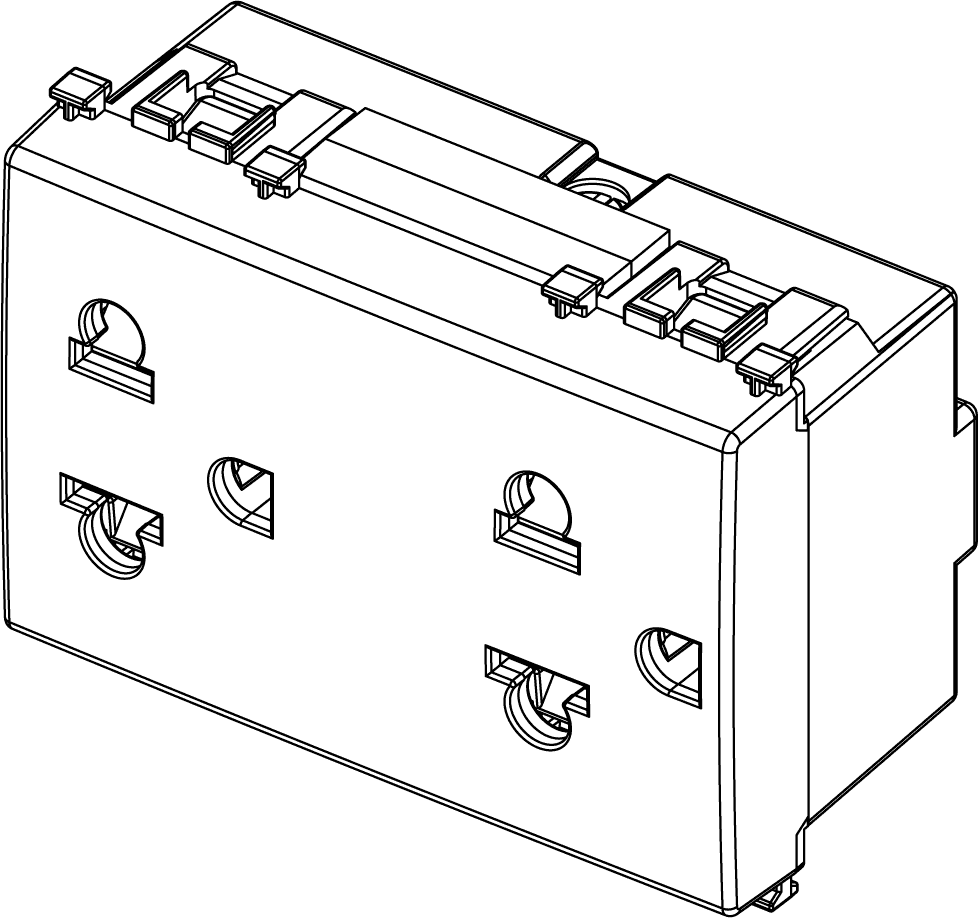

Two 2P+E 16A USA+EU outlets Metal
Double 2P+E 16 A 250 V~ socket outlet, polarized Euro-American standard, Metal - 3 modules

产品状态
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Other
With built-in USB power supply
No
Number of units
2
Number of modules (module syst
3
Number of socket outlets switc
0
Imprint/indication
Without imprint

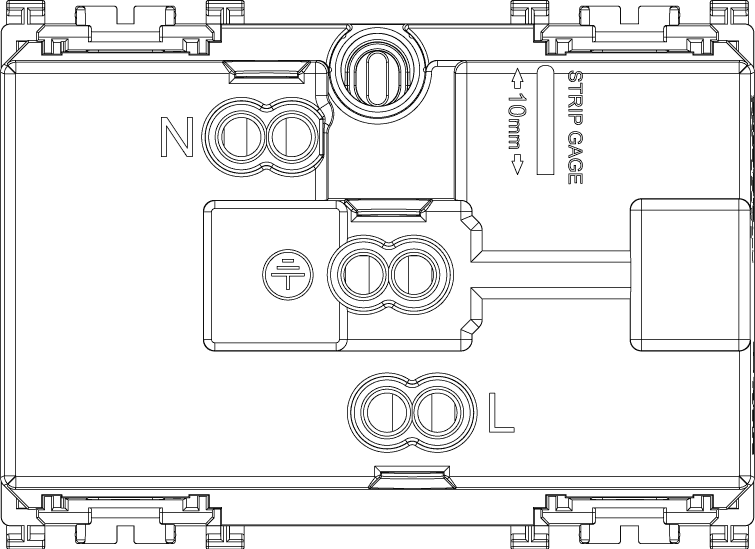

Connection type
Screwed terminal
With hinged lid
No
With child-protection
Yes
Label space/information surfac
Yes
Colour
Aluminium
RAL-number (akin)
9007
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 v
Frequency
50,00 - 60,00 HZ
Suitable for degree of protect
IP20
For heavy conditions (in accor
No
Impact strength
Other

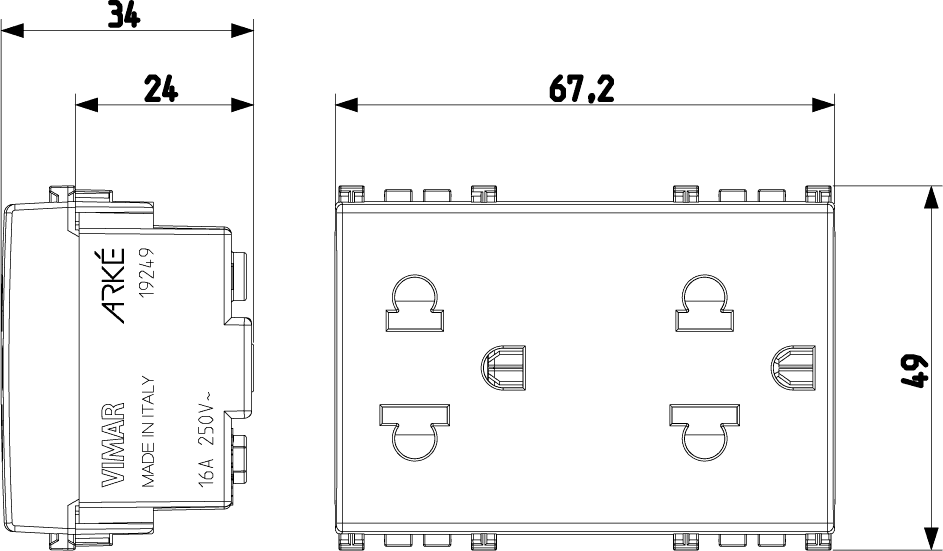

Width of device
44,80 mm
Height of device
49,00 mm
Depth of device
36,00 mm
最小订单数量: 20 NR

条形码

8007352596719
1 NR
5.3x3.9x7.6 [cm]
73.1 [g]
8007352596726
20 NR
28.1x13.1x11.3 [cm]
1,568 [g]
