2P+E13A SICURY multi-outlet+switch Metal - 19255.M

Pdf
Vimar - 19255.M - 2P+E13A SICURY multi-outlet+switch Metal
Vimar - 19255.M - 2P+E13A SICURY multi-outlet+switch Metal

19255.M
Wiring devices / Traditional wiring devices / ARKÉ / Devices

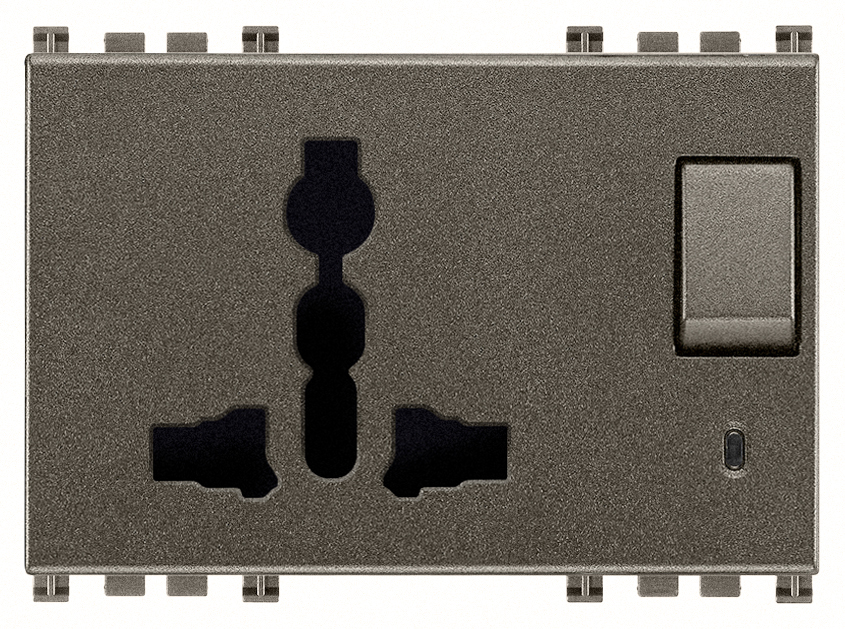

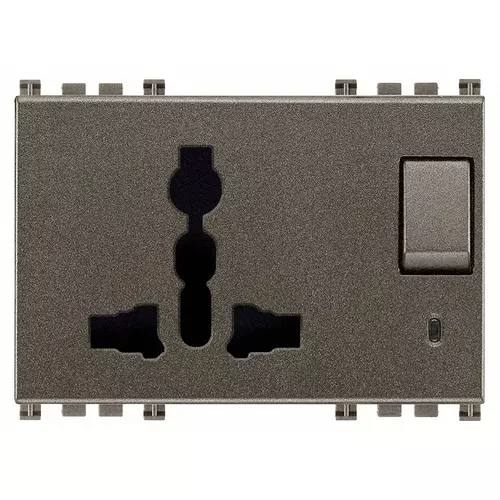

2P+E13A SICURY multi-outlet+switch Metal
2P+E 13 A 250 V~ SICURY socket outlet, multi standard with 1P 1-way switch, lightable, Metal - 3 modules

产品状态
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of modules (module system)
2
Number of socket outlets switchable
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Aluminium
RAL-number (similar)
9007
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
With loop through function
No
With on/off switch
Yes
Rotated central insert
No
Nominal current
13 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other

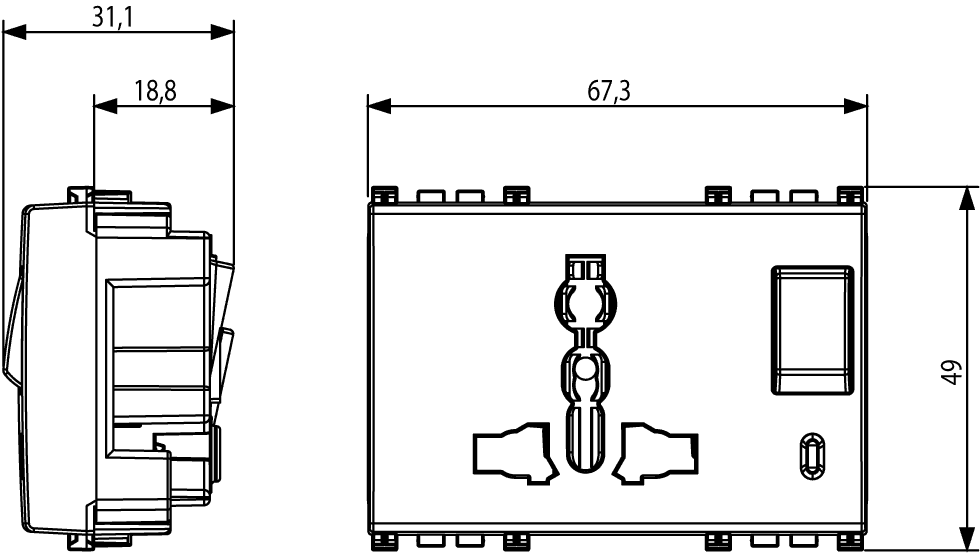

Device width
67,30 mm
Device height
49,00 mm
Device depth
31,10 mm

00. CE Marking - EU

00. CE Marking - EU

37. Marking - Morocco

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352599444
1 NR
5.3x3.9x7.6 [cm]
66 [g]
Barcode Qty 10 NR
8007352599451
10 NR
28.1x13.1x6 [cm]
739.2 [g]
Barcode Qty 120 NR
8007352717312
120 NR
38.5x29x30 [cm]
8,870.4 [g]
