Plate 4M (2+2x71) techno antibact. black - 19643.AB.71

Pdf
Vimar - 19643.AB.71 - Plate 4M (2+2x71) techno antibact. black
Vimar - 19643.AB.71 - Plate 4M (2+2x71) techno antibact. black

19643.AB.71
Wiring devices / Traditional wiring devices / ARKÉ / Cover plates

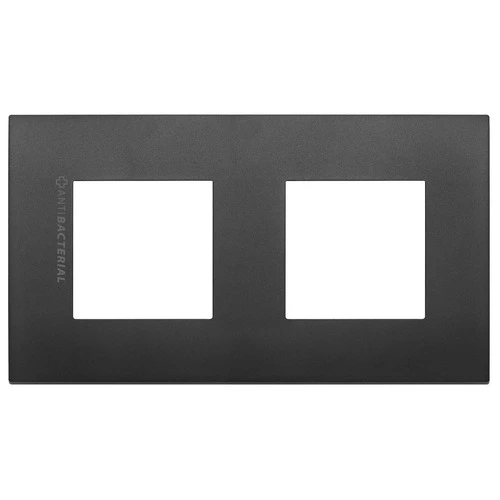

Plate 4M (2+2x71) techno antibact. black
4-module Classic cover plate (2+2, 71 mm distance between centres), technopolymer, antibacterial material, black

产品状态
3 - Active

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
No
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Other
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
9005
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
161,00 mm
Height
90,00 mm
Depth
8,60 mm
Built-in width
161,00 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

43. UKCA mark - Great Britain

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352653139
1 NR
16.1x9x0.8 [cm]
26.7 [g]
Barcode Qty 5 NR
8007352653085
5 NR
17x11x5.5 [cm]
173.5 [g]
