Plate 6M(2+2+2x71) technopolymer white - 19644.74

Pdf
19644.74

Arké / Cover plates / Technopolymer Classic cover plates

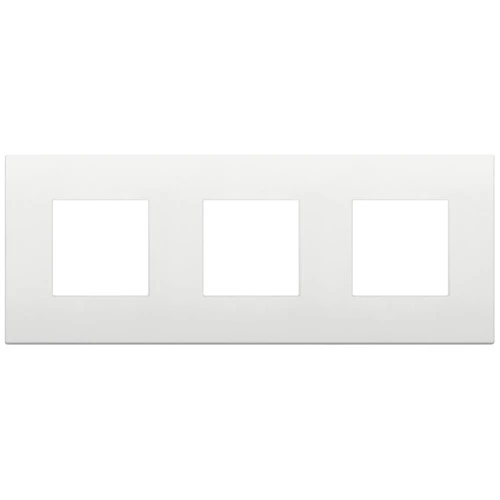

Plate 6M(2+2+2x71) technopolymer white
Classic 6-module cover plate (2+2+2, distance between centres 71 mm), technopolymer, white

产品状态
3 - Active

您可能也感兴趣

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
6
Mounting direction
Horizontal and vertical
Number of units horizontal
6
Number of units vertical
1
Number of modules horizontal (module system)
6
Number of modules vertical (module system)
1
Number of gangs
0
With mounting grid
Yes
Suitable for flush-mounted installation
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (akin)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
232,00 mm
Height
90,00 mm
Depth
8,60 mm
Built-in width
232,00 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm
最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352627833
1 NR
23.2x9x0.8 [cm]
37.56 [g]
Barcode Qty 5 NR
8007352627840
5 NR
24.5x10.5x5.7 [cm]
242.3 [g]
