Plate 6M(2+2+2x71)techno antibact. white - 19644.AB.74

Pdf
Vimar - 19644.AB.74 - Plate 6M(2+2+2x71)techno antibact. white
Vimar - 19644.AB.74 - Plate 6M(2+2+2x71)techno antibact. white

19644.AB.74
Wiring devices / Traditional wiring devices / ARKÉ / Cover plates

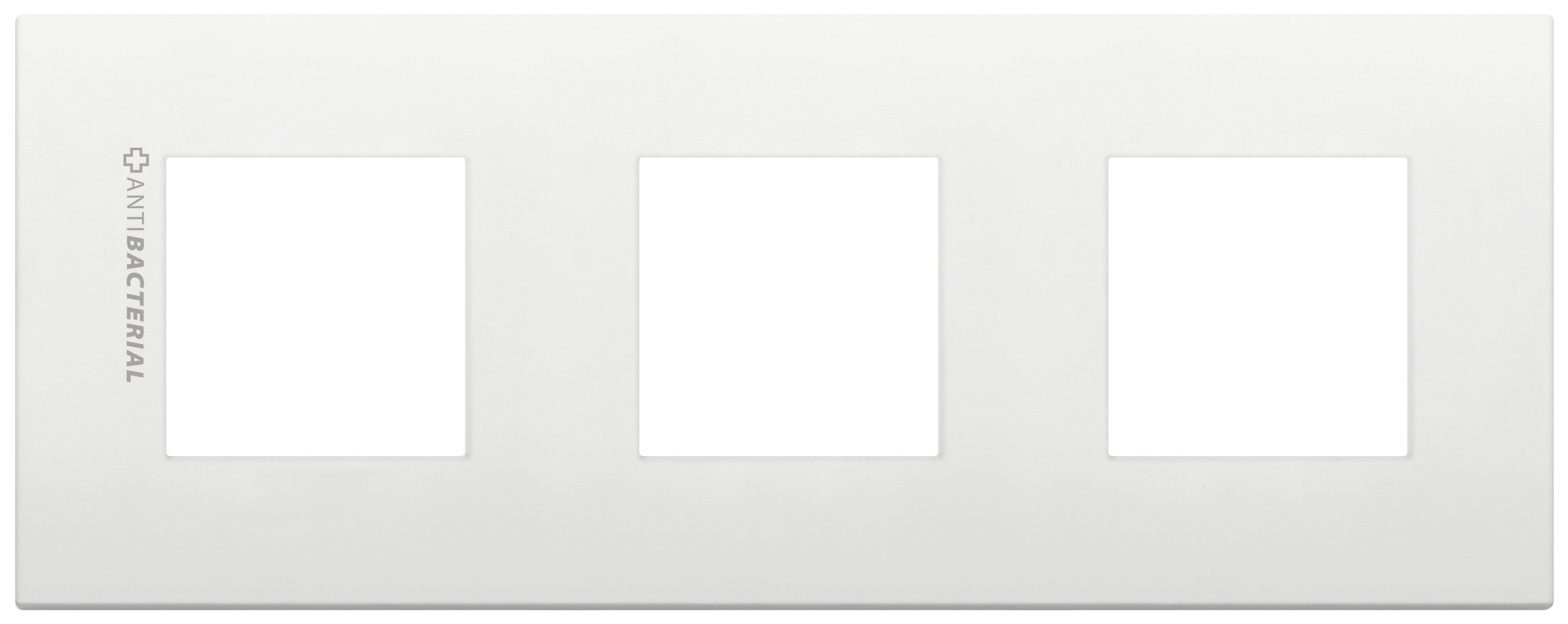

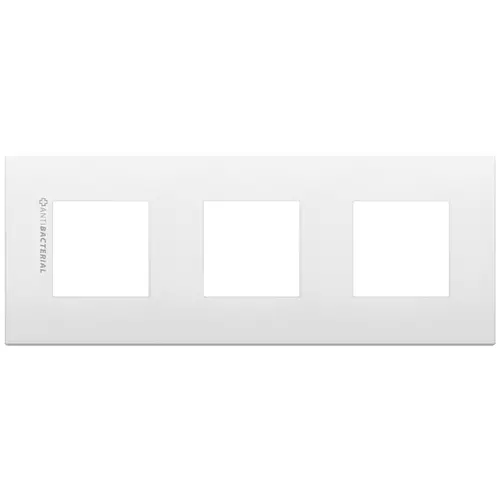

Plate 6M(2+2+2x71)techno antibact. white
6-module Classic cover plate (2+2+2, 71 mm distance between centres), technopolymer, antibacterial material, white

产品状态
3 - Active

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
6
Mounting direction
Horizontal and vertical
Number of units horizontal
6
Number of units vertical
1
Number of modules horizontal (module system)
6
Number of modules vertical (module system)
1
With mounting grid
No
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Other
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
232,00 mm
Height
90,00 mm
Depth
8,60 mm
Built-in width
232,00 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

43. UKCA mark - Great Britain

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352653177
1 NR
23.2x9x0.8 [cm]
37.56 [g]
Barcode Qty 5 NR
8007352653184
5 NR
24.5x10.5x5.7 [cm]
242.3 [g]
