Two interlocked NO+NO 10A pushes white - 20062.B

Pdf

Vimar - 20062.B - Two interlocked NO+NO 10A pushes white

20062.B
Wiring devices / Traditional wiring devices / EIKON / Devices

Two interlocked NO+NO 10A pushes white

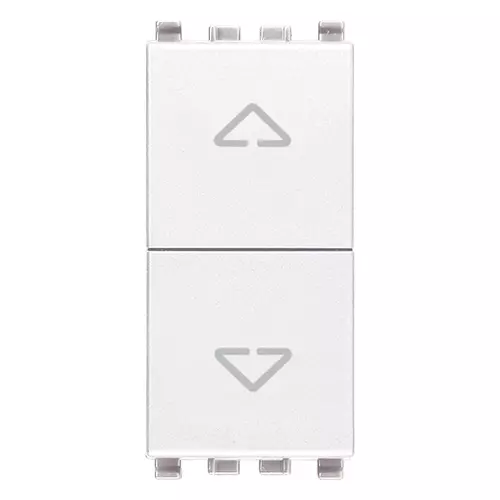

Two interlocked push buttons, 1P NO + 1P NO 10 A 250 V~, with directional arrows, white

产品状态
3 - Active

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Other

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
No

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
White

RAL-number (similar)
9016

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
22,30 mm

Device height
49,00 mm

Device depth
39,00 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352315679

1 NR

4.1x2.8x5.3 [cm]

33.67 [g]

8007352315686

10 NR

14.4x9x6 [cm]

371.73 [g]

8007352634992

160 NR

57.5x22.5x30 [cm]

6,467 [g]
