Two independent NO+NO 10A pushes Next - 20066.N

Pdf
Vimar - 20066.N - Two independent NO+NO 10A pushes Next
Vimar - 20066.N - Two independent NO+NO 10A pushes Next

20066.N
Wiring devices / Traditional wiring devices / EIKON / Devices

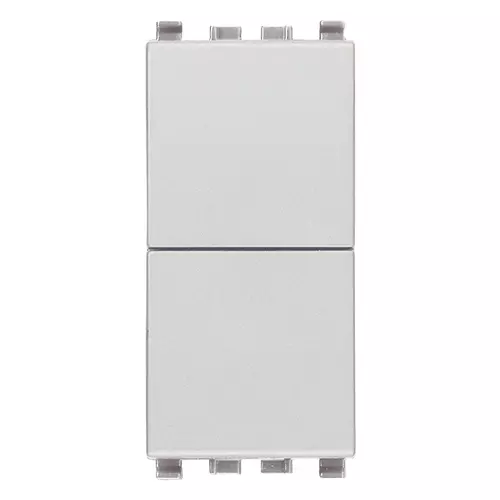

Two independent NO+NO 10A pushes Next
Two independent push buttons, 1P NO + 1P NO 10 A 250 V~, Next. They allow the simultaneous closing of the two circuits and are thus not suitable for reversing motors (roller blinds, gates, etc.)

产品状态
3 - Active

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
2
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22,30 mm
Device height
49,00 mm
Device depth
39,00 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352291553
1 NR
4.1x2.8x5.3 [cm]
33.2 [g]
Barcode Qty 10 NR
8007352291560
10 NR
14.4x9x6 [cm]
366.87 [g]
Barcode Qty 160 NR
8007352637504
160 NR
37.5x30x13.5 [cm]
6,170.4 [g]
问题： Is it possible to interface the Vimar Due Fili 20557 doorbell with normal buttons?
回答： Yes, you can connect buttons 20066-20557 with appropriate connection cables.
