Universal MASTER dimmer 230V Next - 20135.1.N

Pdf

Vimar - 20135.1.N - Universal MASTER dimmer 230V Next

20135.1.N

Eikon Next / Devices / Electronic devices

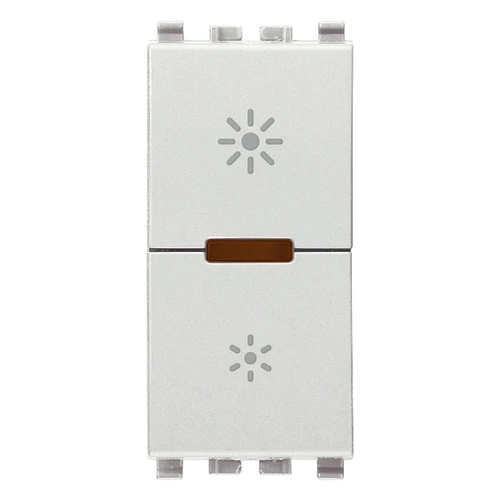

Universal MASTER dimmer 230V Next
Universal-dimmer 230 V~ 50 Hz, phase-cutting, for: 40-400 W incandescent lamps, 40-300 VA electronic transfomers, 10-200 W CFL lamps, 3-200 W LED lamps and LED phase-cutting electronic transfomers, ON/OFF control and built-in or from NO peripheral push buttons regulation, MASTER function for 20137, minimum brightness regulation, visible in darkness, Next. Not for Isoset enclosures

产品状态
3 - Active

单, 说明书, 文档

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Dimmer

Method of operation
Push button

Type of load
Universal and LED Retrofit

Applicable with button
Yes

Applicable with movement sensor
No

Applicable with presence indicator
No

Applicable with time switch/timer
No

Applicable with transmission button
No

Applicable with infrared button
No

Mounting method
Flush mounted (plaster)

Type of fastening
Snapper mounting

Material
Plastic

Material quality
Thermoplastic

Surface protection
Lacquered

Surface finishing
Matt

Colour
Silver

RAL-number (similar)
9022

Transparent
No

Suitable for degree of protection (IP)
IP40

Nominal voltage
230,00 - 230,01 v

Frequency
50,00 - 50,01 HZ

Control voltage
230,00 - 230,01 v

Connection type
Screwed terminal

Width of device
22,30 mm

Height of device
49,00 mm

Depth of device
50,70 mm

00. CE Marking - EU

01. IMQ - Italy

31. TISI - Thailand

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

最小订单数量: 10 NR

条形码

8007352555891

1 NR

5.1x4.3x5.3 [cm]

55 [g]

8007352555907

10 NR

26.9x11.6x4.9 [cm]

614 [g]
