16 A IoT connected actuator Next - 20593.N

Pdf

20593.N
Wiring devices / View Wireless wiring devices / EIKON / Devices

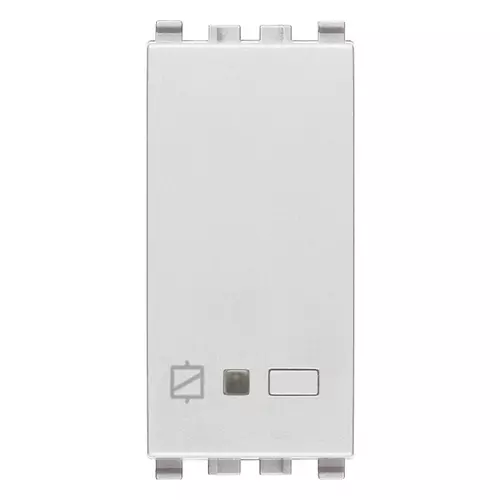

16 A IoT connected actuator Next
View Wireless connected electronic control device with NO 16(3,5)A 100-240 V~ 50/60 Hz relay output, local control with push button or remote control, double technology with Bluetooth® wireless technology 5.0 standard for the realization of View Wireless mesh system and Zigbee 3.0 standard, function for measuringthe instant power and load cut-off threshold, RGB LED visible in darkness with brightness control, 100-240 V 50/60 Hz power supply, Next

  • Configuration from View Wireless App for Bluetooth technology system and Amazon App for Zigbee technology
  • Compatible with Alexa, Google Home and IFTTT, using the dedicated gateway or Zigbee hub
  • Compatible with SmartThings hub

产品状态
3 - Active

您可能也感兴趣

Class group
Installation bus systems
Class
Switch actuator for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
Yes
Mounting method
Flush-mounted
Width in number of modular spacings
1
Local operation/hand operation
Yes
With LED indication
Yes
Suitable for C-load
Yes
Max. number of switching contacts
1
Rated current
16 A
Rated operating voltage
100,00 - 240,00 V
Different phases connectable
No
With bus connection
Yes
Modular expandability
No
Degree of protection (IP)
IP40

19. NOM - Mexico

29. QCERT - Colombia

37. Marking - Morocco

40. Bluetooth technology

42. Zigbee certified

92. RoHS UAE

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352628526
1 NR
5.2x3.5x5.3 [cm]
56 [g]
Barcode Qty 60 NR
8007352628533
60 NR
27x23x12.5 [cm]
3,526 [g]
问题: Which function envisages the actuator device art.14593-19593-20593-16593, configured in energy monitoring mode?
回答: The product allows the display of the energy consumed and the disconnection upon exceeding a given threshold which can be set by the user.
问题: How many Energy meters art.02963 can I install in a Wireless system?
回答: Each connected system allows a maximum of 2 meters art.02963.
问题: Can the connected 2-way switch art.14592-19492-19592-20592 be used as a 1-way switch for a controlled socket outlet
回答: No, as a minimum load of 2W is necessary for correct operation. To manage a controlled socket outlet, you can use art. 14593-16493-19593-20593 or art. 03981
