21507.1
Smart systems&products / Smart switch&sound / EIKON / Mounting frames
Frame for RF device grey
Mounting frame for surface mounting of Ocean, Bluetooth, ZigBee radio controls to be completed with Eikon Evo 2-module cover plates, grey
产品状态
3 - Active
您可能也感兴趣

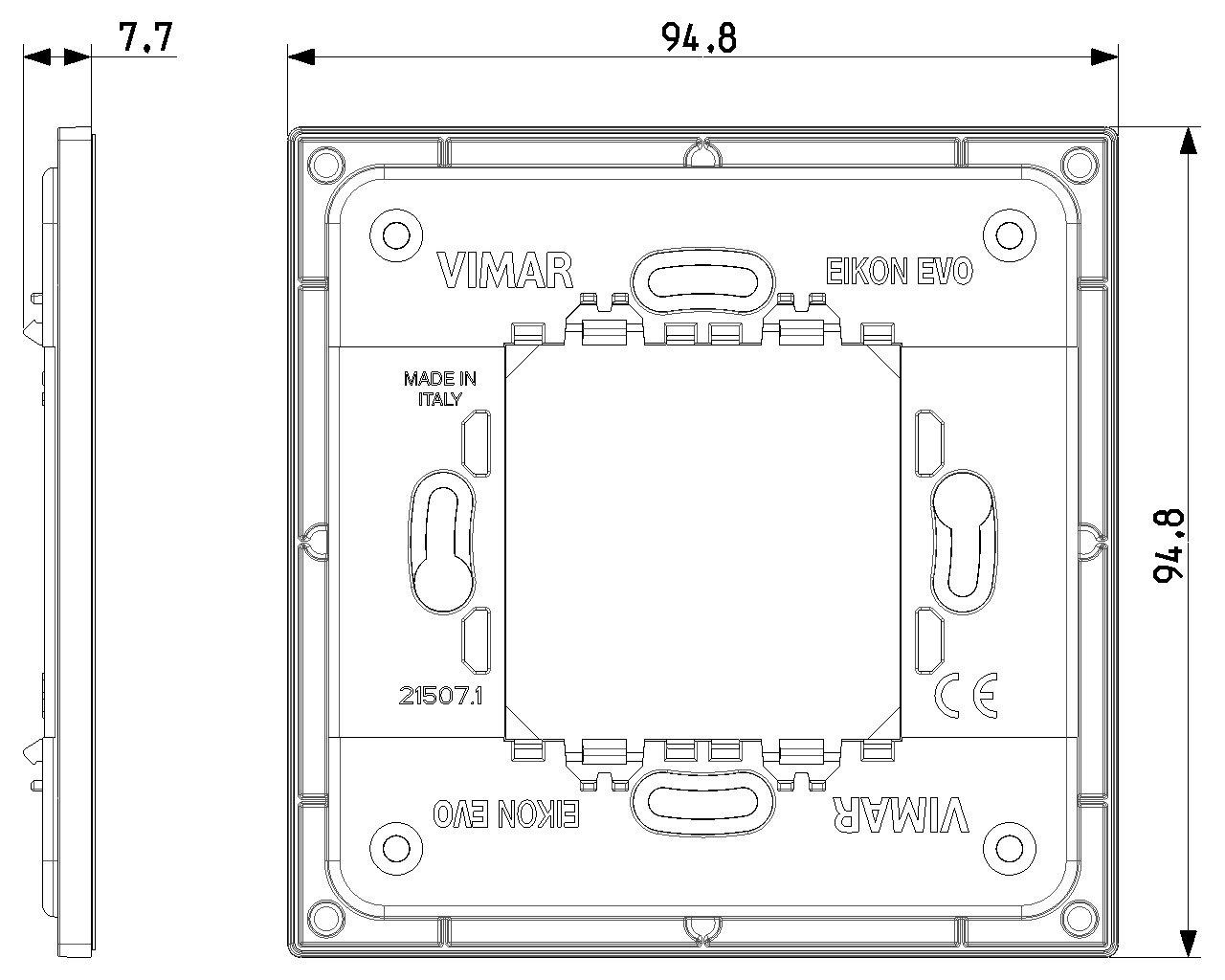

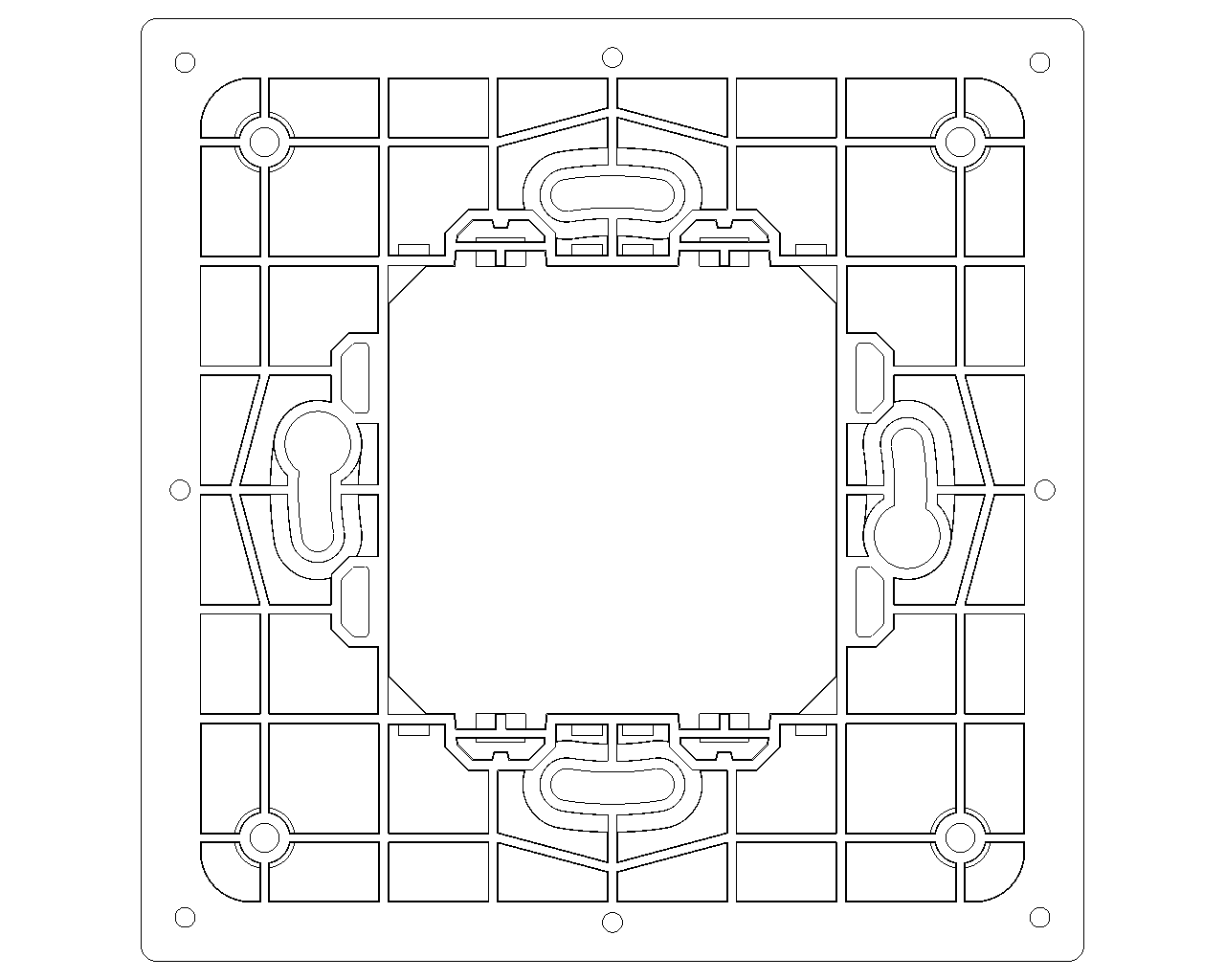

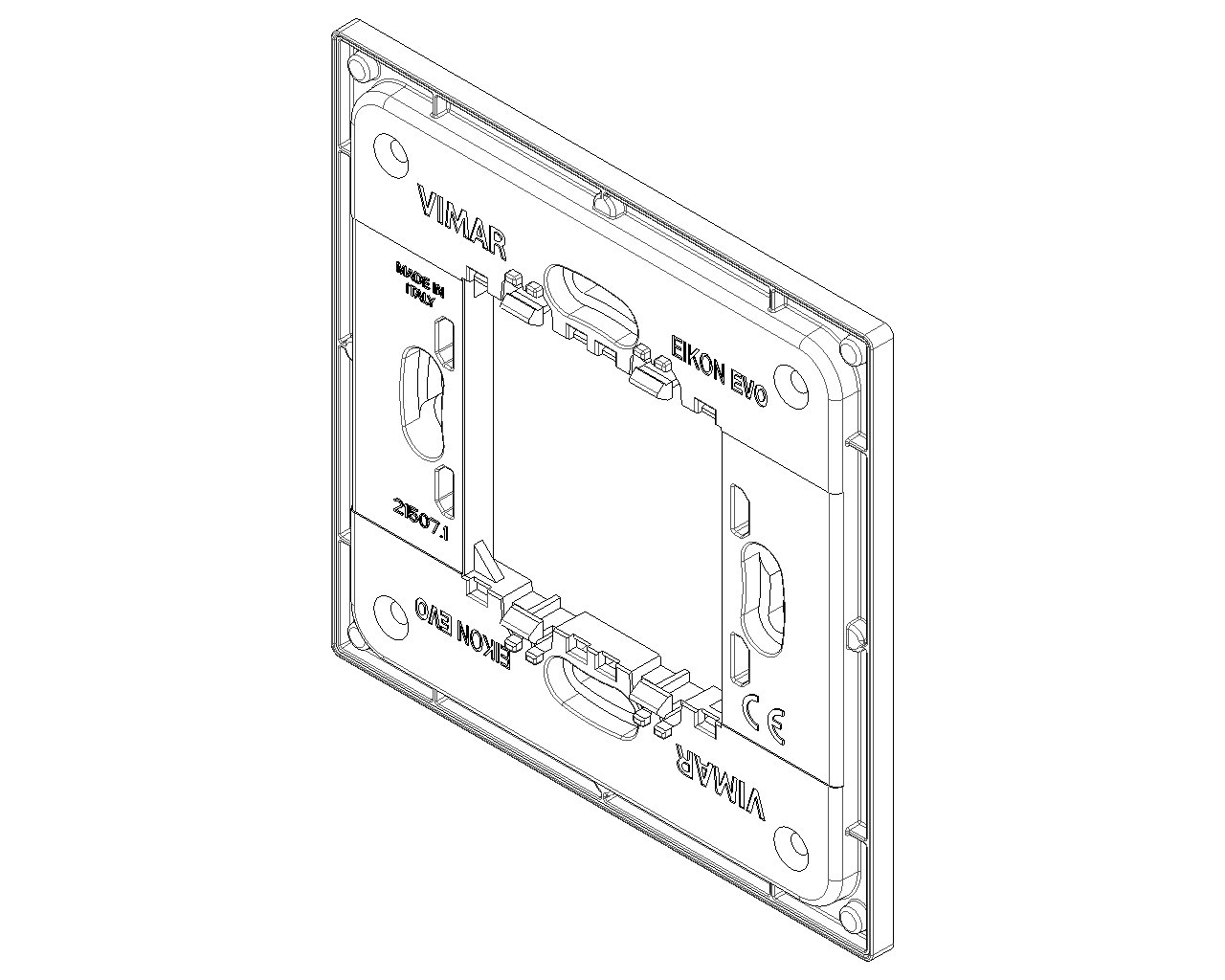

图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Holder for modular domestic switching devices
Holder for modular domestic switching devices
Model
Flush-mounted
Flush-mounted
Type of fastening
Other
Other
Mounting method of the module inserts
Front side
Front side
Mounting direction
Horizontal and vertical
Horizontal and vertical
Number of modules horizontal (module system)
2
2
Number of modules vertical (module system)
1
1
With built-in installation box
No
No
With screws
No
No
Suitable for mounting in round junction box 60 mm
Yes
Yes
Flush-mounted installation
Yes
Yes
Suitable for subfloor installation duct box
No
No
Suitable for wall duct
No
No
Suitable for mounting on DIN-rail 35 mm
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
00. CE Marking - EU
29. QCERT - Colombia
最小订单数量: 10 NR
条形码
8007352620674
1 NR
0.9x0.9x0.7 [cm]
26.4 [g]
8007352620681
10 NR
19x14.3x9.5 [cm]
339.5 [g]
