Plate 5M BS crystal bronze mirror - 21649.75

Pdf
21649.75

Eikon EVO / Cover plates / Crystal cover plates

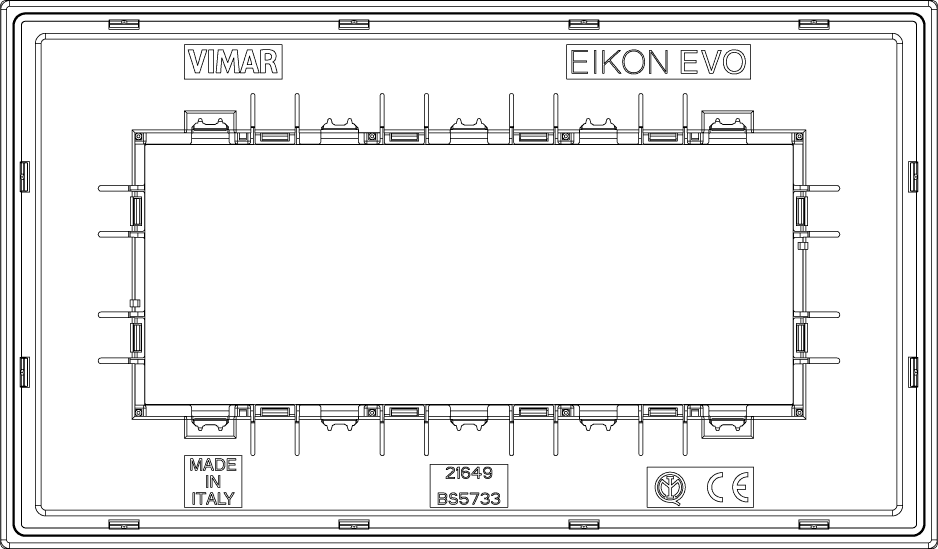

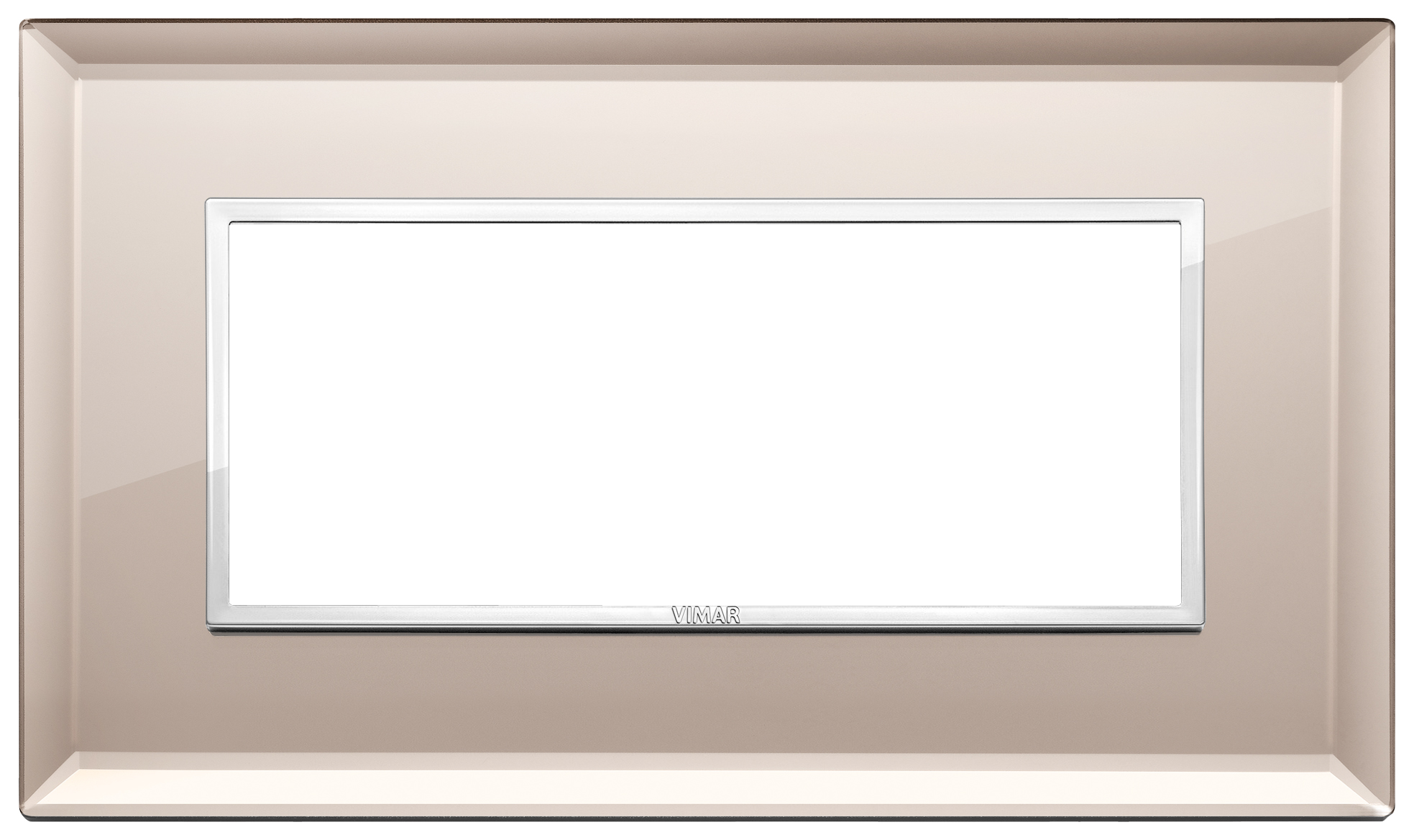

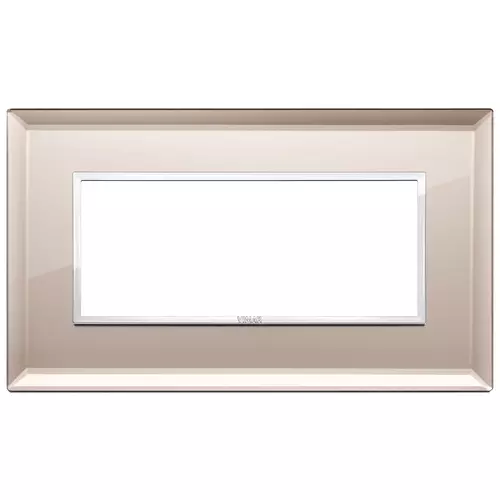

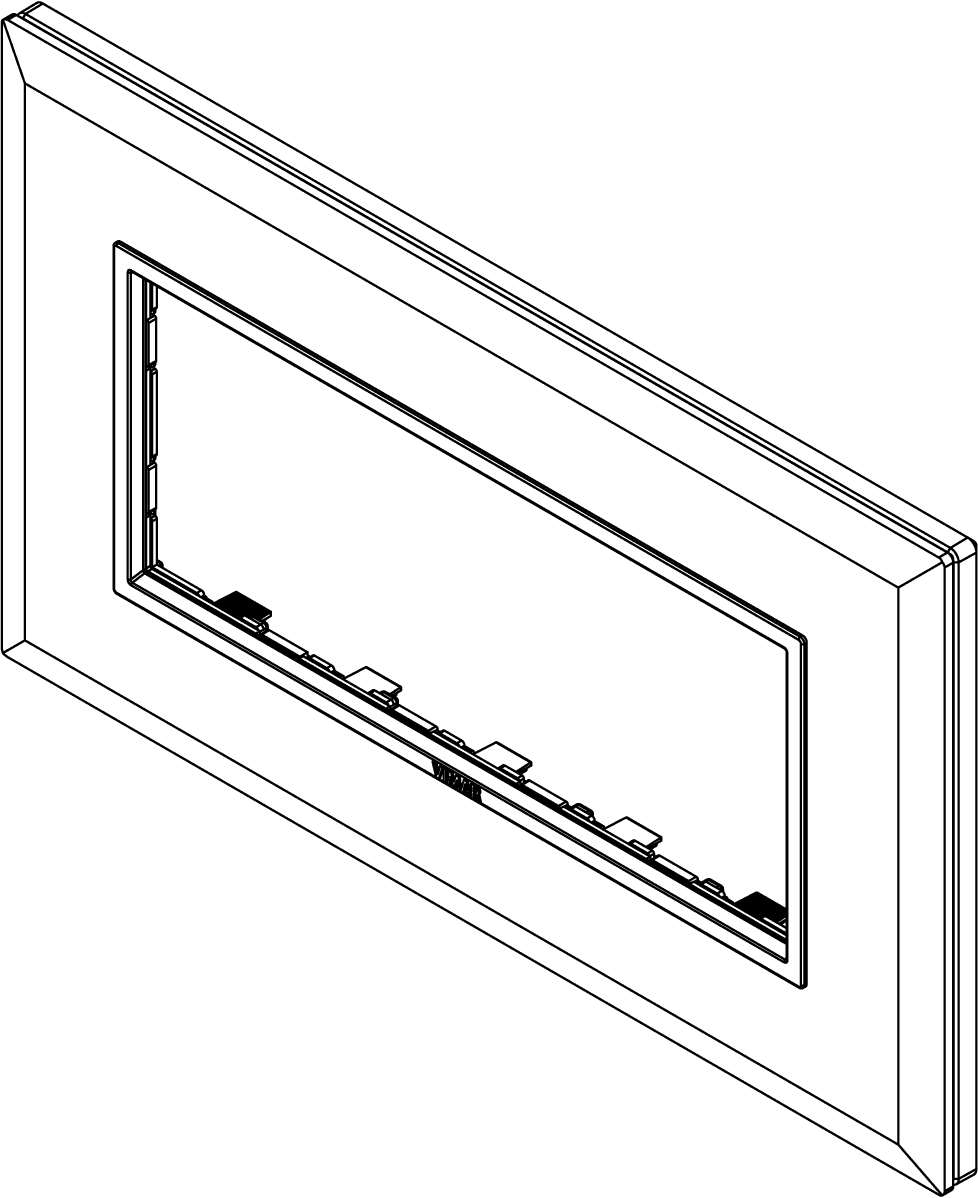

Plate 5M BS crystal bronze mirror
5-module cover plate for British standard mounting, bevelLED crystal, bronze mirror

产品状态
3 - Active

您可能也感兴趣

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
5
Mounting direction
Horizontal and vertical
Number of units horizontal
5
Number of units vertical
1
Number of modules horizontal (module system)
5
Number of modules vertical (module system)
1
Number of switch inserts
0
With mounting grid
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Glass
Material quality
Glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Bronze
RAL-number (similar)
1035
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
163,00 mm
Height
95,40 mm
Depth
9,85 mm
Built-in width
163,00 mm
Built-in height
95,40 mm
Diameter bore hole (opening)
0 mm
最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352489295
1 NR
20.2x14.1x4 [cm]
190.8 [g]
