Plate 8M mirror glass shiny bronze - 22668.76

Pdf
22668.76

Eikon EXÉ / Cover plates / Mirror glass cover plate

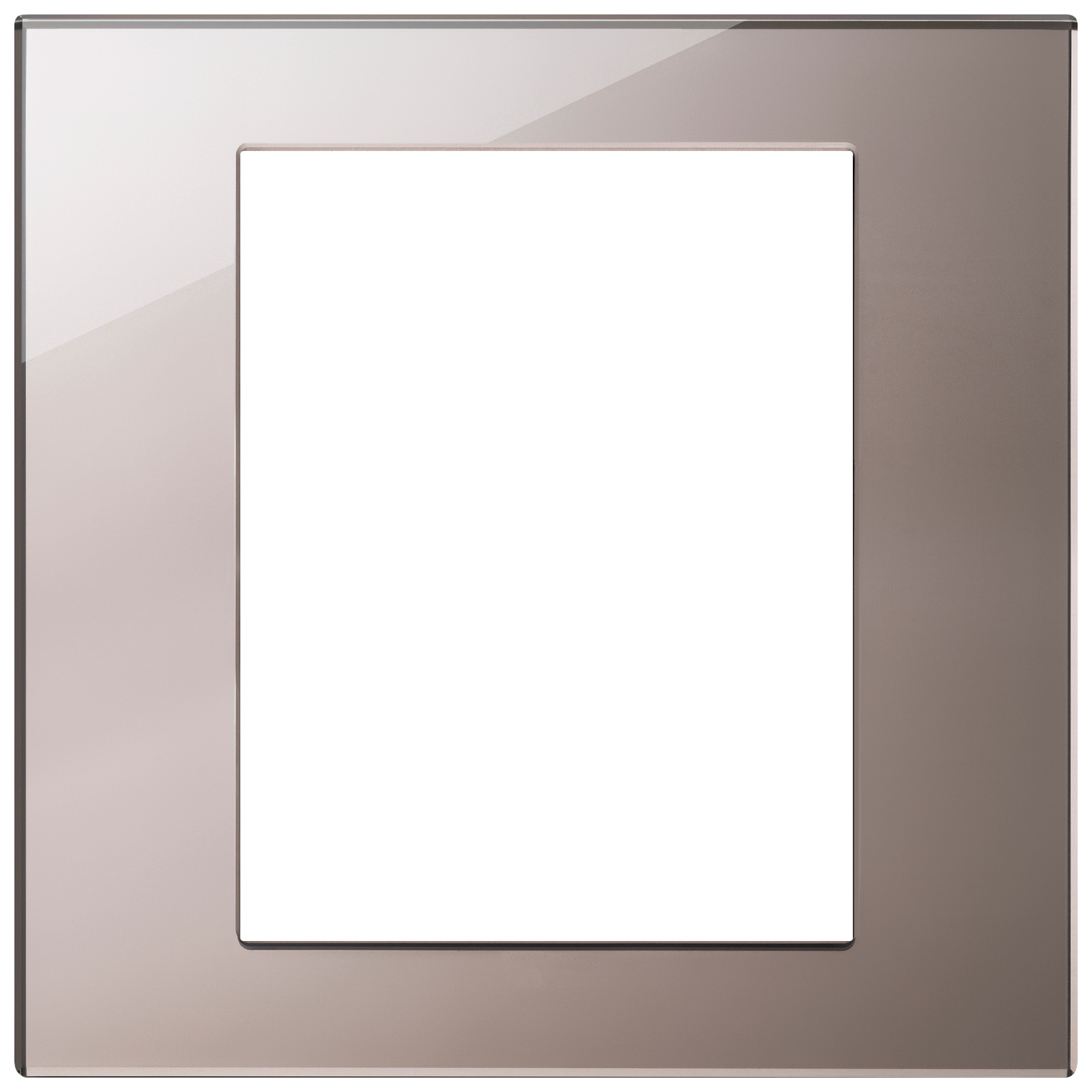

Plate 8M mirror glass shiny bronze
8 (4+4)-module cover plate, crystal, shiny bronze

产品状态
3 - Active

您可能也感兴趣

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
8
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
2
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
2
Number of switch inserts
0
With mounting grid
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Other
Material quality
Other
Surface protection
Other
Surface finishing
Glossy
Colour
Bronze
RAL-number (similar)
8008
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
156,10 mm
Height
156,10 mm
Depth
9,60 mm
Built-in width
156,10 mm
Built-in height
156,10 mm
Diameter bore hole (opening)
0 mm

01. IMQ - Italy

37. Marking - Morocco

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352609921
1 NR
18.5x18.4x3.3 [cm]
268.4 [g]
