22751.11

Eikon EXÉ / Accessories / Vintage and Flat devices

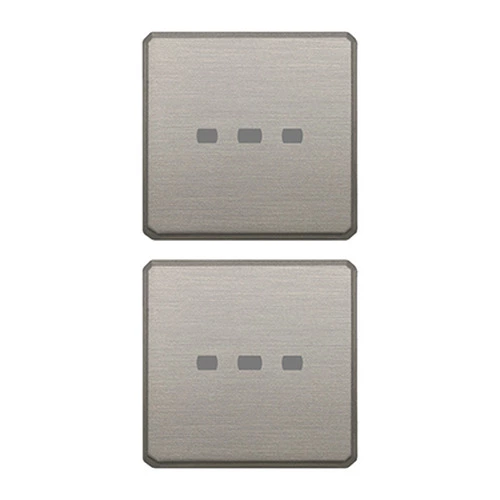

2 buttons Flat w/o symbol lightable nick
2 buttons Flat w/o symbol lightable nickel

产品状态
3 - Active

PNG DXF

Class group
Domestic switching devices

Class
Push-switch button

Assembly arrangement
Other

Model
Single push button

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
1

Number of poles
2

With lighting
Yes

Feedback-signal contact
No

Mounting method
Flush mounted (plaster)

Type of fastening
Engage (snap)

Material
Metal

Material quality
Other

Surface protection
Metallic

Surface finishing
Glossy

Colour
Silver

RAL-number (similar)
7048

Transparent
No

Label space/information surface
Yes

Height of device
15,00 mm

Depth of device
8,25 mm

01. IMQ - Italy

最小订单数量: 1 NR

8007352620902

1 NR

3.5x6.5x1.5 [cm]

9.9 [g]

8007352620919

20 NR

14.5x11x7.5 [cm]

224.12 [g]
