Vimar - 30502 - EnOcean radio control

30502
Smart systems&products / Smart switch&sound / LINEA / Non-modular components

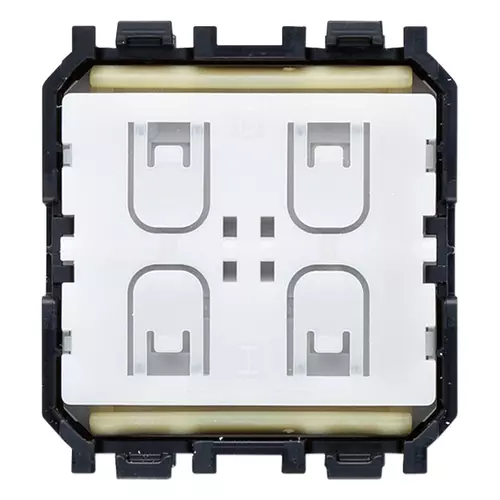

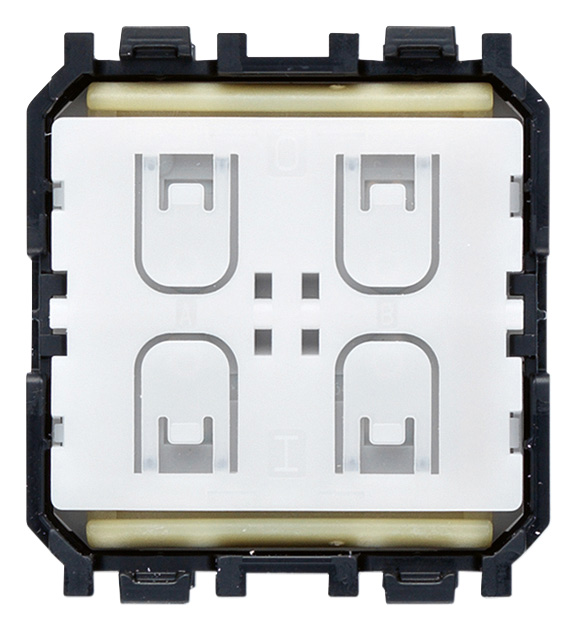

EnOcean radio control
Flat control with four push buttons with 868 MHz radio frequency transmitter, EnOcean standard, energy harvesting power supply provided by the built-in electro-dynamic generator, to be completed with dedicated buttons 31506 or 31506.2 - 2 modules

产品状态
3 - Active

您可能也感兴趣

31506.B - Radio control button 1M white 2pc

31506.2B - Radio control button 2M white

31506.G - Radio control button 1M black 2pc

31506.2G - Radio control button 2M black

31506.C - Radio control button 1M canvas 2pc

31506.2C - Radio control button 2M canvas

30507.G - Radio control frame 2M black

30507.B - Radio control frame 2M white

单, 说明书, 文档

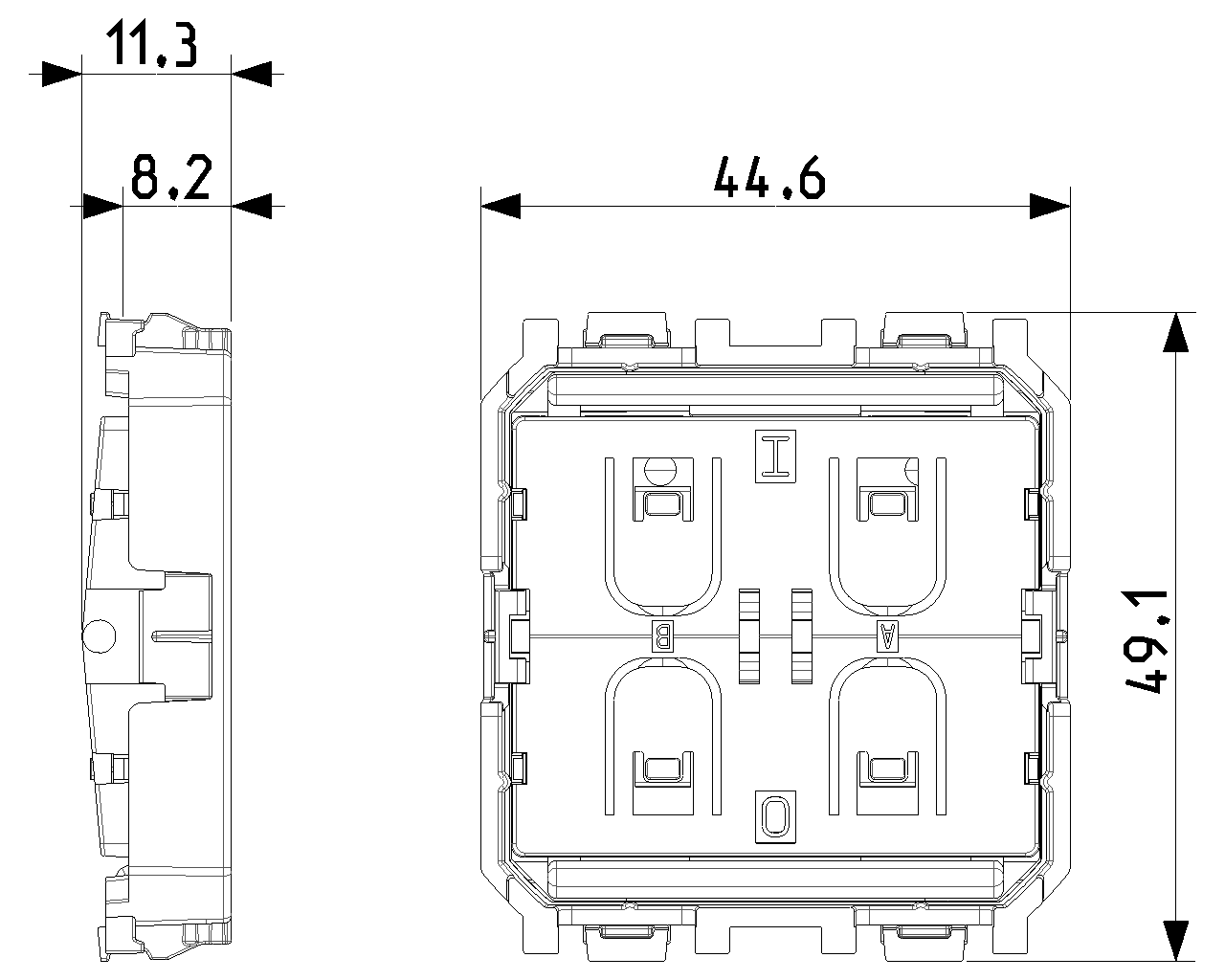

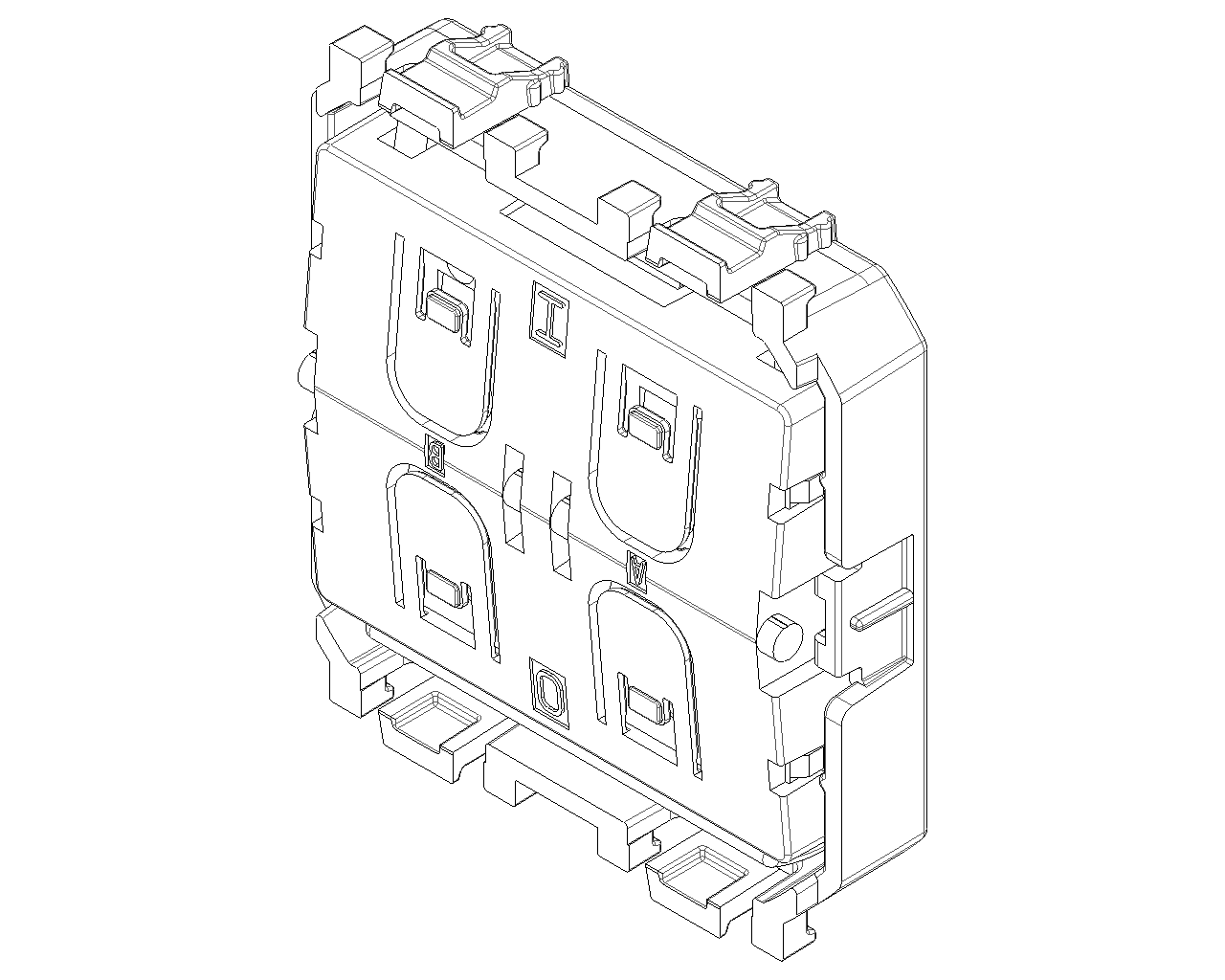

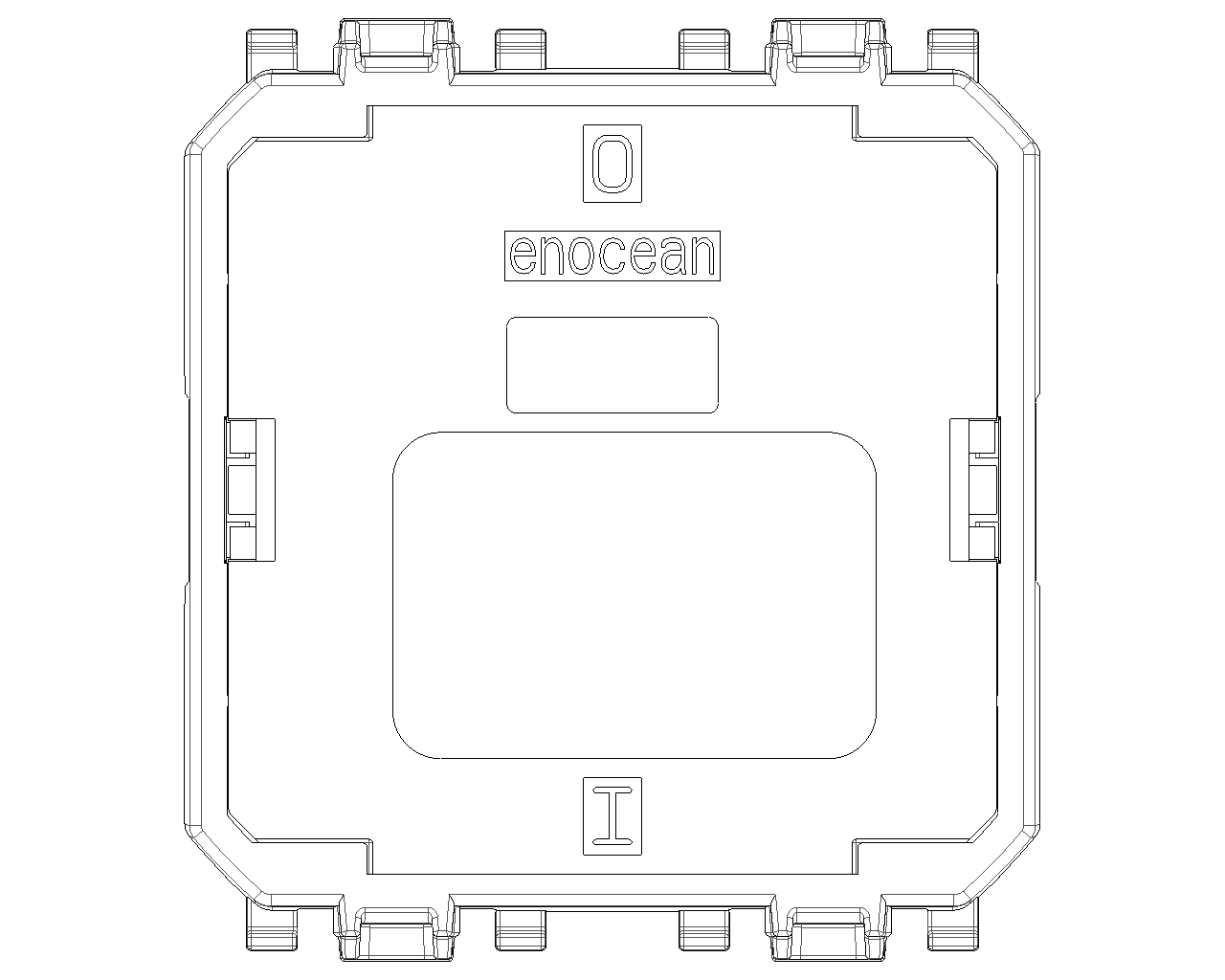

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
Light control unit for bus system

Bus system KNX
No

Bus system KNX-RF (Radio Frequent)
No

Bus system radio frequent
Yes

Bus system LON
No

Bus system Powernet
No

Other bus systems
None

Radio frequent bidirectional
No

Mounting method
Flush-mounted

Width in number of modular spacings
2

With bus connection
No

Substation input
No

Local operation/hand operation
No

With LED indication
No

Interface 1-10 V
No

Number of inputs for light sensor
0

Max. switching current (resistive load)
0 A

Number of outputs
4

Max. control current
0 mA

Degree of protection (IP)
IP40

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

46. UK PSTI compliance

99. WEEE Directive

最小订单数量: 1 NR

条形码

8007352694187

1 NR

6x4.5x5.4 [cm]

34.8 [g]

8007352694194

10 NR

23.5x12.5x6.5 [cm]

433.6 [g]

8007352694200

90 NR

37.5x30x21 [cm]

4,280 [g]
