46235.015B
Safety / ELVOX CCTV / IP / Cameras

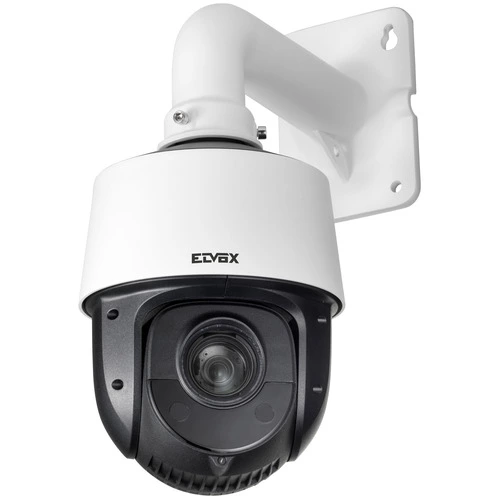

IP Speed Dome cam-2Mpx 15x 200m IR Plus
IP Speed Dome cam, 2Mpx (1920 × 1080), CMOS 1/2,8in sensor, 5 ~ 75 mm lens, IR mechanical filter, 15x zoom, IR light with range up to 200 m, SD CARD 256GB slot, video analysis functions, WDR, BLC, Defog and 3DNR, RTSP, PoE (IEEE 802.3af) or 12 Vdc max 12 W supply voltage, with surface mounting bracket, IP66 protection degree. Dimensions without bracket ø 173x247 mm. Weight 2100 g
产品状态
3 - Active
您可能也感兴趣
图纸
Class group
Alarm installations, emergency call and signalling
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Camera for surveillance system
Model
Standard (Fixed)
Standard (Fixed)
Mounting method
Wall
Wall
Scope of application
Universal
Universal
Transmission
Other
Other
Protocol
TCP/IP
TCP/IP
Power over Ethernet (PoE)
802.3 at (PoE+)
802.3 at (PoE+)
Picture system
PAL
PAL
Property picture system
Colour
Colour
Focal size
5,00 - 75,00 mm
5,00 - 75,00 mm
Colour
White
White
Wireless
No
No
Type of interface
Other
Other
Number of pixels (Megapixel)
2
2
Memory capacity
256
256
With lens
Yes
Yes
With infrared lighting
Yes
Yes
Max. infrared reach
150 m
150 m
Number of digital inputs
0
0
Number of digital outputs
0
0
Number of audio inputs
0
0
Number of audio outputs
0
0
Vandal proof
No
No
Impact strength
None
None
With video motion detector
Yes
Yes
Degree of protection (IP)
IP66
IP66
Horizontal field of view
4,00 - 54,00
4,00 - 54,00
Power consumption
22,00 W
22,00 W
Supply voltage
0,10 - 12,01 V
0,10 - 12,01 V
Voltage type
DC
DC
Diameter
173,00 mm
173,00 mm
Height
247,00 mm
247,00 mm
Width
173,00 mm
173,00 mm
Depth
247,00 mm
247,00 mm
Compatible with Apple HomeKit
No
No
Compatible with Google Assistant
No
No
Compatible with Amazon Alexa
No
No
IFTTT support available
No
No
Compliant with ONVIF
Yes
Yes
最小订单数量: 1 NR
条形码
8007352679153
1 NR
32x39x22 [cm]
3,800 [g]
