1P 20AX 2-way switch 2M white - 14006.2

Pdf

14006.2
Wiring devices / Traditional wiring devices / PLANA / Devices

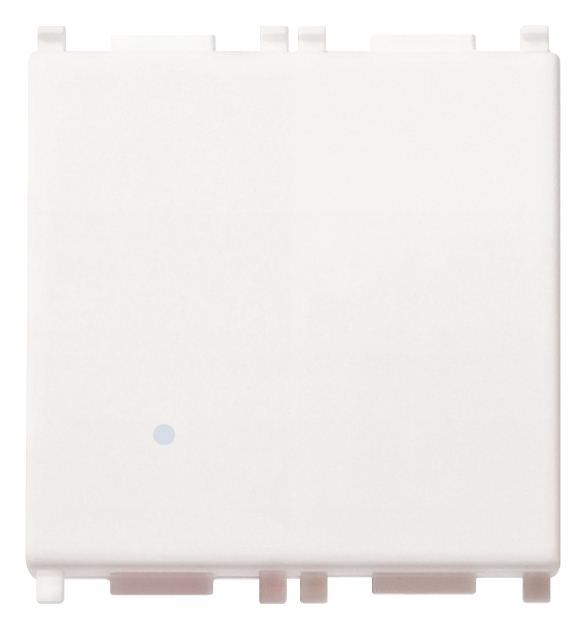

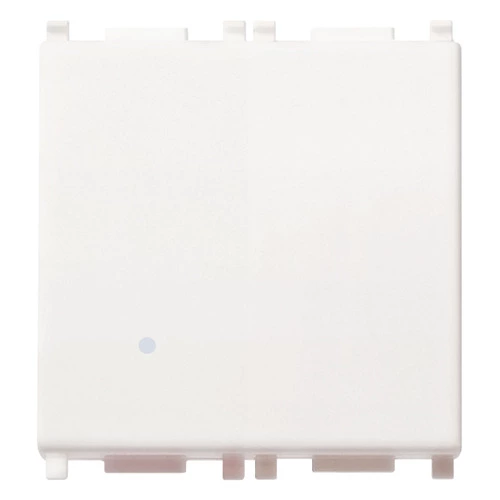

1P 20AX 2-way switch 2M white
1P 20 AX 250 V~ 2-way switch, lightable, replaceable button, white - 2 modules. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
20,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
44,80 mm
Device height
49,00 mm
Device depth
38,40 mm
Built-in depth
24,00 mm

00. CE Marking - EU

19. NOM - Mexico

31. TISI - Thailand

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352404199
1 NR
5.1x4.3x5.3 [cm]
40.1 [g]
Barcode Qty 20 NR
8007352404205
20 NR
26.9x11.6x9 [cm]
881.2 [g]
