Interruptor cruzado 1P 16AX 2M Silver - 14013.2.SL

Pdf
14013.2.SL

Plana Silver / Dispositivos / Dispositivos de mando básicos

Interruptor cruzado 1P 16AX 2M Silver
Interruptor cruzado 1P 16 AX 250 V~, ilu

Estado producto
3 - Activo

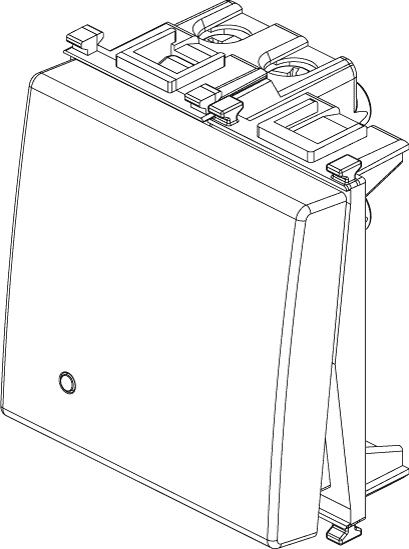

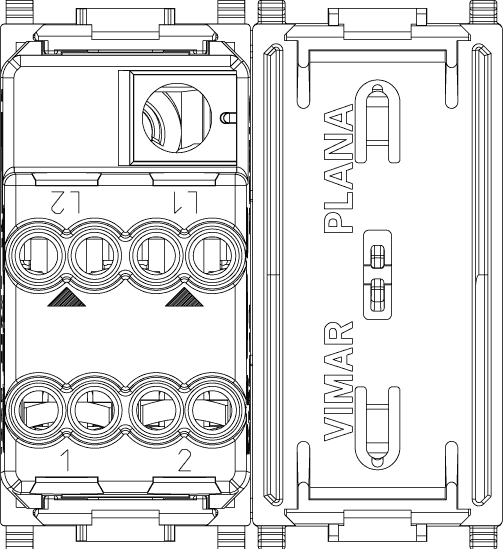

Dibujos

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Intermediate switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No

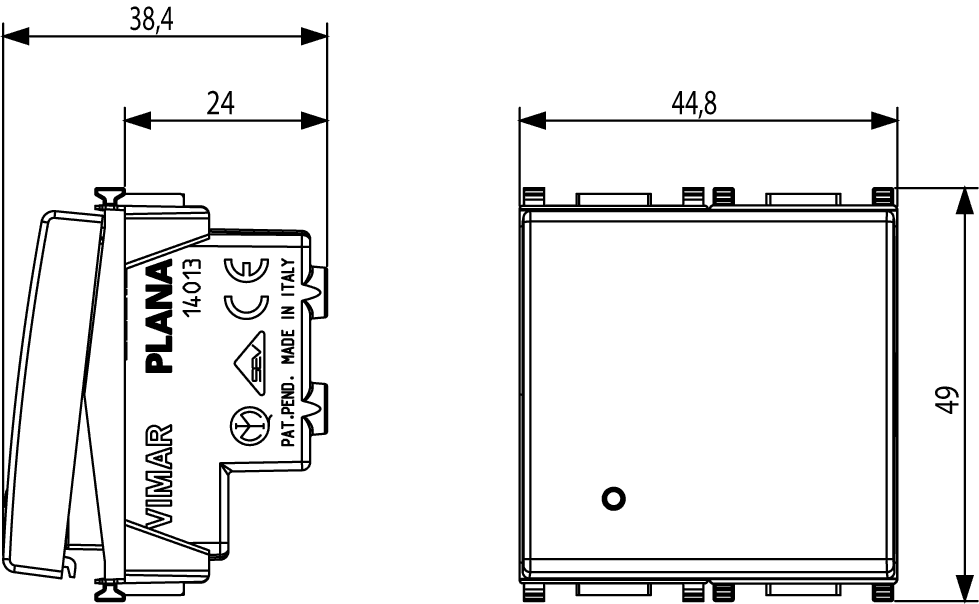

Width of device
44,80 mm
Height of device
49,00 mm
Depth of device
38,70 mm
Built-in depth
24,00 mm

00. Marcado CE - UE

10. EAC Eurasian Customs Union

19. NOM - México

29. QCERT - Colombia

31. TISI - Tailandia

37. Marcado - Marruecos

43. Marca UKCA - Gran Bretaña

Cant. mínima de pedido: 20 NR

Código de barras

Barcode Qty 1 NR
8007352320192
1 NR
5,1x4,3x5,3 [cm]
44,2 [g]
Barcode Qty 20 NR
8007352320208
20 NR
26,9x11,6x9 [cm]
961,33 [g]
Barcode Qty 240 NR
8007352717879
240 NR
38x28,5x35,5 [cm]
11.536,8 [g]
