Interruptor cruzado 1P 16AX Silver - 14013.SL

Pdf
14013.SL

Plana Silver / Dispositivos / Dispositivos de mando básicos

Interruptor cruzado 1P 16AX Silver
Interruptor cruzado 1P 16 AX 250 V~, ilu

Estado producto
3 - Activo

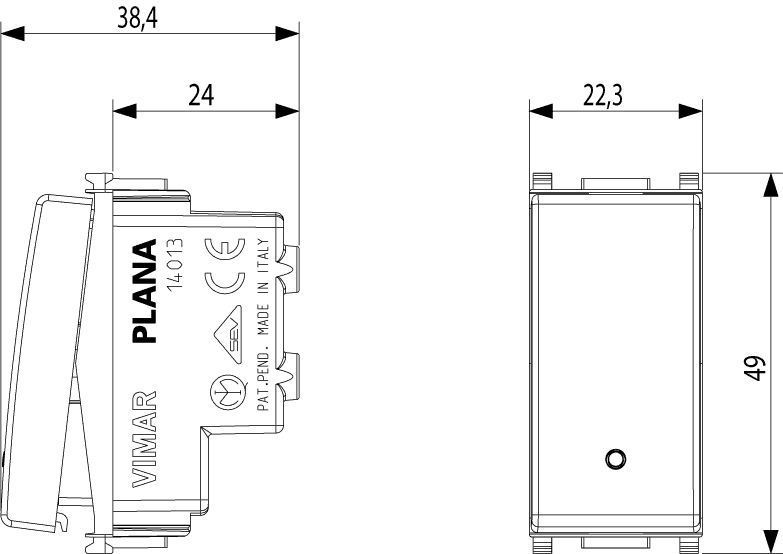

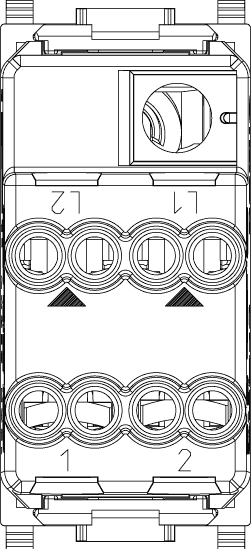

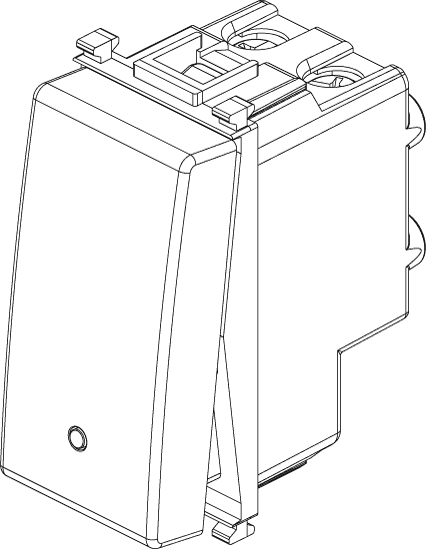

Dibujos

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Intermediate switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
38,70 mm
Built-in depth
24,00 mm

00. Marcado CE - UE

07. INGCER - Chile

10. EAC Eurasian Customs Union

19. NOM - México

29. QCERT - Colombia

31. TISI - Tailandia

37. Marcado - Marruecos

43. Marca UKCA - Gran Bretaña

Cant. mínima de pedido: 50 NR

Código de barras

Barcode Qty 1 NR
8007352320239
1 NR
4,1x2,8x5,3 [cm]
35,1 [g]
Barcode Qty 50 NR
8007352320246
50 NR
21,6x11,6x14,3 [cm]
1.862,07 [g]
Barcode Qty 500 NR
8007352642737
500 NR
57,5x22,5x30 [cm]
19.120 [g]
