Inverseur 1P 16AX carbon matt - 09013.CM

Pdf
09013.CM

Neve Up / Appareils / Appareils de base

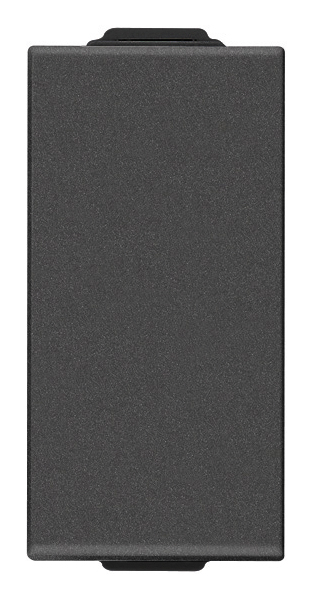

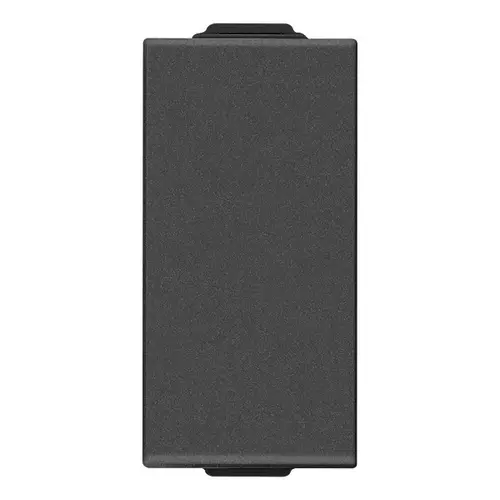

Inverseur 1P 16AX carbon matt
Inverseur 1P 16 AX 250 V~, Carbon Matt. Max 200 W pour lampes autoballastées (IEC 60669-1:2017)

État Produit
3 - Actif

Ceci pourrait également vous intéresser

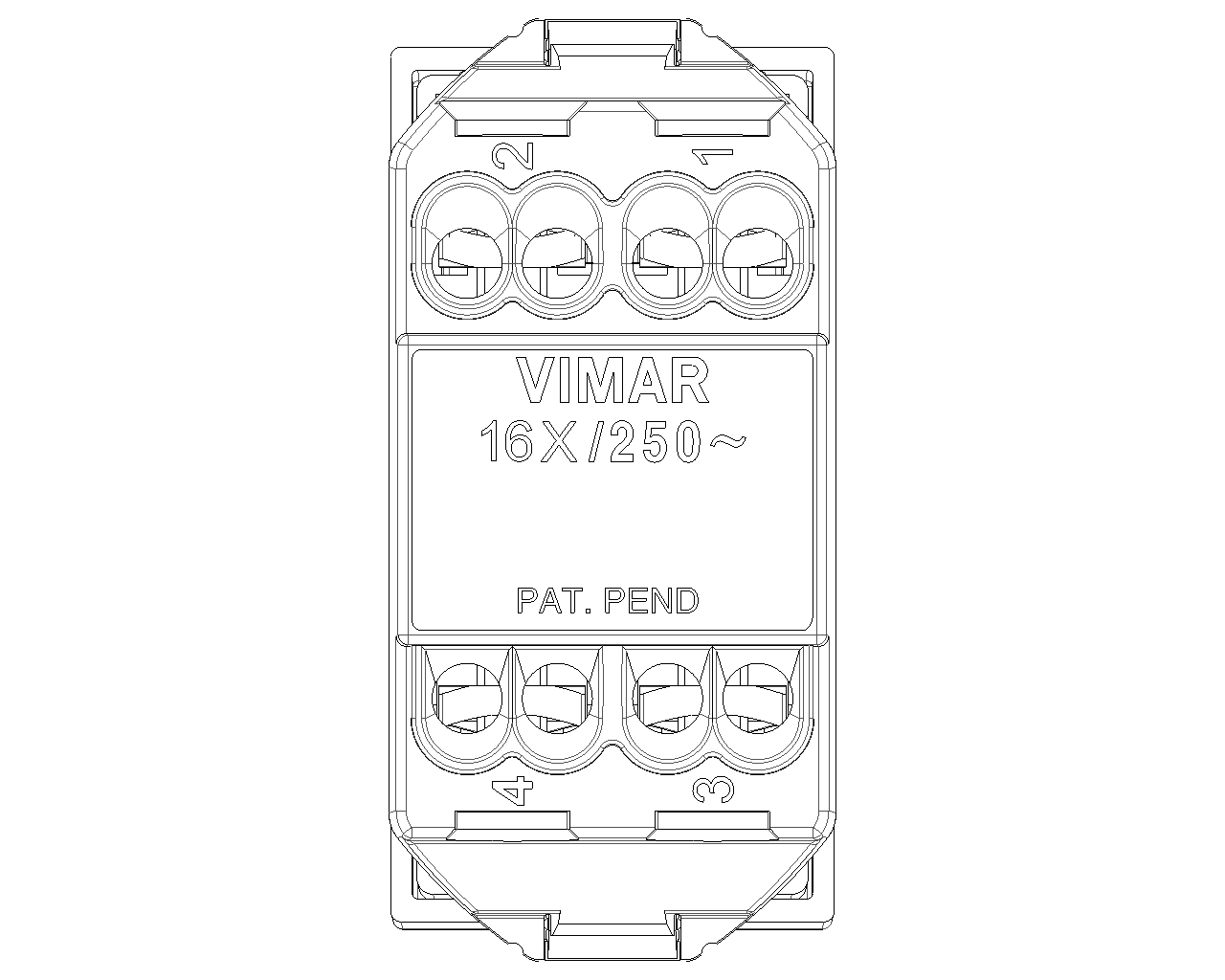

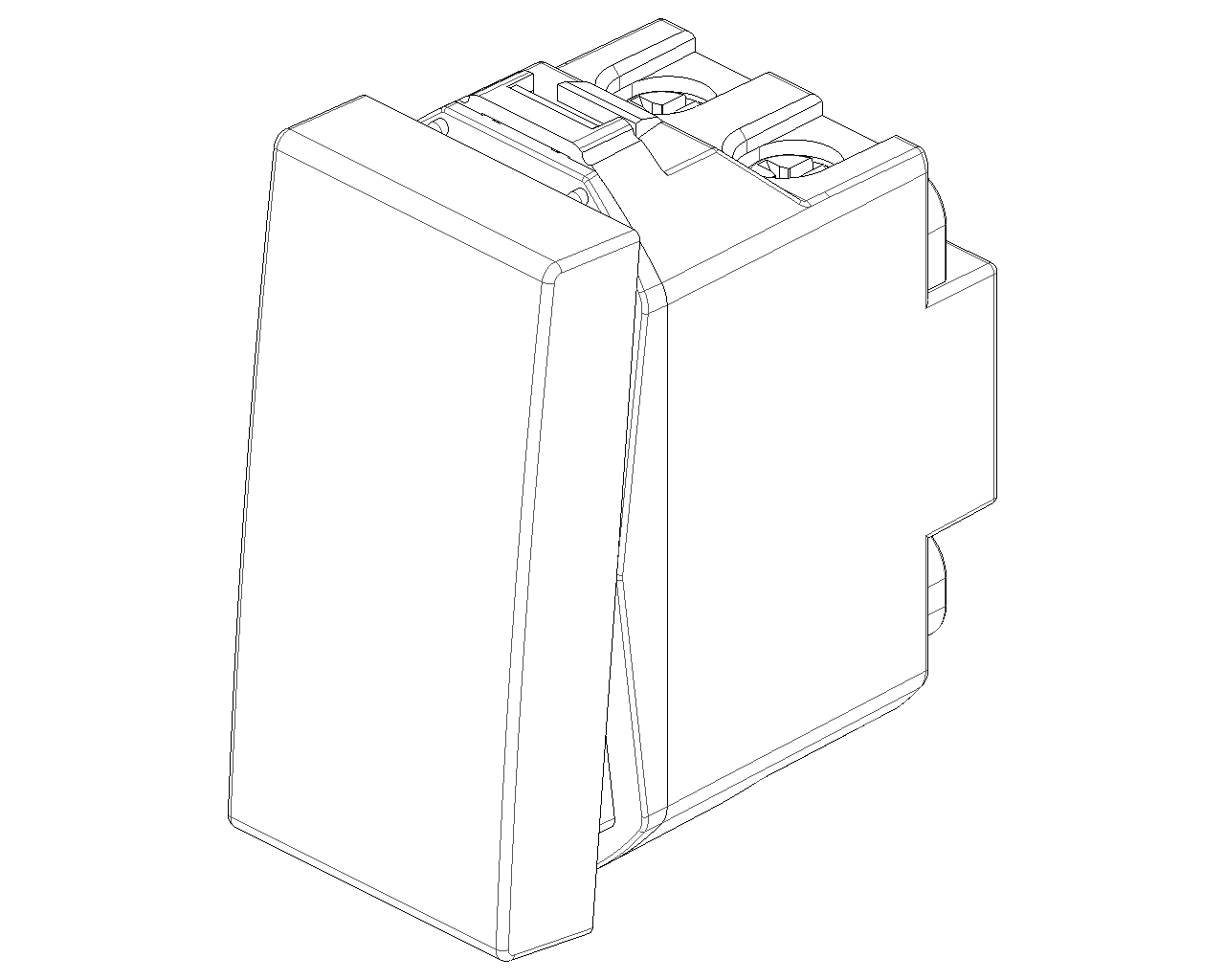

Dessins

Class group
Appareils / Prises pour interrupteurs
Class
Appareillage domestique
Wiring system
Intermediate switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
7016
Label space/information surface
Yes
Function lighting
Control and orientation
Type of lighting
Other
Nominal voltage
250 v
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No

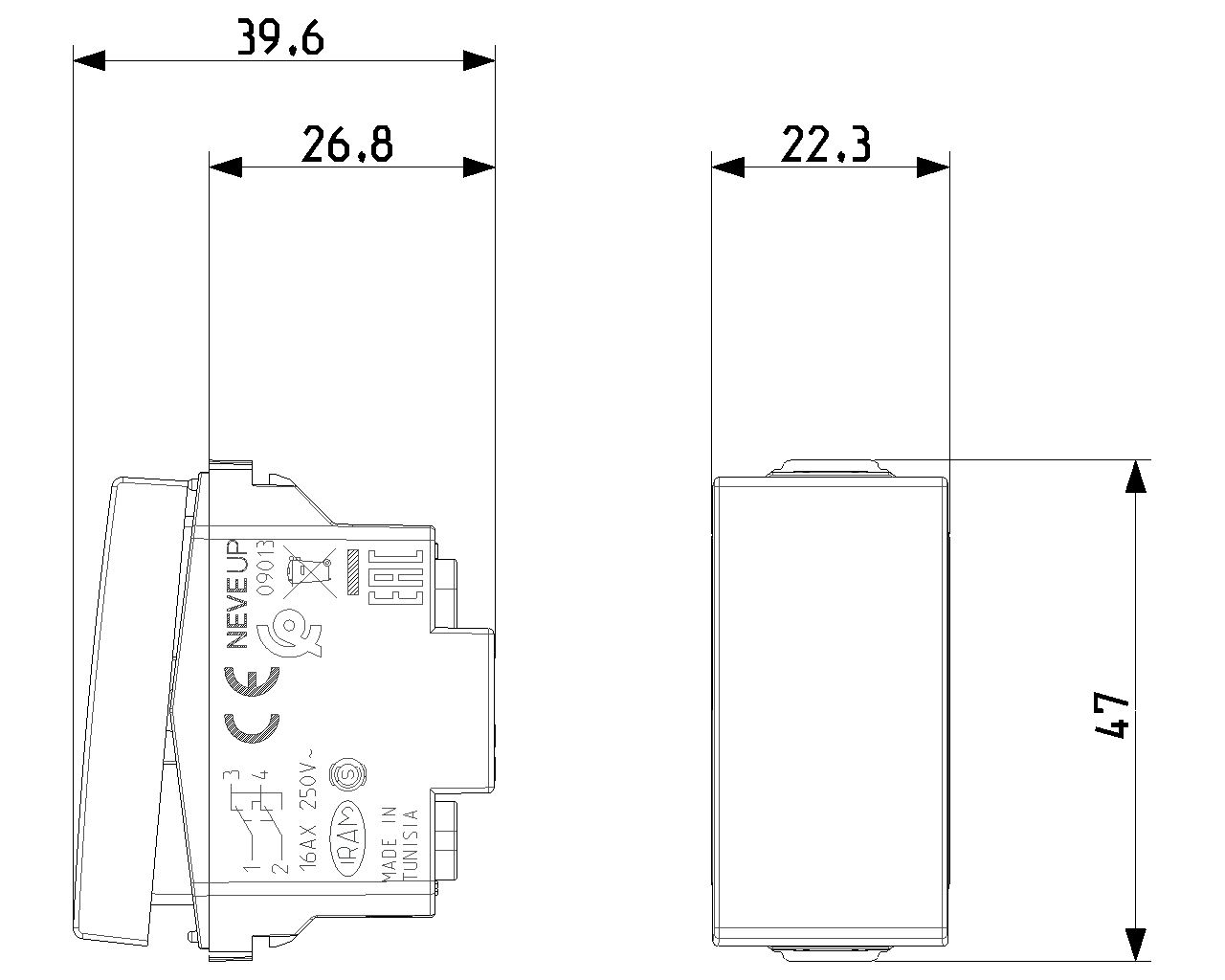

Width of device
22,30 mm
Height of device
47,00 mm
Depth of device
39,60 mm
Built-in depth
26,80 mm

00. Marquage CE - UE

10. EAC Eurasian Customs Union

29. QCERT - Colombie

29. QCERT - Colombie

37. Marquage - Maroc

43. Marque UKCA - GB

Q.té minimum commande: 10 NR

Code barre

Barcode Qty 1 NR
8007352657793
1 NR
4,1x2,8x5,3 [cm]
31,6 [g]
Barcode Qty 10 NR
8007352657809
10 NR
14,4x9x6 [cm]
353,2 [g]
Barcode Qty 160 NR
8007352657816
160 NR
37,5x30x13,5 [cm]
5.984 [g]
