TV-RD-SAT single conn.male outlet carbon - 09300.01.CM

Pdf
Vimar - 09300.01.CM - TV-RD-SAT single conn.male outlet carbon
Vimar - 09300.01.CM - TV-RD-SAT single conn.male outlet carbon
09300.01.CM

Neve Up / Devices / 1-outlet TV/RD/SAT socket outlets

TV-RD-SAT single conn.male outlet carbon
TV-RD-SAT coaxial socket outlet, 5-2400 Mhz, single connection, with male connector, 1 dB connection attenuation, carbon matt. Allows the passage of DC current and control signals (24 V 500 mA max)

产品状态
3 - Active

您可能也感兴趣

09300.10.CM
09300.10.CM - TV-RD-SAT through-line male outlet carbo
09303.CM
09303.CM - TV-FM-SAT single conn. 3outs carbon matt
09318.CM
09318.CM - F-type TV outlet carbon matt
09313.CM
09313.CM - TV IEC single connection outlet carbon m
09302.01.CM
09302.01.CM - TV-RD-SAT single conn.outlet 2outs carbo

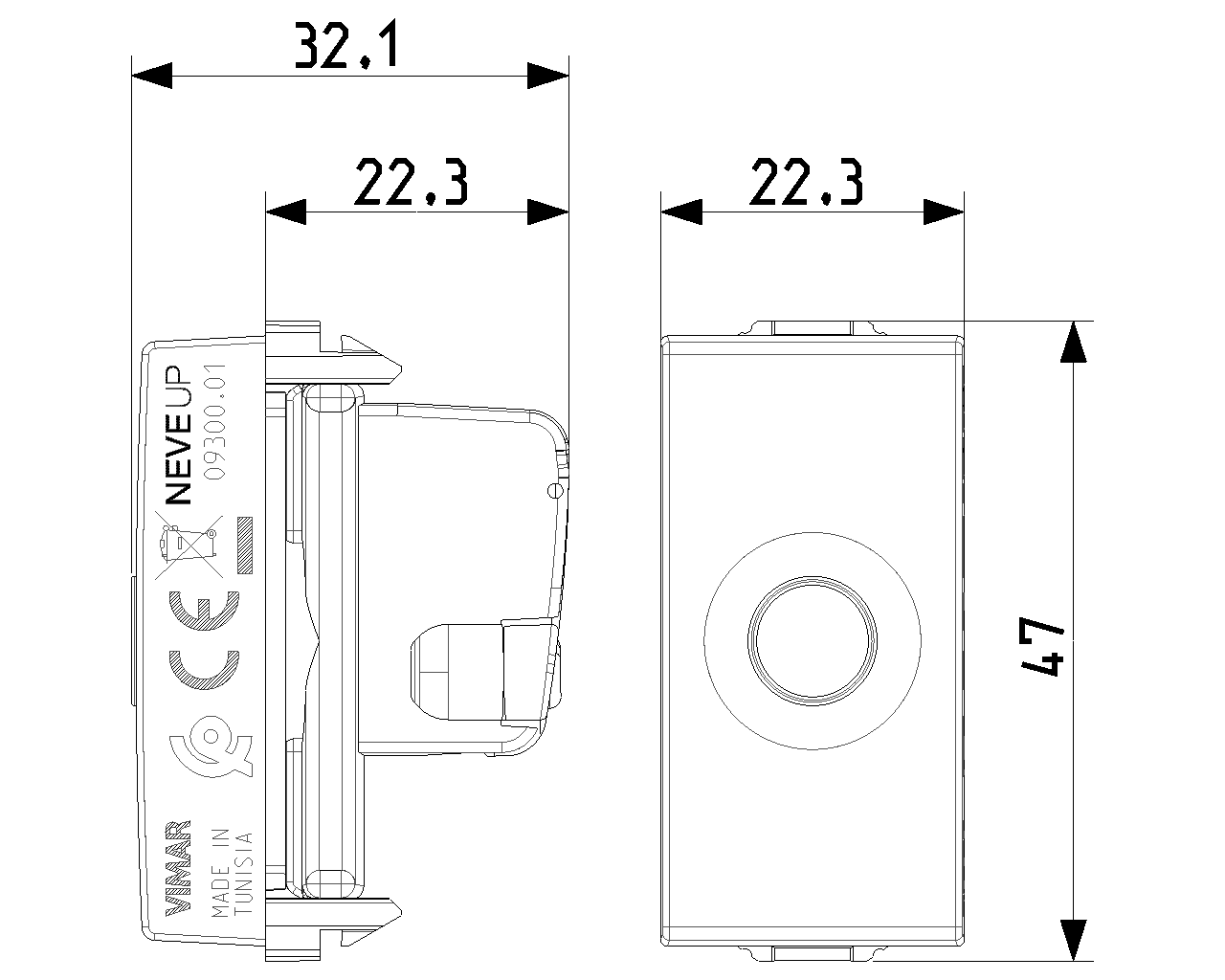

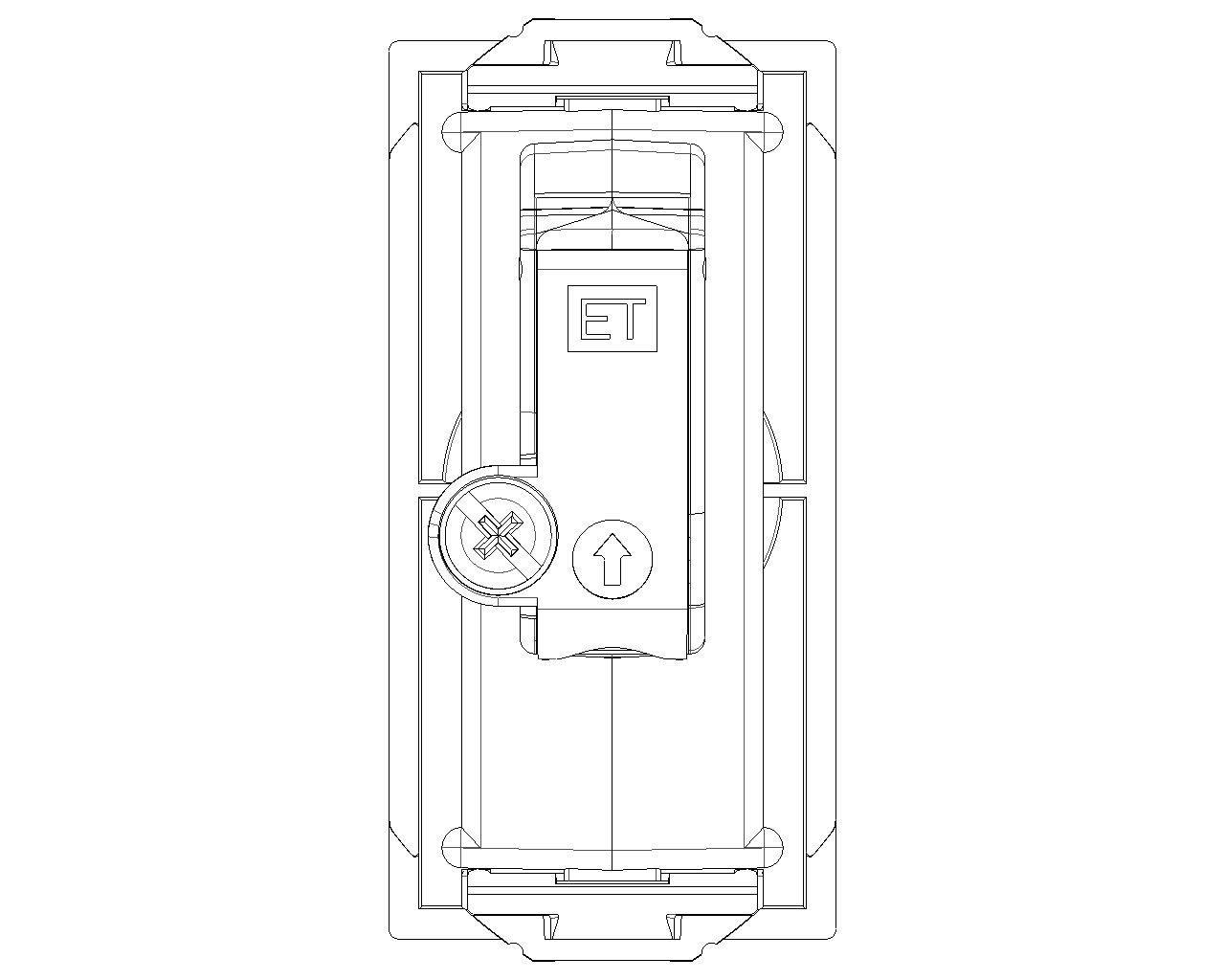

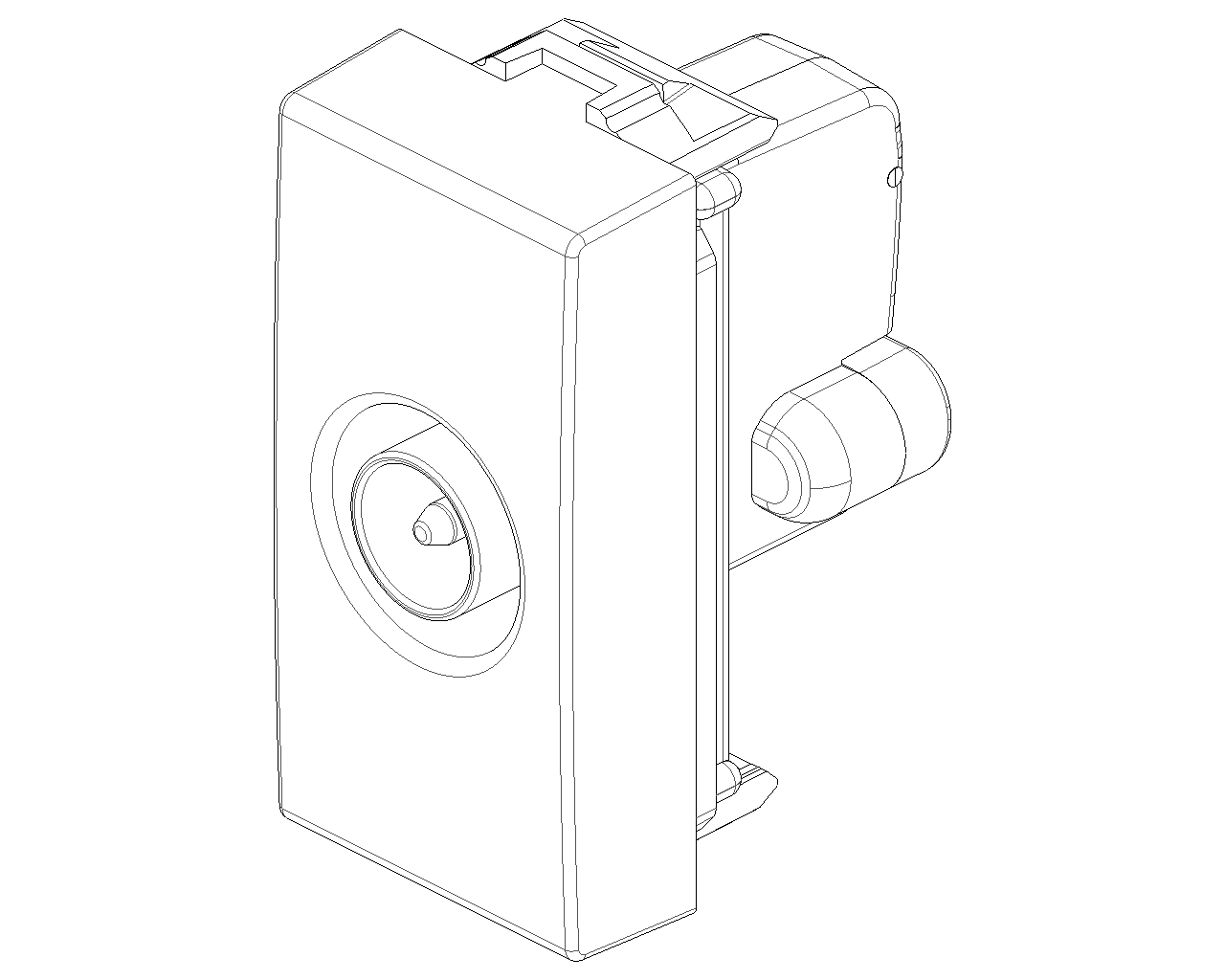

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Antenna and satellite technique
Class
Antenna socket box
Model
End socket
Mounting method
Flush mounted (plaster)
Cover
None
Suitable for remote power supply
Yes
Frequency
5 - 2400 MHz
Colour
Anthracite
RAL-number (similar)
7016
Surface protection
Lacquered
Surface finishing
Matt
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352666726
1 NR
4.1x2.8x5.3 [cm]
39.6 [g]
Barcode Qty 10 NR
8007352666733
10 NR
14.4x9x6 [cm]
433.6 [g]
Barcode Qty 160 NR
8007352666740
160 NR
37.5x30x13.5 [cm]
7,266 [g]
