Classica plate 3M metal white - 16733.01

Pdf
16733.01

Idea / Cover plates / Metal Classica cover plates

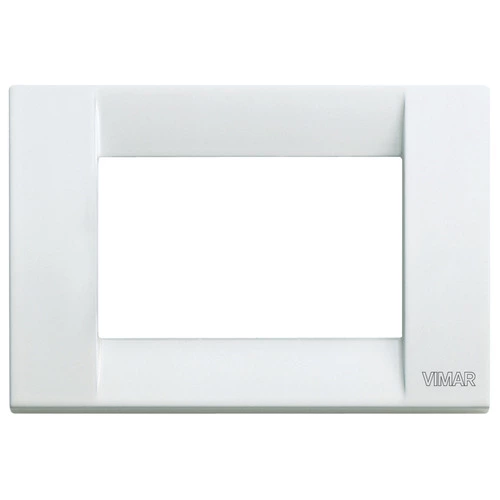

Classica plate 3M metal white
3-module Classica cover plate, die-cast metal, white

产品状态
3 - Active

您可能也感兴趣

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
Number of switch inserts
0
With mounting grid
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9016
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
120,00 mm
Height
82,00 mm
Depth
9,25 mm
Built-in width
120,00 mm
Built-in height
82,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

37. Marking - Morocco

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352028449
1 NR
12.5x8.5x1.1 [cm]
112.81 [g]
Barcode Qty 10 NR
8007352000247
10 NR
13.5x12.4x9.2 [cm]
1,190.33 [g]
Barcode Qty 160 NR
8007352703698
160 NR
50.5x20x28 [cm]
19,485 [g]
问题: Are the Idea Rondo plaques compatible with the devices and mounting supports of the Idea Classic plaques?
回答: The Idea series has devices and mounting supports that can be completed with both Classic plaques and Rondo plaques. The Rondo plaques are not compatible with the following parts (thus require Classic plaques):-16803 and 16806 table mounting box-16813 mounting bracket-09975.A surface mounting box-16570.SZ and 16570.SZ.B mounting support for infrared remote control.
问题: What is the difference between technopolymer and cast metal plaques?
回答: The first are made of plastic with special moulding processes and come in various finishes: glossy, matte SILK soft-touch, satin, wood. The latter are in die-cast metal alloys worked with special technologies and with paint or galvanic deposition surface-finish treatments.
