2P+E 13A English outlet white - 19219.B

Pdf
Vimar - 19219.B - 2P+E 13A English outlet white
Vimar - 19219.B - 2P+E 13A English outlet white

19219.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

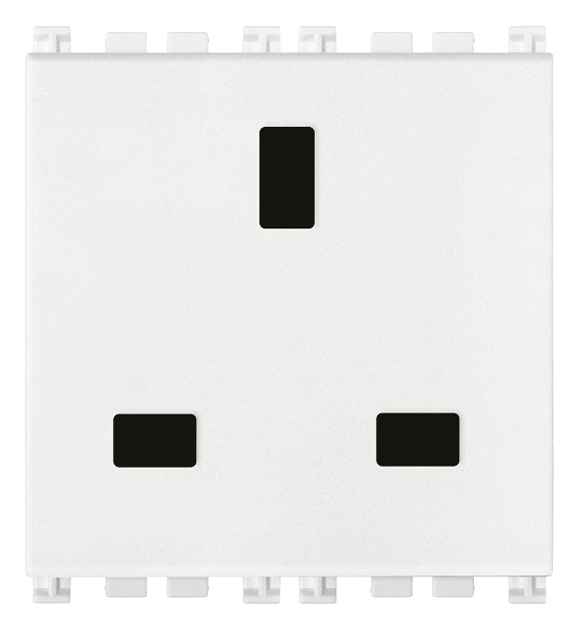

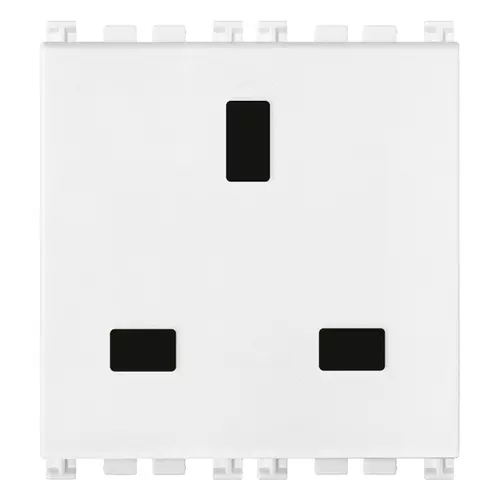

2P+E 13A English outlet white
2P+E 13 A 250 V~ SICURY socket outlet, English standard, white - 2 modules

产品状态
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
British Standard
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9016
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
13 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
44,80 mm
Device height
49,00 mm
Device depth
27,70 mm

00. CE Marking - EU

08. ASTA - UK

10. EAC Eurasian Customs Union

30. G-Mark - Gulf Countries

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

最小订单数量: 20 NR

条形码

Barcode Qty 1 NR
8007352474765
1 NR
5.1x4.3x5.3 [cm]
49 [g]
Barcode Qty 20 NR
8007352474772
20 NR
26.9x11.6x9 [cm]
1,065 [g]
