Classic plate 1M technopolymer grey - 19641.72

Pdf

19641.72
Wiring devices / Traditional wiring devices / ARKÉ / Cover plates

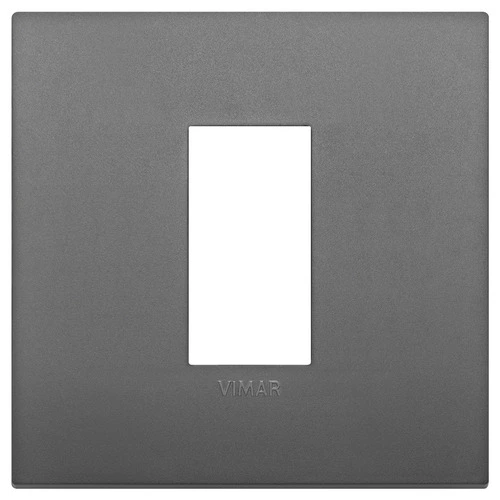

Classic plate 1M technopolymer grey
1-module Classic cover plate, technopolymer, grey

产品状态
3 - Active

您可能也感兴趣

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
1
Mounting direction
Horizontal and vertical
Number of units horizontal
1
Number of units vertical
1
Number of modules horizontal (module system)
1
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
90,00 mm
Height
90,00 mm
Depth
8,60 mm
Built-in width
90,00 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

08. ASTA - UK

29. QCERT - Colombia

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352438910
1 NR
9x9x0.9 [cm]
17.5 [g]
Barcode Qty 10 NR
8007352438927
10 NR
11.4x9.8x10.4 [cm]
216.9 [g]
