Class group
Domestic switching devices
Class

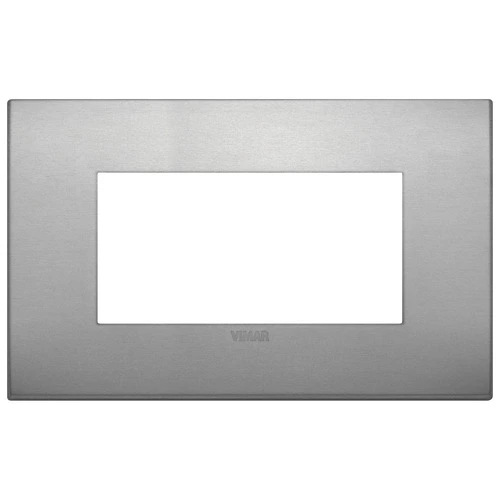

Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
7048
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
90,00 mm
Height
90,00 mm
Depth
8,60 mm
Built-in width
90,00 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm
