Button 1M +diffuser PLS symb.Next

Pdf

20026.PLS.N

Eikon Next / Devices / Basic devices

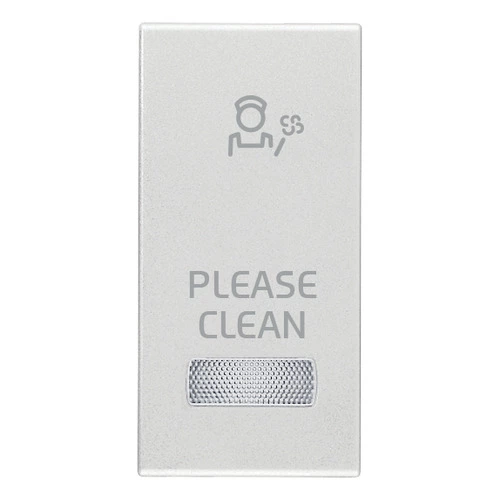

Button 1M +diffuser PLS symb.Next
Interchangeable 1-module button, with lightable diffuser, Please Clean customization, Next

产品状态
3 - Active

图纸

PNG DXF

Class group
Domestic switching devices

Class
Control element/cover plate for domestic switching devices

Model
One-part rocker

Imprint/indication
Various symbols

Utilization
Switch/push button

Suitable for touch sensor connector for bus system
No

Type of fastening
Clamp mounting

Monitoring window/light outlet
Yes

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Lacquered

Surface finishing
Matt

Colour
Silver

RAL-number (similar)
9022

With label area
No

With exchangeable lens/symbol
No

Suitable for degree of protection (IP)
IP40

Depth
600,00 mm

00. CE Marking - EU

29. QCERT - Colombia

43. UKCA mark - Great Britain

96. Electrotechnical expert

最小订单数量: 5 NR

条形码

8007352540583

1 NR

2.2x4.4x0.6 [cm]

3.312 [g]

8007352540590

5 NR

4.1x2.8x5.3 [cm]

16.56 [g]

8007352540606

25 NR

14.2x6.7x5.9 [cm]

114.45 [g]

合法

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。有关产品卡信息的使用条件，请参阅使用条件。
