20592.0
Wiring devices / View Wireless wiring devices / EIKON / Devices
2-way switch IoT connected mechanism

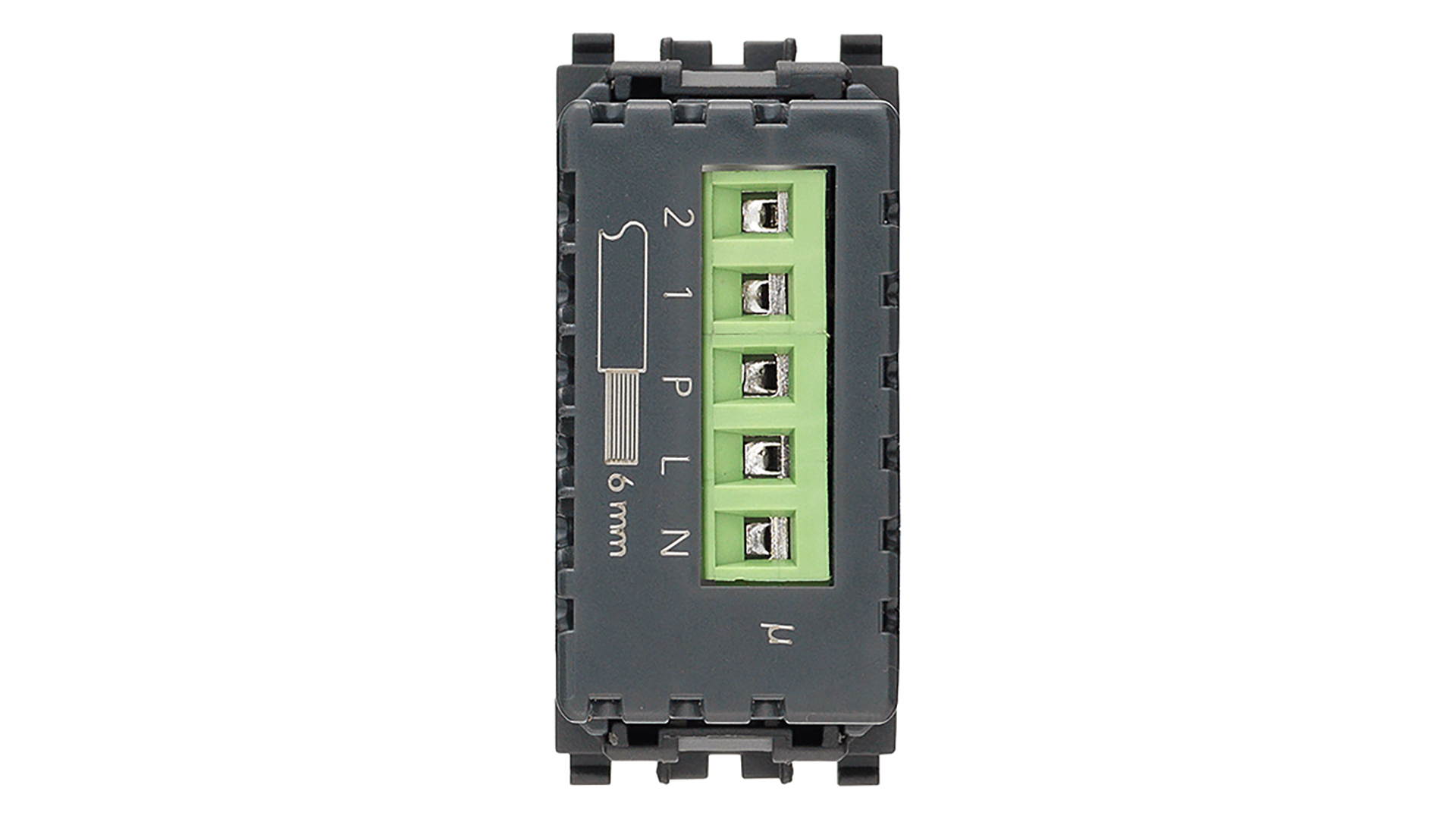

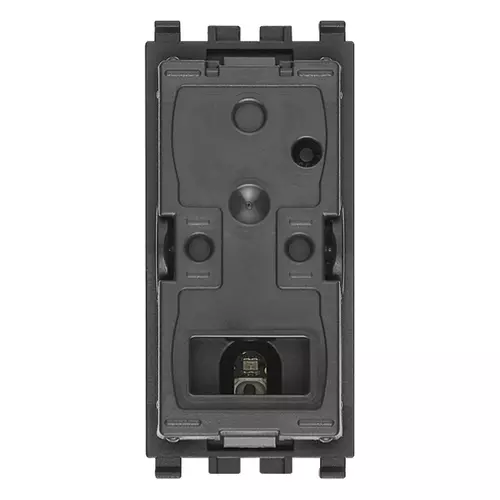

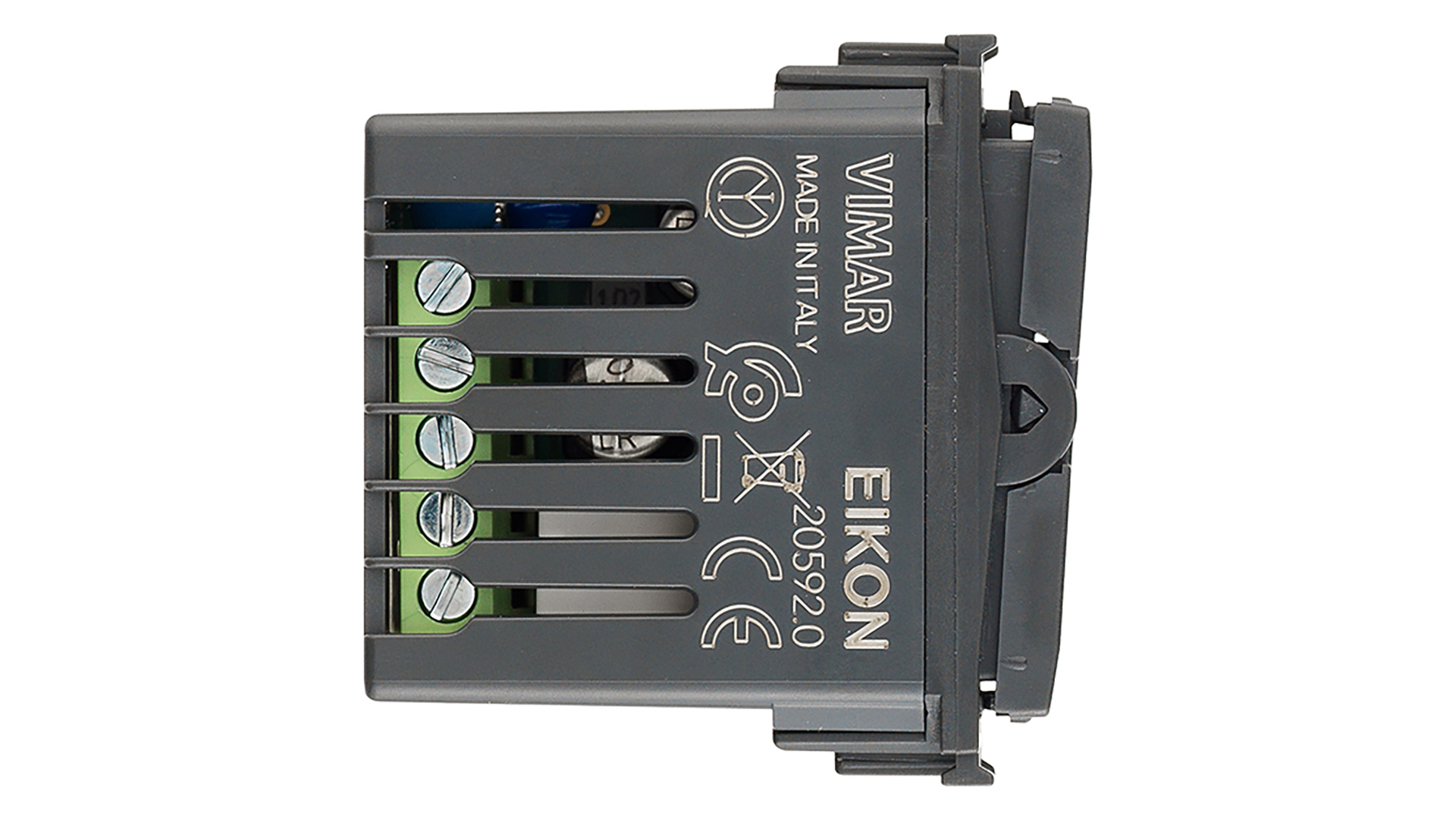

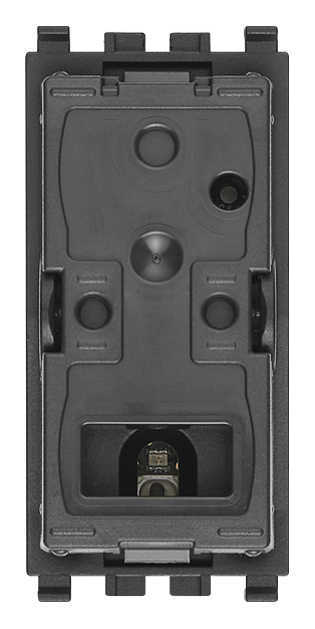

View Wireless connected electronic switch mechanism with 100-240 V 50/60 Hz relay output for 500 W incandescent lamps, 100 W LED lamps, 250 VA electronic transformers, 120 W fluorescent lamps, local or remote control, double technology with Bluetooth® wireless technology 5.0 standard for thecreation of View Wireless mesh system and Zigbee 3.0 standard, 1 input for external button for actuator control or to recall a scenario, RGB LED visible in darkness with brightness control, 100-240 V 50/60 Hz power supply, to be completed with 1-, 2- or 3-module Eikon interchangeable buttons
- Configuration from View Wireless App for Bluetooth technology system and Amazon App for Zigbee technology
- Compatible with Alexa, Google Home and IFTTT, using the dedicated gateway or Zigbee hub
产品状态
3 - Active
您可能也感兴趣
单, 说明书, 文档
- Light multilanguage instructions sheet (1220 kb)
- Foglio istruzioni Full (776 kb)
- Feuille d’instructions Full (777 kb)
- Hoja de instrucciones Full (775 kb)
- Full instructions sheet (772 kb)
- Φυλλάδιο οδηγιών Full (919 kb)
- Anweisungsblatt Full (777 kb)
- Anweisungsblatt Full (844 kb)
- Manuale app View Wireless (19181 kb)
- Manual View Wireless app (40958 kb)
- Manual app View Wireless (40735 kb)
- Installationsanleitung View Wireless (40757 kb)
- Manuel appli View Wireless (40963 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (41171 kb)

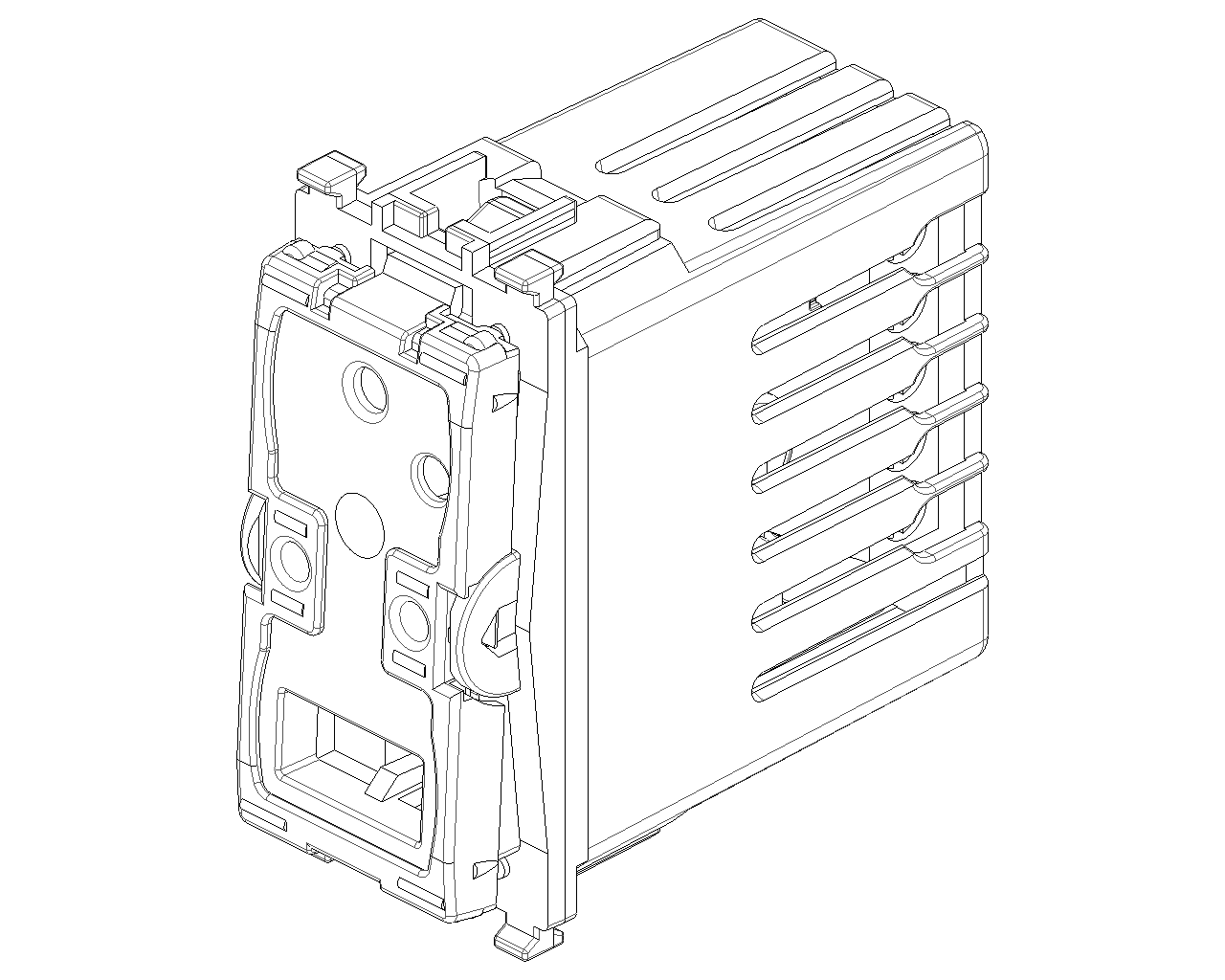

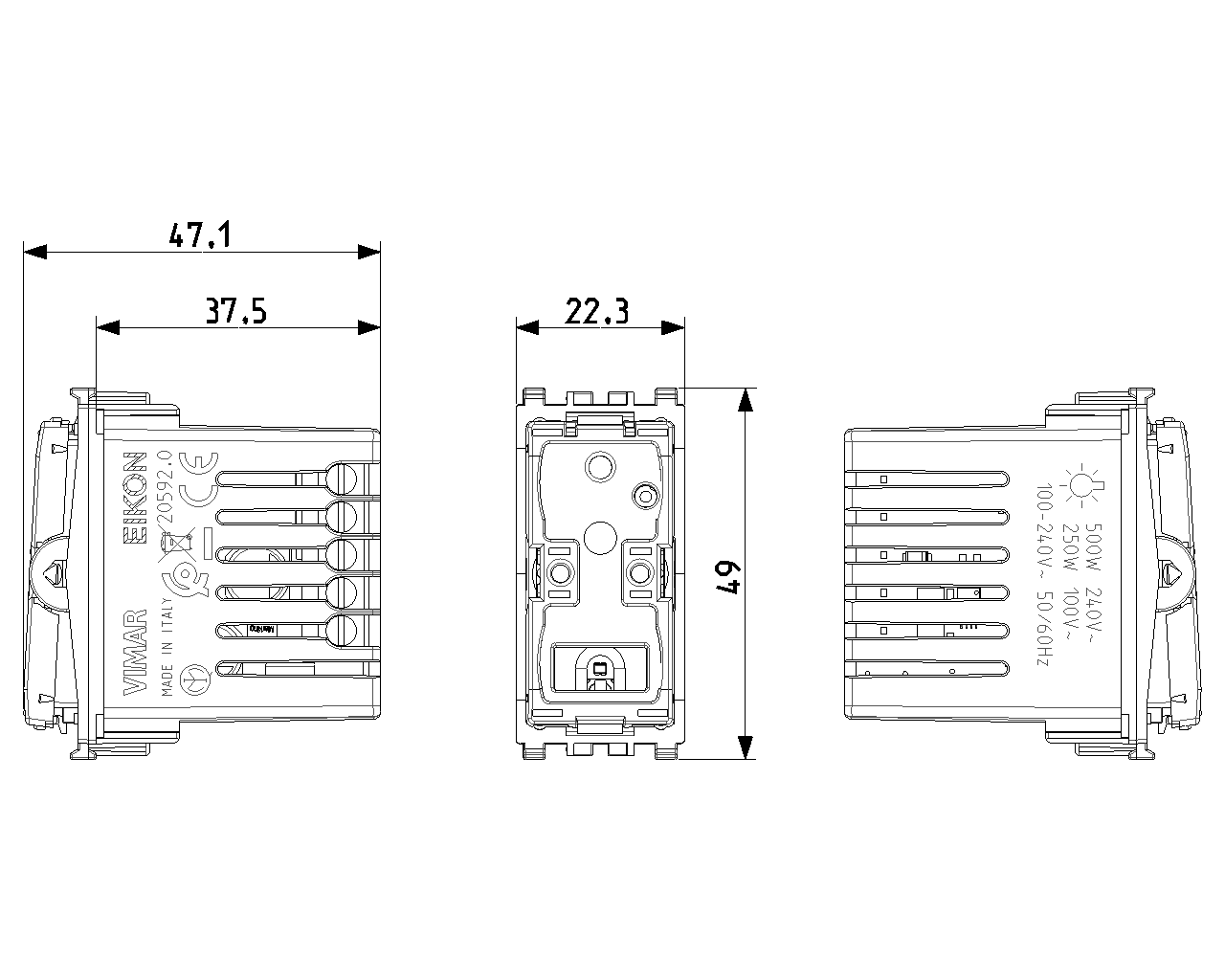

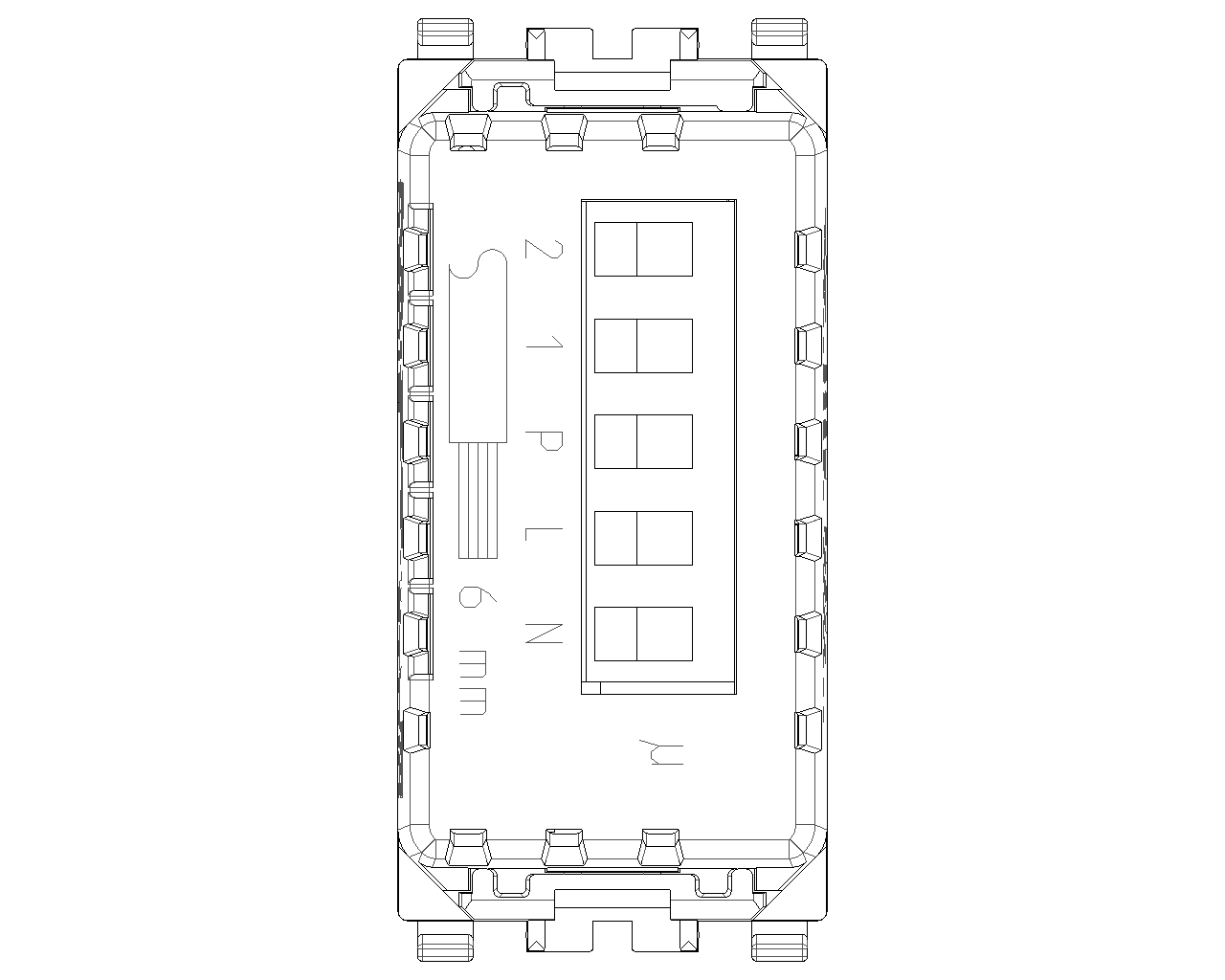

图纸
Class group
Installation bus systems
Installation bus systems
Class
Switch actuator for bus system
Switch actuator for bus system
Bus system KNX
No
No
Bus system KNX-RF (Radio Frequency)
No
No
Bus system radio frequency
Yes
Yes
Bus system LON
No
No
Bus system Powernet
No
No
Other bus systems
Zigbee
Zigbee
Radio frequency bidirectional
Yes
Yes
Mounting method
Built-in installation
Built-in installation
Width in number of modular spacings
0
0
Local operation/hand operation
Yes
Yes
With LED indication
Yes
Yes
19. NOM - Mexico
29. QCERT - Colombia
37. Marking - Morocco
37. Marking - Morocco
40. Bluetooth technology
42. Zigbee certified
92. RoHS UAE
最小订单数量: 1 NR
条形码
8007352628366
1 NR
5.2x3.5x5.3 [cm]
38.8 [g]
8007352628373
60 NR
27x23x12.5 [cm]
2,518 [g]
| 问题： | How can I reset the connected 1-way switch and then associate it with my system via the Bluetooth mesh? |
|---|---|
| 回答： | To reset the device, turn off the power supply to the device and turn it back on, then press the front control for approximately 30 seconds, until the front LED, which is flashing blue, changes colour and flashes white; at this point, release the control and wait for the LED to turn off. |
| 问题： | How many devices can I install in a Wireless system? |
| 回答： | The system allows the configuration of a maximum of 64 devices for each gateway code 14597-16497-19597-20597 |
| 问题： | Which App is dedicated to system configuration? |
| 回答： | The system can be configured using the View Wireless App. |
| 问题： | How do you reset the devices? |
| 回答： | Resetting is done by pressing the configuration push button for a prolonged amount of time, which must be done within 5 min of commissioning (powering) the product. |
| 问题： | With which physical devices can I activate a scenario control in the connected system? |
| 回答： | Mechanical push buttons connected to connected devices which envisage the function or using the radio control 03925. |
| 问题： | How many Energy meters art.02963 can I install in a Wireless system? |
| 回答： | Each connected system allows a maximum of 2 meters art.02963. |
| 问题： | In a room with several controls (1-way switches/push buttons) operating the same light device, can I replace just one of them? |
| 回答： | Yes, replacing a single control with art. 14592-16492-19592-20592 is enough. The device instructions include the wiring diagrams for the system with multi-way/two-way switches or push buttons(i.e. controls of a light from more than one point). |
| 问题： | Can the connected 2-way switch art.14592-19492-19592-20592 be used as a 1-way switch for a controlled socket outlet |
| 回答： | No, as a minimum load of 2W is necessary for correct operation. To manage a controlled socket outlet, you can use art. 14593-16493-19593-20593 or art. 03981 |
| 问题： | Using the Alexa assistant, fitted with Zigbee hub, can I control the Vimar connected 1-way switch via the Amazon App or do I also need the gateway art. 14597-19597-20597-16497? |
| 回答： | If you want to use the IoT connected simple actuator or roller shutters with Alexa (fitted with built-in ZigBee Hub), you do not need the Vimar gateway as the configuration and management of our products will be governed directly by Alexa’s ZigBee hub via the dedicated Amazon App; |
| 问题： | Can the connected 2-way switch also be used to adjust the light intensity in the case of dimmable LED strips? |
| 回答： | The product is designed to manage solely in on-off mode of a load, so the desired application is not feasible. |
