Classic plate 2MBS Glass silver mirror - 20647.C81

Pdf

20647.C81
Wiring devices / Traditional wiring devices / EIKON / Cover plates

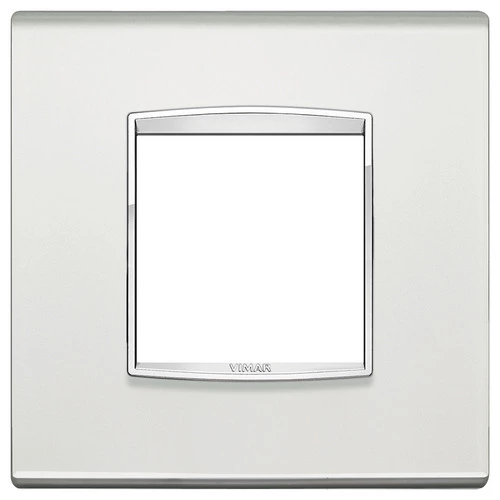

Classic plate 2MBS Glass silver mirror
2-module Classic cover plate for British standard, Glass crystal and chromed frame, silver mirror

产品状态
2 - Will be discontinued

您可能也感兴趣

图纸

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Glass
Material quality
Glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9023
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
94,80 mm
Height
94,80 mm
Depth
9,70 mm
Built-in width
94,80 mm
Built-in height
94,80 mm
Diameter bore hole (opening)
0 mm

08. ASTA - UK

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352477995
1 NR
13x11.4x3.3 [cm]
107.3 [g]
