Plate 8M Next - 22668.02

Pdf

22668.02
Wiring devices / Traditional wiring devices / EIKON / Cover plates

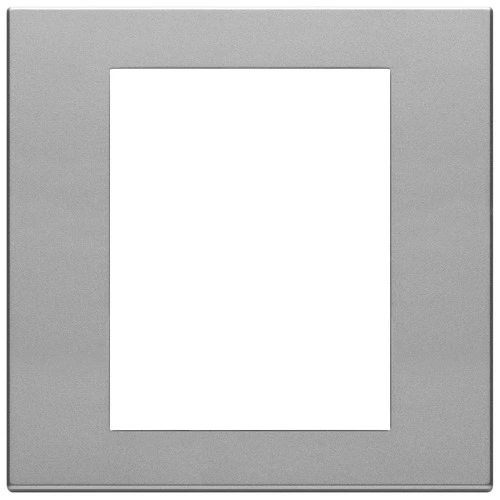

Plate 8M Next
8 (4+4)-module cover plate, metal Total Look, Next

产品状态
3 - Active

您可能也感兴趣

图纸

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
8
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
2
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
2
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
7042
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
156,10 mm
Height
156,10 mm
Depth
8,40 mm
Built-in width
156,10 mm
Built-in height
156,10 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

29. QCERT - Colombia

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352608757
1 NR
18.5x18.4x2.2 [cm]
353.8 [g]
