Sound System 120V power supply unit - 6680.120

Pdf

6680.120
ELVOX Door entry system / Multi-wire video entry system / Shared A/V components / System components

Sound System 120V power supply unit
Power supply unit for Sound System video door entry system with 13 VDC, 15V, 18 VDC outputs, 120 V~ 50/60 Hz 60 VA power supply, installation on DIN rail (60715 TH35), occupies 12 modules size 17.5 mm

产品状态
3 - Active

Class group
Communication technique
Class
Power supply door communication
Application
Other
Input voltage
120 V

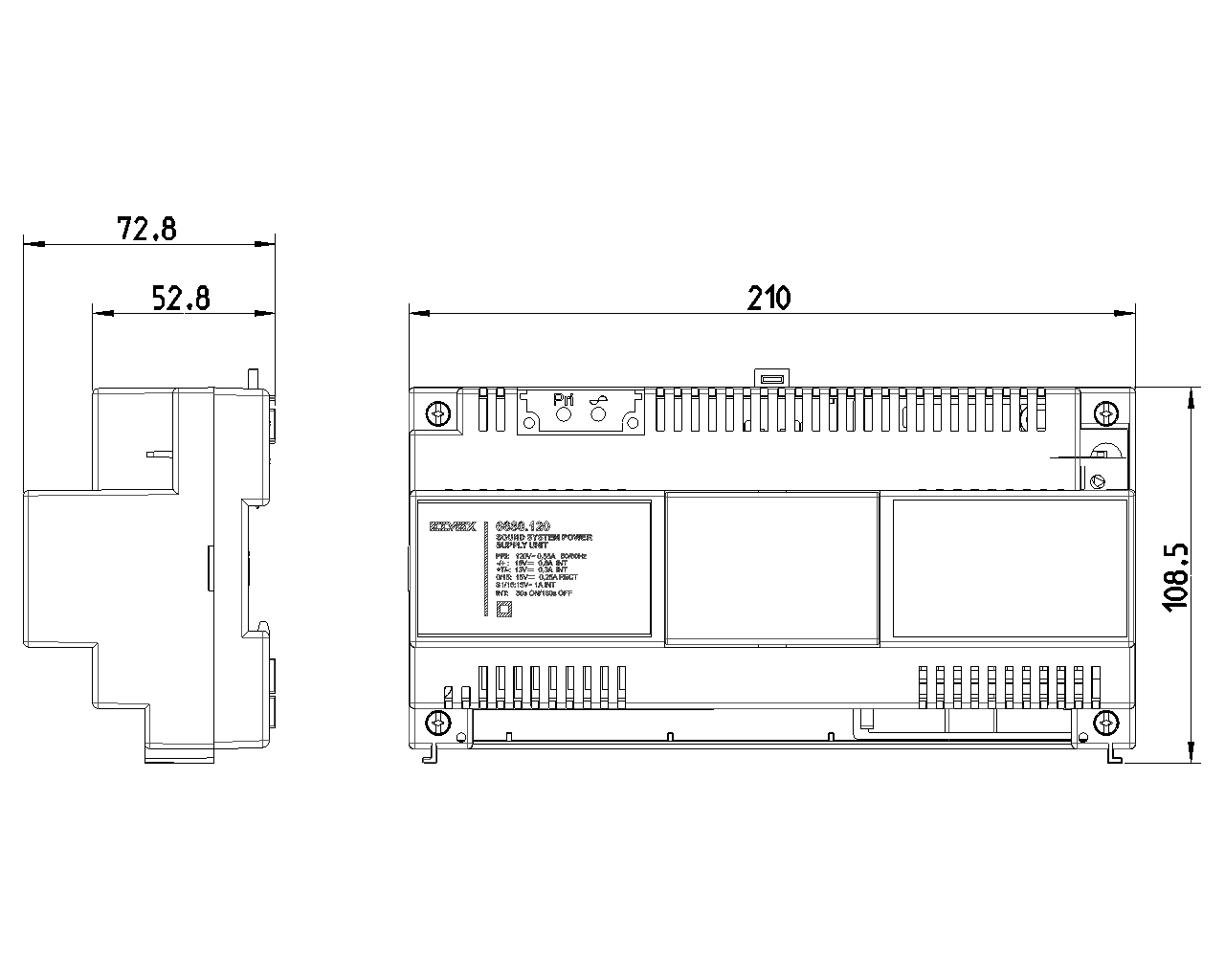

Height
114,00 mm
Width
210,10 mm
Installation technique
Other
Integrated door opening circuit
Yes
Control function
No
Evaluation function
No
Service indication
No
Mounting method
Other
Programming lock
No

00. CE Marking - EU

43. UKCA mark - Great Britain

99. WEEE Directive

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352667785
1 NR
24.4x13.9x8.4 [cm]
1,635 [g]
