Window chain operator 230V~ 300N black - EG30/N

Pdf
Vimar - EG30/N - Window chain operator 230V~ 300N black
Vimar - EG30/N - Window chain operator 230V~ 300N black

EG30/N
Safety / ELVOX Automations / Motors / Windows and doors

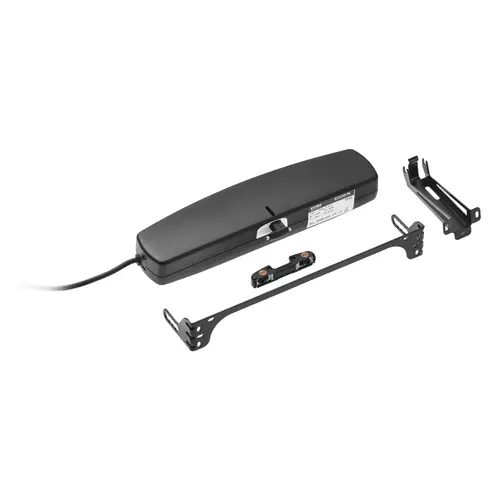

Window chain operator 230V~ 300N black
230 V~ operator with double articulated chain for window motorisation, maximum load 300 N, limit can be set to 200 or 380 mm, complete with support and accessories for tilt, top-hung and dome models, black

Product Status
3 - Active

Sheets, Manuals, Documentation

Class group
Gate operators, pumps and ventilators
Class
Window opener
Push force
300 N
Max. opening
380 mm
Degree of protection (IP)
IP30
Housing
Other
Width
335 mm
Height
101 mm
Length
49 mm

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8013406205483
1 NR
41x17.5x6.5 [cm]
1,760 [g]
