09240
Neve Up / Dispositivos / Tomas - otros estándares

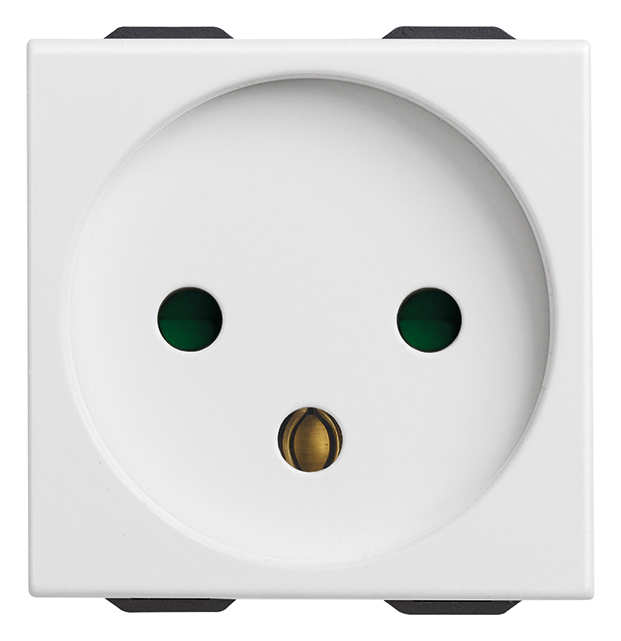

Toma SICURY 2P+T 16A israelí blanco
Toma de corriente SICURY 2P+T 16 A 250 V~, estándar israelí, blanco - 2 módulos
Estado producto
3 - Activo
Class group
Domestic switching devices
Class
Socket outlet
Model
Other
With built-in USB power supply
No
Number of modules (module syst
2
Number of socket outlets switc
0
Imprint/indication
Without imprint

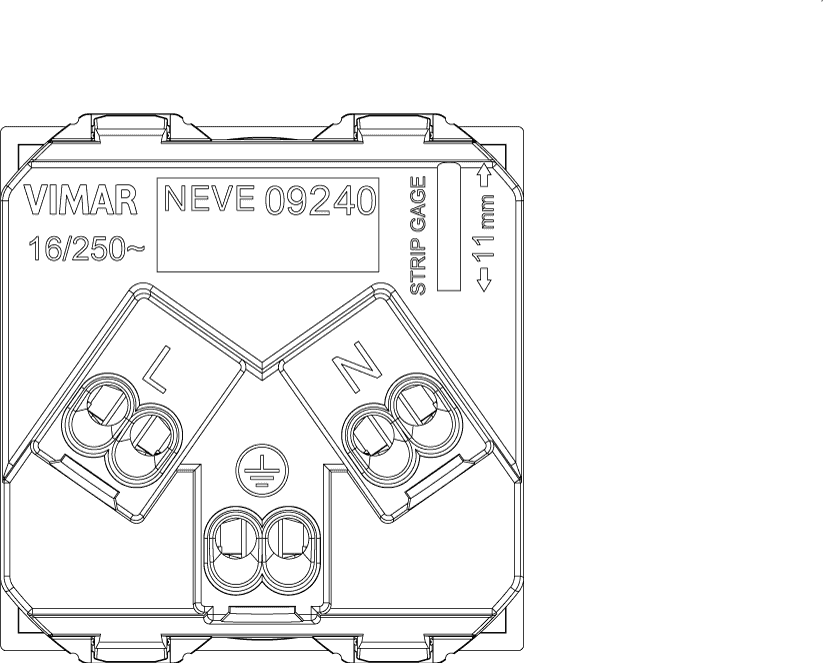

Connection type
Screwed terminal
With hinged lid
No
With child-protection
Yes
Label space/information surfac
Yes
Colour
White
RAL-number (akin)
9003
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 v
Frequency
50,00 - 60,00 HZ
Suitable for degree of protect
IP20
For heavy conditions (in accor
No
Impact strength
Other

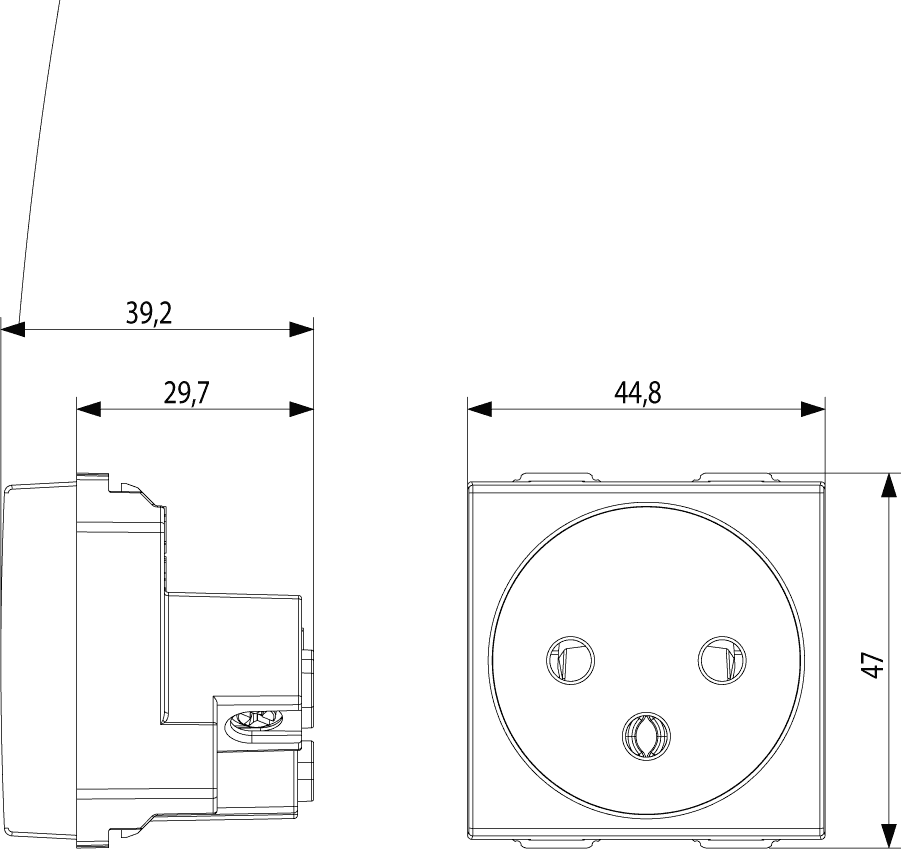

Width of device
44,80 mm
Height of device
47,00 mm
Depth of device
39,20 mm
Cant. mínima de pedido: 20 NR
Código de barras
8007352408067
1 NR
5,1x4,3x5,3 [cm]
41 [g]
8007352408074
20 NR
26,9x11,6x9 [cm]
898,8 [g]
8007352420014
240 NR
38x28x35,5 [cm]
11.274 [g]
Vimar se reserva el derecho de cambiar en cualquier momento y sin previo aviso las características de los productos reportados. La instalación debe ser realizada por personal cualificado cumpliendo con las disposiciones en vigor que regulan el montaje del material eléctrico en el país donde se instalen los productos. Para las condiciones de uso de la información de la ficha del producto, consulte condiciones de uso.
