Plate 7M techn. granite white - 14657.06

Pdf
14657.06

Plana / Cover plates / Snap fixing technopolymer cover plates

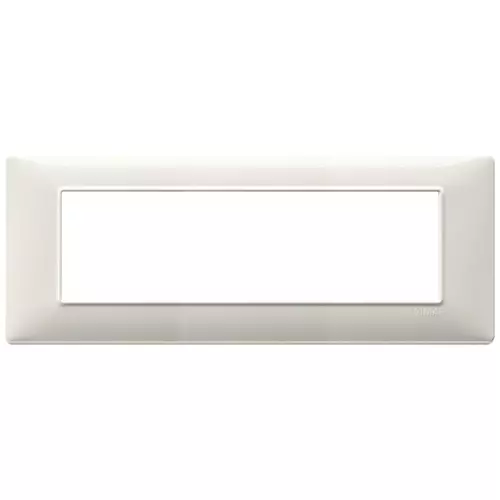

Plate 7M techn. granite white
7-module cover plate, technopolymer, granite white

产品状态
3 - Active

您可能也感兴趣

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
7
Mounting direction
Horizontal and vertical
Number of units horizontal
7
Number of units vertical
1
Number of modules horizontal (module system)
7
Number of modules vertical (module system)
1
Number of gangs
0
With mounting grid
Yes
Suitable for flush-mounted installation
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
No
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (akin)
9001
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
206,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
206,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm
最小订单数量: 5 NR

条形码

Barcode Qty 1 NR
8007352113978
1 NR
25.6x8x0.9 [cm]
30.2 [g]
Barcode Qty 5 NR
8007352113985
5 NR
24.2x10.3x5.7 [cm]
195.6 [g]
