Plate 7M Reflex orange - 14657.48

Pdf

14657.48
Wiring devices / Traditional wiring devices / PLANA / Cover plates

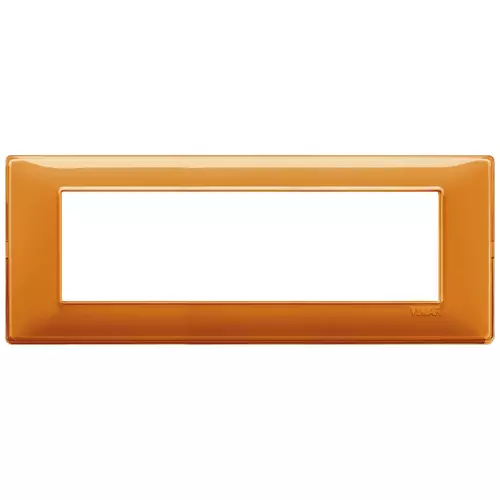

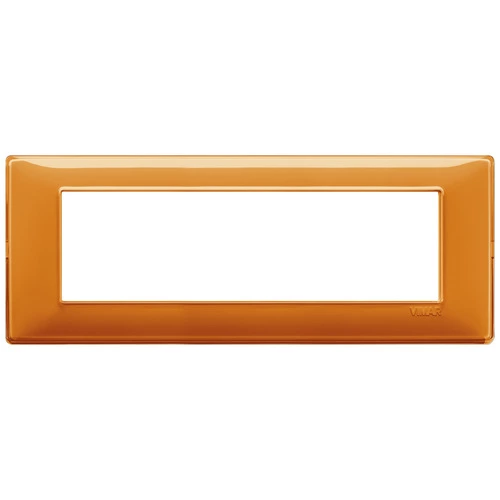

Plate 7M Reflex orange
7-module cover plate, technopolymer, Reflex orange

产品状态
3 - Active

您可能也感兴趣

图纸

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
7
Mounting direction
Horizontal and vertical
Number of units horizontal
7
Number of units vertical
1
Number of modules horizontal (module system)
7
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Plastic glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Orange
RAL-number (similar)
2011
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
206,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
206,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

29. QCERT - Colombia

43. UKCA mark - Great Britain

最小订单数量: 5 NR

条形码

Barcode Qty 1 NR
8007352133082
1 NR
25.6x8x0.9 [cm]
36.2 [g]
Barcode Qty 5 NR
8007352133099
5 NR
24.2x10.3x5.7 [cm]
229.13 [g]
