Classica plate 3M techn. Idea white - 16743.04

Pdf

16743.04
Wiring devices / Traditional wiring devices / IDEA / Cover plates

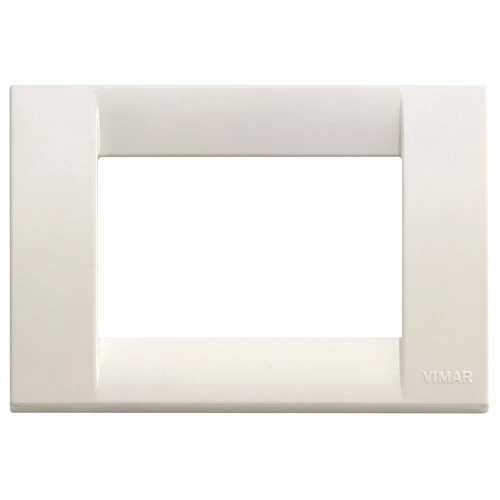

Classica plate 3M techn. Idea white
3-module Classica cover plate, technopolymer, Idea white

产品状态
3 - Active

您可能也感兴趣

图纸

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9001
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
120,00 mm
Height
82,00 mm
Depth
8,90 mm
Built-in width
120,00 mm
Built-in height
82,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

43. UKCA mark - Great Britain

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352032484
1 NR
12x8x0.9 [cm]
18.47 [g]
Barcode Qty 10 NR
8007352032545
10 NR
14.1x9.8x9.9 [cm]
236.67 [g]
Barcode Qty 480 NR
8007352635258
480 NR
59x39x31.5 [cm]
13,600 [g]
问题: What is the difference between technopolymer and cast metal plaques?
回答: The first are made of plastic with special moulding processes and come in various finishes: glossy, matte SILK soft-touch, satin, wood. The latter are in die-cast metal alloys worked with special technologies and with paint or galvanic deposition surface-finish treatments.
