Classica plate 1-2M metal met.bronze - 17092.22

Pdf

17092.22
Wiring devices / Traditional wiring devices / IDEA / Cover plates

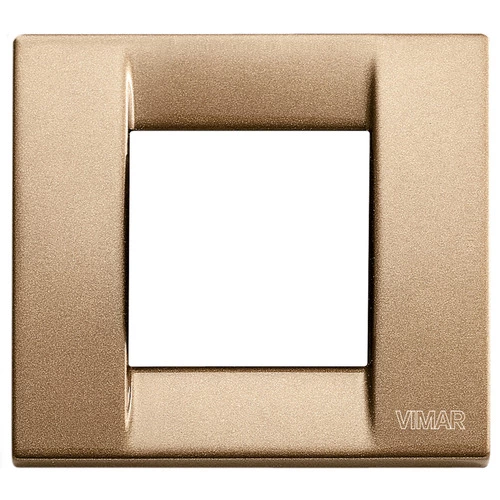

Classica plate 1-2M metal met.bronze
1-module or 2-reduced-module Classica cover plate, die-cast metal, metallized bronze

产品状态
2 - Will be discontinued

您可能也感兴趣

图纸

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Bronze
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
88,00 mm
Height
80,00 mm
Depth
9,00 mm
Built-in width
88,00 mm
Built-in height
80,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

43. UKCA mark - Great Britain

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352034075
1 NR
8.5x9.1x1.1 [cm]
87.33 [g]
Barcode Qty 10 NR
8007352006362
10 NR
9.9x12.4x9.6 [cm]
916.93 [g]
