Plate 8(4+4)M crystal bronze mirror - 21668.75

Pdf

21668.75
Wiring devices / Traditional wiring devices / EIKON / Cover plates

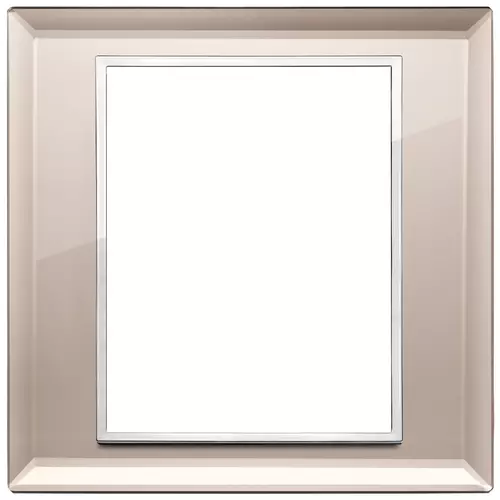

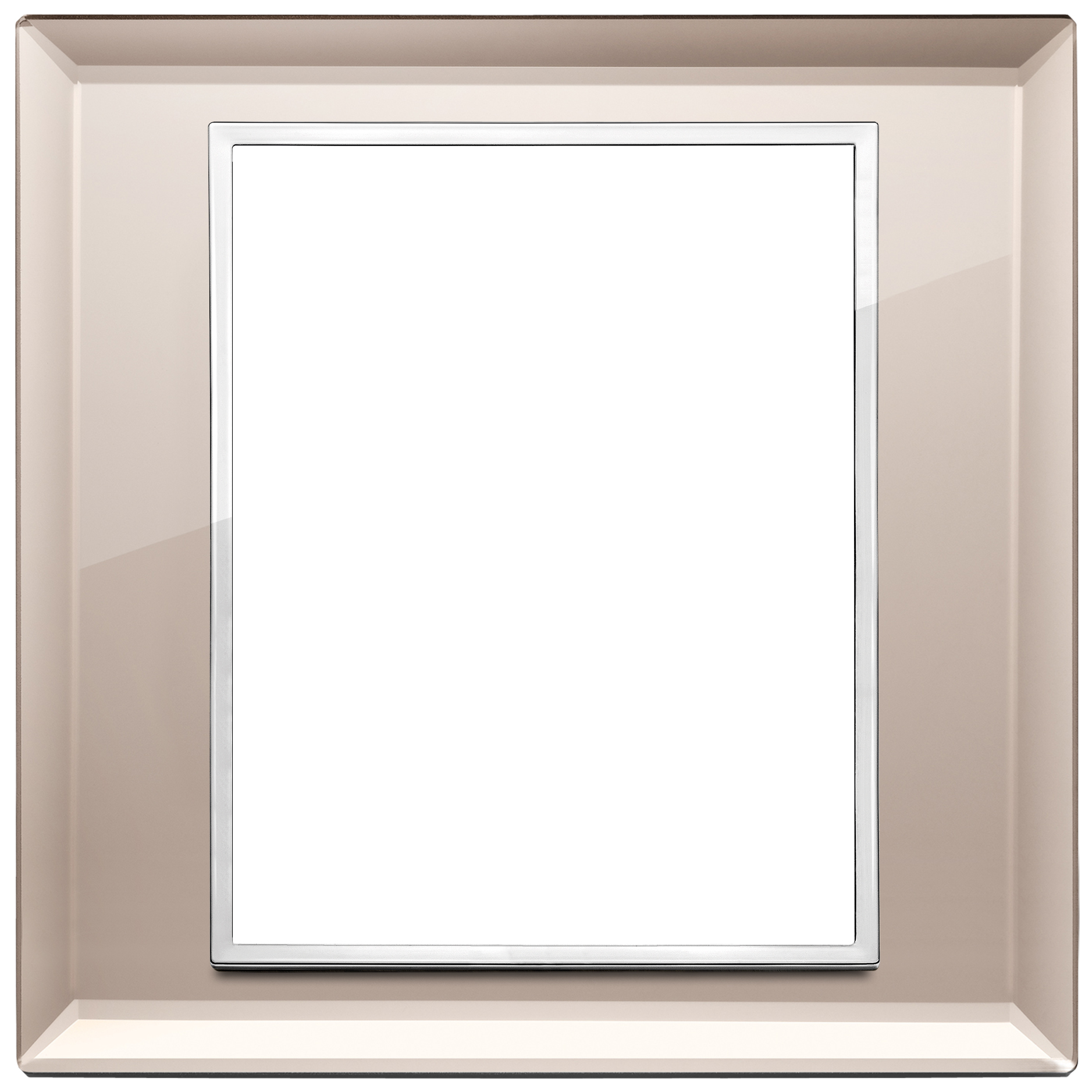

Plate 8(4+4)M crystal bronze mirror
8 (4+4)-module cover plate, bevelled crystal, bronze mirror

产品状态
3 - Active

您可能也感兴趣

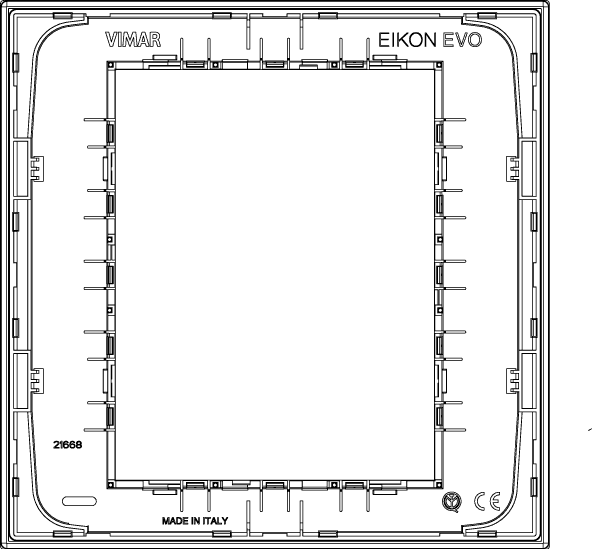

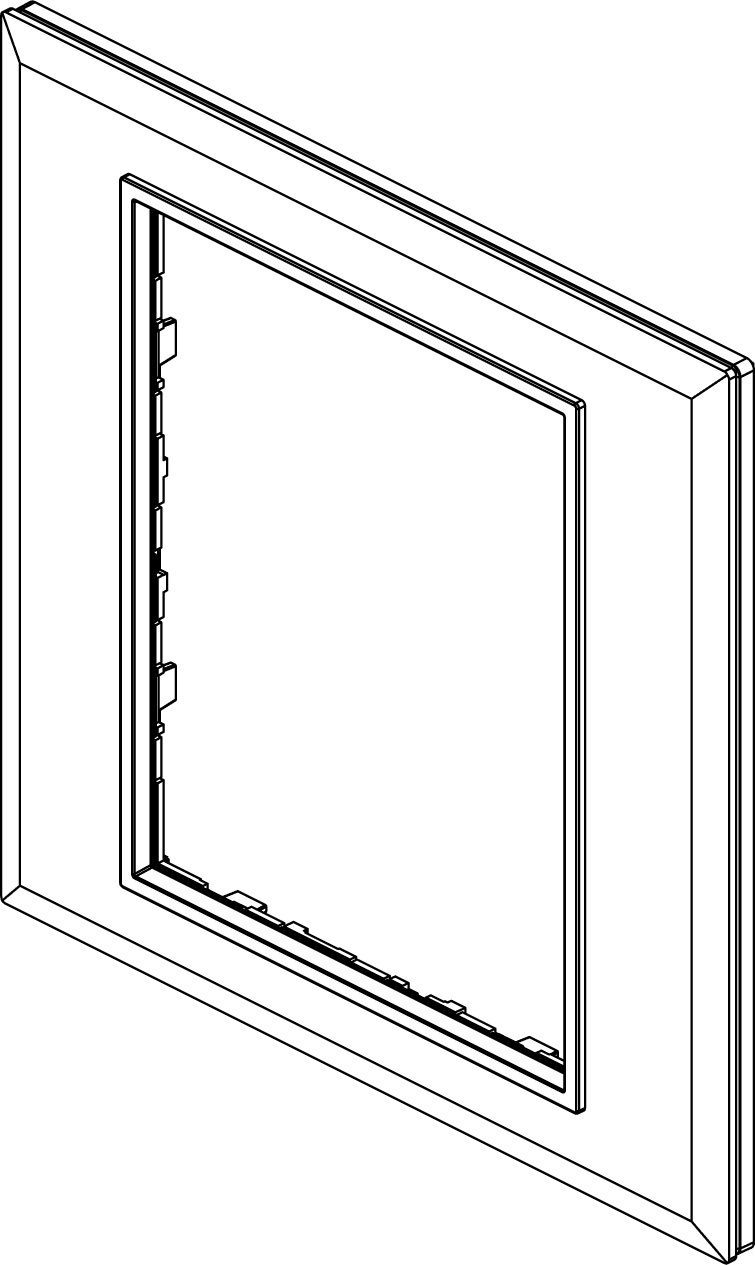

图纸

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
8
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
2
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
2
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Glass
Material quality
Glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Bronze
RAL-number (similar)
1035
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting

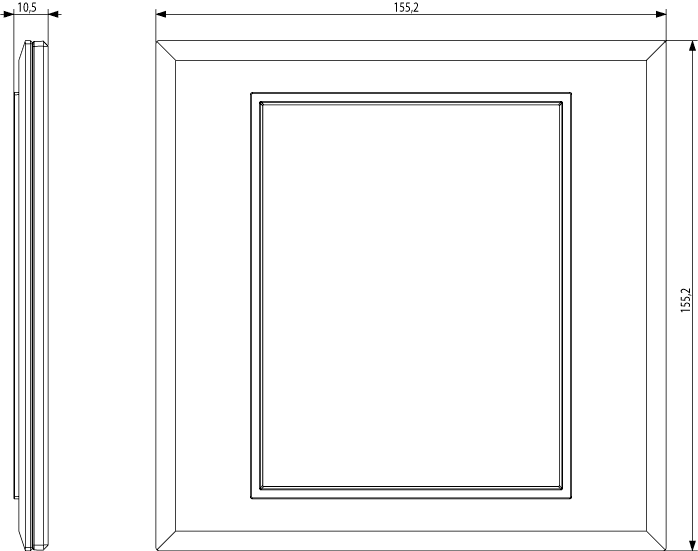

Width
155,20 mm
Height
155,20 mm
Depth
10,50 mm
Built-in width
155,20 mm
Built-in height
155,20 mm
Diameter bore hole (opening)
0 mm

29. QCERT - Colombia

最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352419872
1 NR
18.5x18.4x3.3 [cm]
253.2 [g]
