Πλάκα 2Mx2 Vintage χρυσός - 22672.2.82

Pdf

22672.2.82
Οικιακές σειρές / Παραδοσιακές οικιακές σειρές / EIKON / Πλάκες

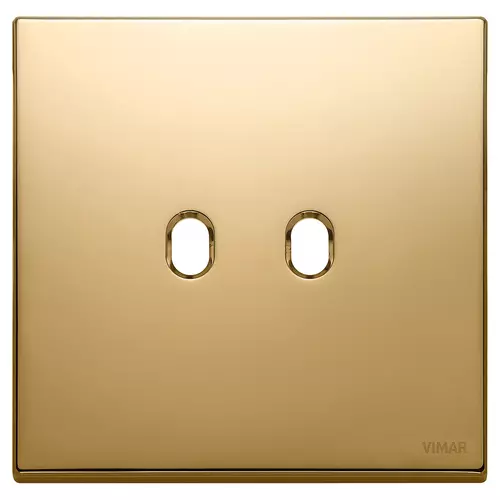

Πλάκα 2Mx2 Vintage χρυσός
Πλαίσιο 2Mx2 χρυσό Vintage

Κατάσταση Προϊόντος
3 - Προϊόν διαχειριζόμεν

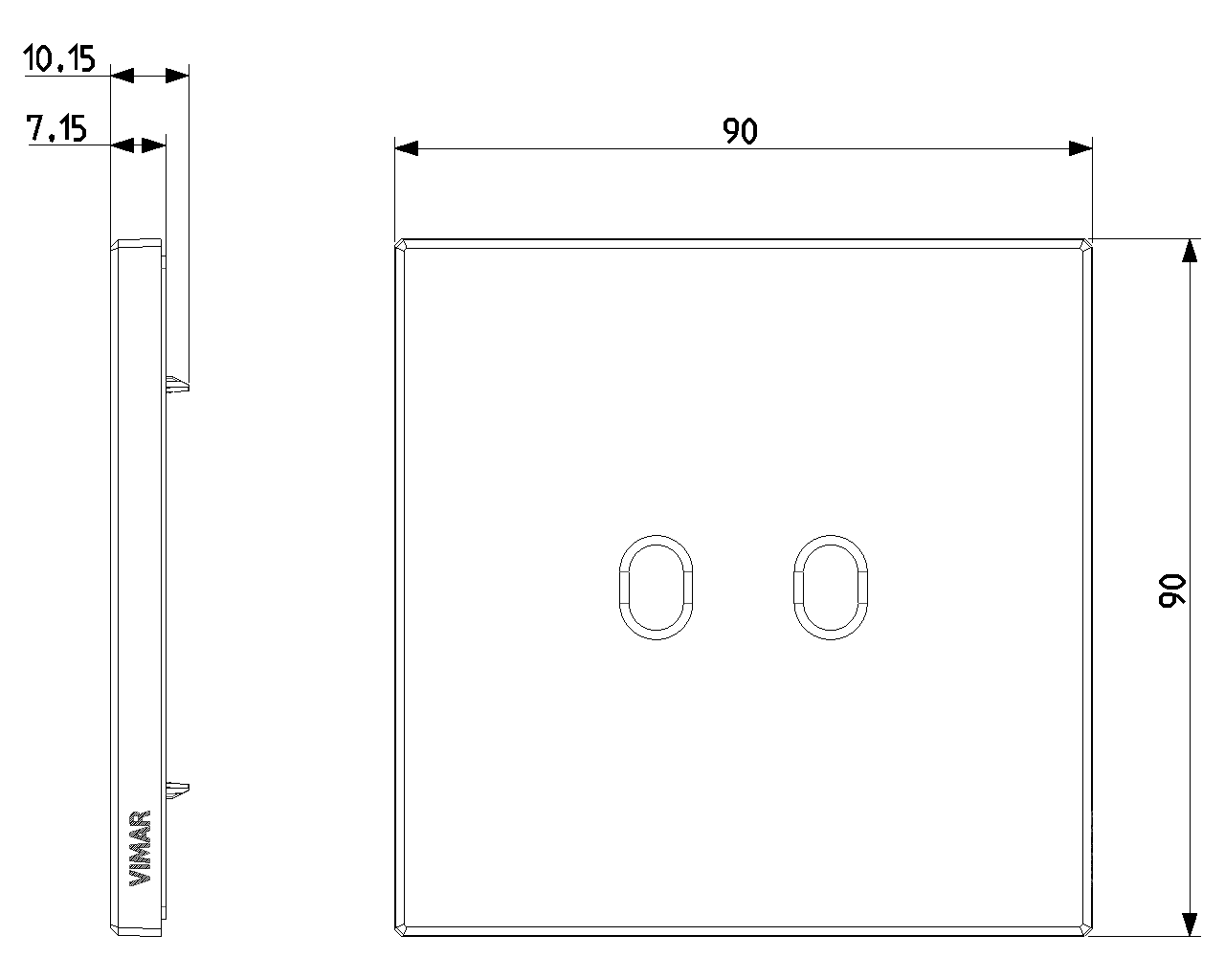

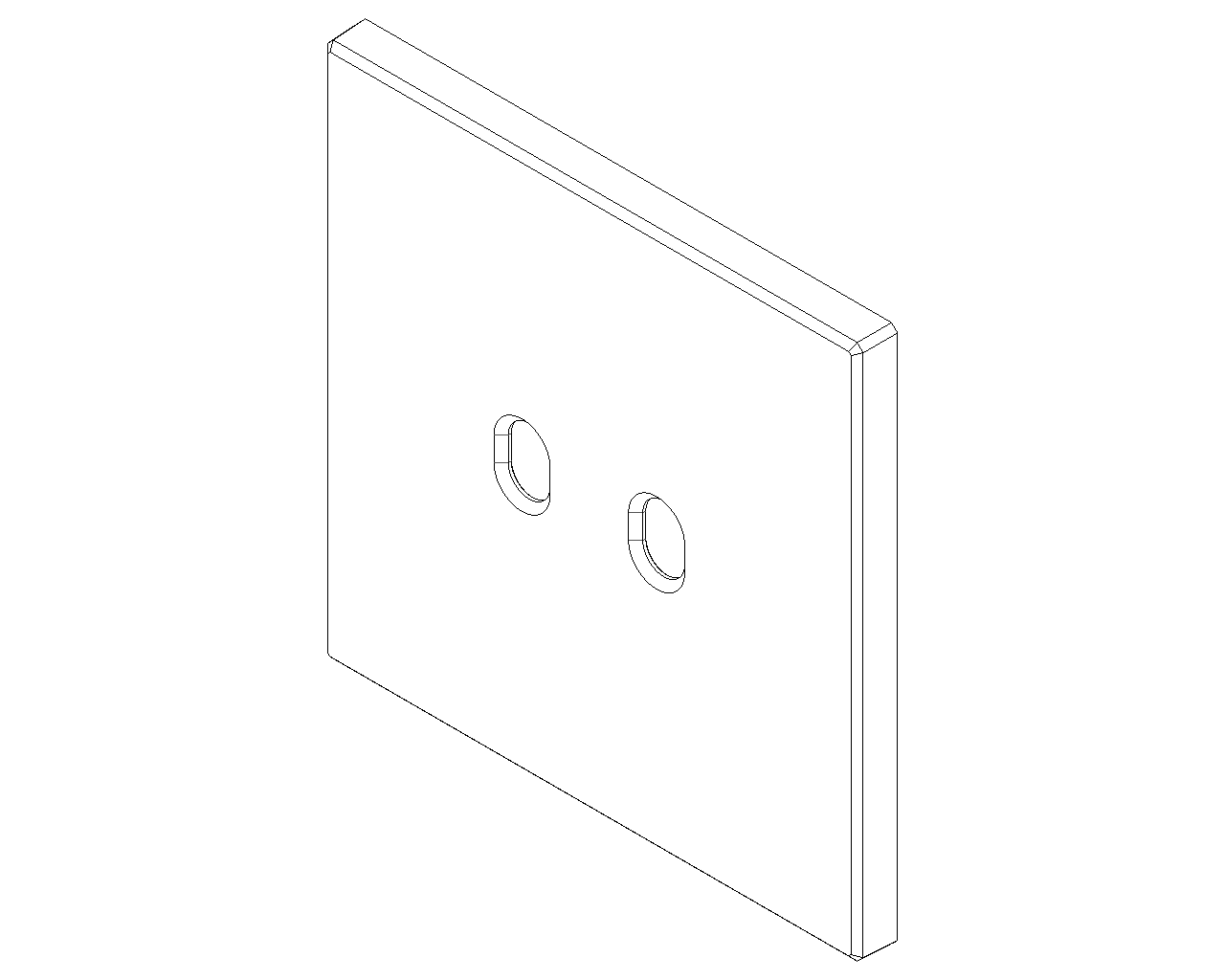

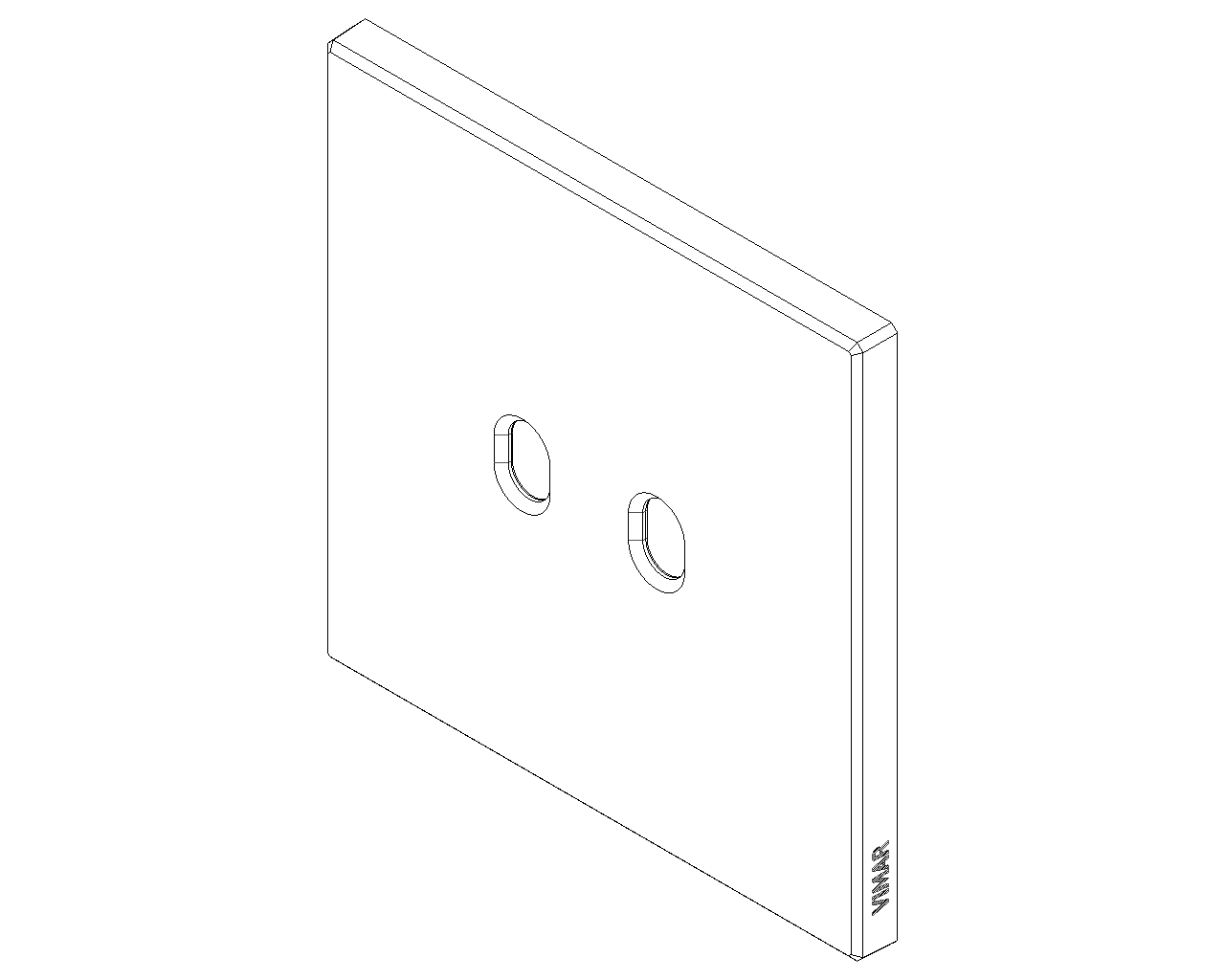

Σχέδια

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Gold
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
90,00 mm
Height
90,00 mm
Depth
7,15 mm
Built-in width
90,00 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm

00. Σήμανση CE - ΕE

Ελάχιστη ποσότητα παραγγελίας: 1 NR

Γραμμωτός κώδικας

Barcode Qty 1 NR
8007352621985
1 NR
9,5x9,5x1,4 [cm]
161,8 [g]
Barcode Qty 5 NR
8007352621992
5 NR
10,3x8x10,4 [cm]
855,2 [g]
